Help CenterDirect Factory Self-adhesive Label Die Cutting Machine Price
Related Products
-
High Quality Reeled Sticky PVC Shrink Wine Cap Making MachineUS$ 21,000 - 23,000MOQ: 1 Unit -
Self-adhesive Label Die Cutting Machine With Hot Stamping PriceUS$ 1,000 - 11,500MOQ: 1 Set
-
Blank or Plain Label Slitting and Die Cutting MachineUS$ 1,000 - 5,000MOQ: 1 Set
-
Adhesive Label Narrow Rolls Slitting Machine for Paper Plastic FilmUS$ 3,000 - 10,000MOQ: 1 Set
-
Adhesive Label Roll to Small Rolls Slitting MachineUS$ 3,000 - 10,000MOQ: 1 Set
WHY US?
The Quality We Provide - Outstanding Quality Assurance
Control from production process:
•We don’t send mechanical parts out for pretreatment, all process would be supervised under inspection
department, we have 4sets CNC processing machine.
•7 stages pretreatment meet international standard
•Baking at high temperature after power coating to ensure the paint finish
Control from material:
•All bolts and screws are of SS material
•Mild steel ERW rectangular tubes or sheets 1.2-2.0mm thickness, meet EU standard
•Plastic material is of ABS only. Durable and Sturdy. At least 10 years lifetime. Different colors for options.
Control from inspection:
•Process inspections after cold working, acid washing,powder coating and assembling
Final inspection before loading in random checking
The Service We Provide - We Take Care Of Your Order
Punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We respond your complain within 48hours.
Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We cooperate with customer to bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team
For machine services:
1.Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.We can train your staff to use new equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity in the condition of salary 80USD per day,also including the charge for transportation,accomodation,etc.
Characteristics:

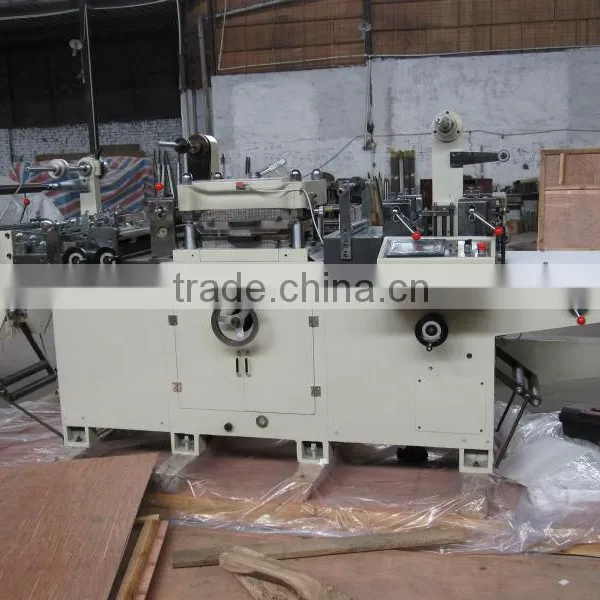

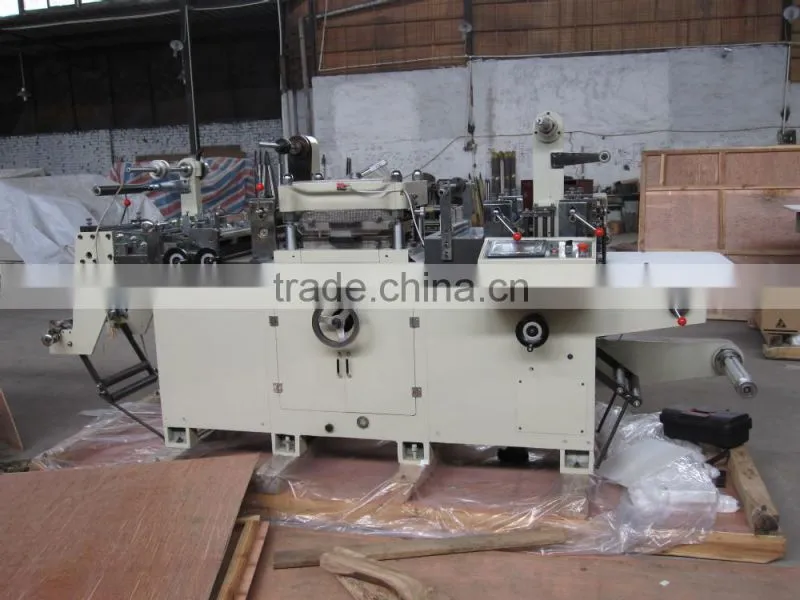

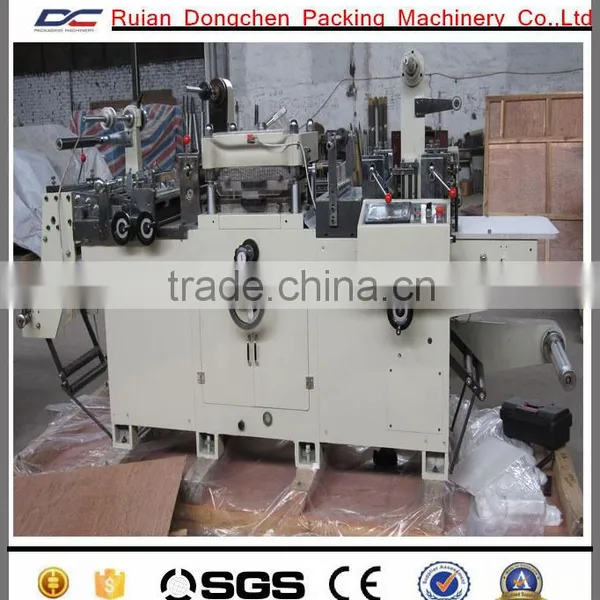

This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor. The three photoelectric eyes do the web guiding job. Die cutting, laminating, waste rewinding and sheeter (or rewinding) can be finished in one process. It is applicable to die cut free paper adhesive tape, polyester film trademark and laser anti-false trademark. It is an ideal equipment for flexo printing machine, continuous rotary printing machine. gravure printing machine and anti-false trademark die press machine and is also the most efficient equipment for label printing machinery company.
Standard configuration:
1 feeder,1 slicer,1 host,1 upper form borads for diecutting,1 lower form board for die cutting,Metal tooling.
Optional Configuration:
1. Hot stamping 2. punching 3. lamination
Advanced technology:
1. Big die cutting size: 300*350mm
2. four axis linakge, stable running
3. machine is equipped with auto circulation oil pump, transmission part can add oil automatically after machine start work.
Main Technical Variables:
Cutting speed |
20-200time/min |
Max.Unwinding |
450mm |
Max.Roll Width |
320mm |
Die Cutting Size |
300*350mm |
Orientation Precision |
±0.1mm |
Total Power |
3KW |
Power Voltage |
220V±10% |
Machine Weight |
2300kg |
Overall dimensions(L×W×H) |
3050×1200×1450mm |
Configuration:
Material pulling servo motor |
|
Inovance, Shenzhen |
Servo driver |
|
Inovance, Shenzhen |
Program controller |
FX1S-30MT-001 |
Panasonic, Japan |
Touch screen |
MT6056i |
Weinview, Taiwan |
Invertor |
|
Delta, Taiwan |
Web guiding photoelectric switch |
|
Hengwang, Ruian |
Tracking photoelectric switch |
KT6 |
SICK, Germany |
Main motor |
2.2KW |
Lichao, Shanghai |
Material feeding and rewinding motor |
|
Guangda, Rui’an |
Low voltage appliance |
|
Renmin or Chint, Wenzhou |
switch |
|
Schneider, France |
Cutting blade brake and clutch |
50N/M |
Steki, Taiwan |
