Specifications
plastic thermofroming machine1. Good for PS, PET,PVC, HIPS lid forming
2. PLC control
3. Punching frequency:15-30

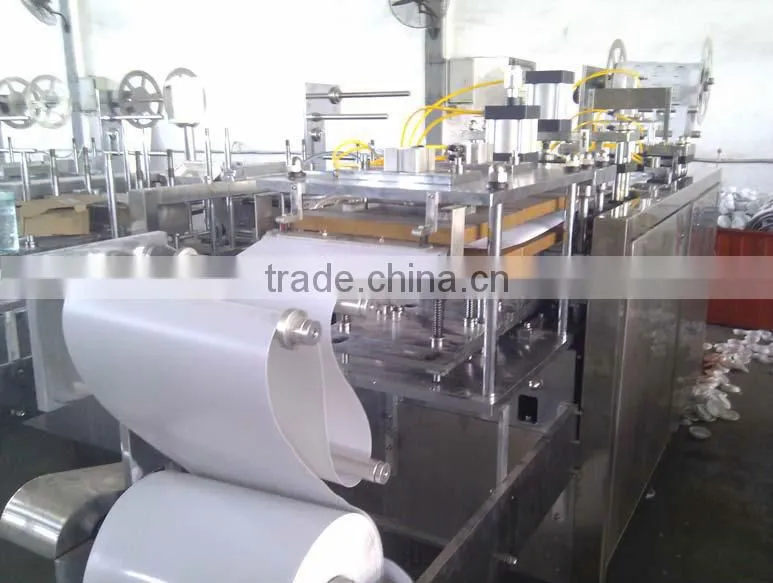

Disposable plastic thermofroming machine for cup lid /tray
PLC control Automatic plastic thermoforming machine for cup lid/tray
Characteristic:
1. This plastic forming machine is used for molding the plastic material as BOPS/HIPS/PS/PVC/PET
2. Used for the minitype soup spoon/ the cover of the dish such as the salver of medicine and coffee, the bottleneck of Coca-cola, tray ....
3. The machine integrates of electricity and optics the technology like: PC auto-controlling, transducer regulating, the piece of material heated up by temperature, molding by air-press to cutting the finished product, and the numbers of the products can input to the machine. The flow is in a high automatic fuction. It is configure the PLC computer control.
Main Technical Parameter
max forming area |
350×250mm |
max forming depth |
46mm |
punching frequency |
10-30time/min |
air pressure |
0.5-0.7mpa |
total power of eletric source |
380v 50hz 5kw |
m3/h |
≥0.22 |
weight |
1000kg |
dimension |
2960×750×1520mm |
Some Part of this Machine:
Mould:

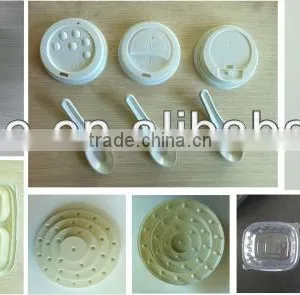

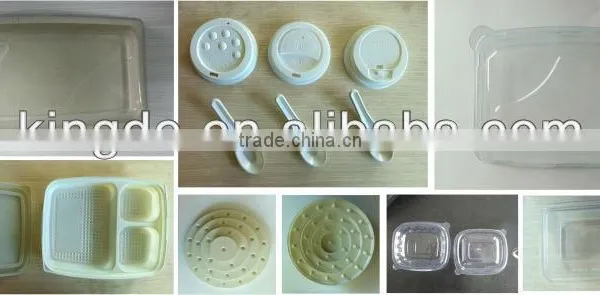

Samples:
We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
