Specifications
18.5KW special air compressor inverter twelding machine 3 phase zx7-200 mma dc inverter welder1.Current vector control
2CE

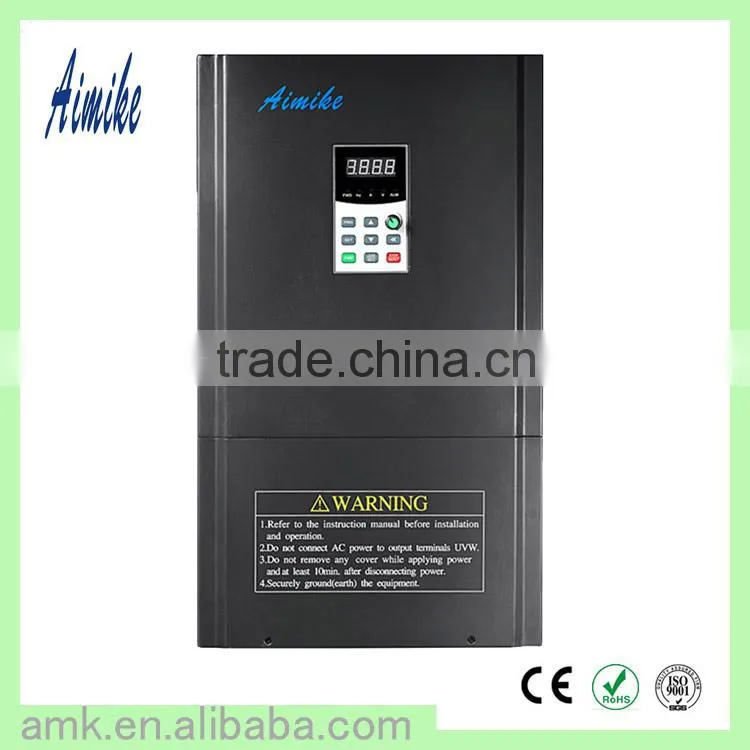

18.5KW special air compressor inverter twelding machine 3 phase zx7-200 mma dc inverter welder
AMK3800 series inverter is the 2nd generation of high performance current vector inverter researched and developed independently by our company. It has adopted fully new design concept and modular design idea. Compare with traditional inverters, no matter on performance, functions, reliability, maintainability and workability or other aspects, it has been improved essentially.
Specifications
1.Current vector control
2.Strict quality control system ISO9001 and test
3.IGBT Technology
4.LED and LCD display
5.CE and ROHS certificate
Specification of zx7-200 mma dc inverter welder 18.5KW inverter for air compressor
Place of Origin |
Guangdong, China (Mainland) |
Brand Name |
Aimike |
Model Number |
AMK3800-4T0185G |
Output Power |
18.5KW |
Output Type |
Triple |
Size |
236*242*390MM(W*D*H*) |
Weight |
11KGS |
Input Voltage |
380V |
Output Voltage |
0-380V |
Type |
DC/AC Inverters |
Output Frequency |
0-3000HZ |
Output Current |
39A |
Color: |
black |
Shell: |
metal |
Modules: |
integrated ICBT (Infineon & Fuji) |
Material: |
all components from international famous brand |
Adaptation motor power: |
0.75kw -- 630kw |
Delivery time |
1 day -- deliver faster |
Warranty |
1 year and responsible lifetime |
Voltage |
low voltage 380V |
Current: |
ac inverter |
Key feature
uCombines vector control and VF control technologies perfectly with creativity and introduces the idea of flux control.
uMultiple kinds of menu modes are convenient for parameter regulation of user.
uIntelligentialized motor rotation speed tracing technology can trace current rotation speed of the motor with quicker speed and implement fast tracing operation.
uUnique power source and EPS functions enable take one inverter as a variable-frequency power source or EPS for operation.
uIntelligent power saving function and electric quantity monitoring function can furthest reduce the energy consumption for motor operation.
uSPI interface and pen type standard MODBUS protocol
uWide input voltage,20% mutative is allowable
uPerfect protection function, Overvoltage over-current under-voltage overheat overload off load Losing phase(option)
uDirect LCD data display and LED work status display
uThe control core is based on 32-bit RISC single chip and speed is up to amazing 1.3DMIPS.
Working Principle
Aimike inverter generally consists of rectifier, filter, inverter driving circuit, protection circuit and a controller (MCU/DSP) and other parts. Firstly, when the current of single-phase or three-phase AC power through a rectifier and capacitor filter, it will form fixed amplitude DC voltage and put on the inverter, the output terminal of the inverter will obtain a pulse wave with certain shape, after uses the on-off control of inverter power element. By changing the width of rectangular pulse and inverter’s output frequency to control the amplitude of voltage and output frequency respectively so the the inverter can control output voltage and frequency at the same time that to meet the requirements of U/f Coordinated control. The advantage of PWM is to eliminate or suppress low order harmonic wave, and make the motor run at the voltage with approximate sine wave.
Application
1.Circulating pump, water supply pump, constant pressure water supply;
2.Energy-saving central air conditioning;
3.Oil injection pump, oil fields,
4.Energy-saving air compressor;
chanical, textile, chemical industry,
tallurgy, mining, pharmaceutical, ceramics, papermaking,,
7. plastics, printing, thermoelectric, food and other fields.
Picture for 30KW inverter for air compressor
Production Line
Test Machine
Application
COMPANY INTRODUCTION
Since established in 2004, Amica International Corporation Limited has grown into an internationally renowned inverter manufacturer after a decade of rapid and steady development.
Thanks of the industry's leading independent core technologies and sustainable development capability, we produce a series of inverter with good quality,such as General purpose inverters, Current vector inverter, Flux vector inverters, Fans special inverter, Pump inverter, Textile converter, Air compressor inverter, Injection molding machine special inverter.
Amike inverters have been widely used in wind turbines, pumps, air compressors, injection molding machines, winding machines, central air conditioning and other mechanical devices of textile, chemical industry, metallurgy, mining, pharmacy, ceramics, paper, oil, plastics, printing, heat, tobacco and food thanks it can achieve high efficiency save energy and improve the level of technology in the industry.
Aimike is always adhering to the operating principles of "to build brand by quality and develop market by technology" , always serve to create a more valuable product and provide better quality of service and has developed the power of AMK3100 universal frequency converter, AMK3200 frequency conversion machine, AMK3800 current vector inverter, AMK3500 flux vector inverter and AMK600 medium voltage inverter from 0.75kw to 630kw to meet the different needs of customers.
Meanwhile, independent intellectual property industry automatic drive control and advanced vector control technology made Aimike inverters passed ISO9001-2008 quality management system,get CE and Rohs certification, and the product quality management has in line with international standards.What’s more, Aimike has won the recognition of industrial areas with international standards and strict quality management system and perfect after-sales service system.
The company's marketing and service network covering all over the world. In the domestic, after-sales warranty Center has set up in major cities, at abroad, Aimike inverters has exported to more than 20 countries and reached a long-term and stable relationship of cooperation with overseas customers.
For several years, in the way of the research and development of inverter we work hard and struggle ahead, always adhere to the concept of “to the quality of life and innovation for the foundation”. Company will still put the national strategy of environmental protection and energy saving into practice,constantly develop more competitive products use our unique leading-edge technology, and to put Aimike into the international first-class brand in the field of inverter.
Personnel staff
Company&Office
Quality inspection certificate
Options
1.LKD Remote Keyboard Carrier
2.LKD Keyboard
3.Braking Resistor
4.Reactor
5.Network cable
Warranty
1 year warranty from the date of delivery and responsible lifetime. If the product is exceed warranty or damaged by transportation, improper operation, human element, force majeure,it is not under warranty.
Payment Terms
T/T in advance, L/C or Western Union
Minimum order
1 unit
Lead Time
1.Sample order will be delivered from our factory within 1-7 working days.
2.General orders will be delivered from our factory within 7-10 working days.
3.Big orders will delivered from our factory within 30 working days at most.
Maintenance
Daily Caring and Maintenance
The changes of inverter using environment, such as the influences of temperature, humidity and smog, and aging and other factors of inverter internal component may lead to various faults of inverter. Therefore, in storage and using process, it must take daily inspection and regular maintenance for the inverter.
Daily Maintenance
When the inverter is started normally, please confirm the following items:
(1) Whether the motor has abnormal noise and vibration
(2) Whether the inverter and motor has abnormal heat radiation
(3)Whether the environment temperature is too high
(4)Whether the load current value is the same with past values
(5)Whether the cooling fan of inverter is in normal operation
Regular Caring and Maintenance
1 Regular Maintenance
When the inverter is taken regular maintenance and inspection, it must cut off the power. After the monitor has no display and the indicators of main circuit power are off, it can take inspection. The inspection contents are as in Table 1.
| Inspection Item | Inspection Content | Countermeasures |
|
Main circuit terminal, control loop terminal screws |
Whether it is loose | Screw up with screwdriver |
| Air-cooling fin | Whether the airway is blocked by dust and foreign matters | Blow with 4-6kgcm2 pressure dry compressed air |
| Printed circuit board | Whether the surface has oil contamination and attachment of conductor scraps. Whether the copper foil is corrosion phenomena. | Clean the surface foreign matters of PCB board |
| Cooling fan | Whether the operation is normal, whether there is abnormal noise and abnormal vibration, and accumulated running time is up to more than 20,000hours | Replace cooling fan |
| Power element | Whether it has dust and attachment of oil contamination and other foreign matters | Clean foreign matters |
| Electrolytic capacitor | Whether it has leakage and bubbling phenomena, and the explosion-proof value has protrusion | Replace the electrolytic capacitor |
Regular Caring
To make the inverter operate normally for a long period, it must take caring and maintenance for the service life of internal electronic components of inverter. The service life of internal electronic components of inverter is varied due to different using environment and using conditions, as in Table 8-2. Caring period of inverter is provided only for reference.
Component Name |
Standard Replacement Years |
Cooling fan |
2-3 years |
Electrolytic capacitor |
4-5 years |
Printed circuit board |
5-8 years |
Fuse |
10 years |
Using conditions of above replacement time for inverter are:
(1)Environment temperature: annual average 30℃
(2)Load coefficient: below 80%
(3) Running time: less than 12 hours per day
Basic Operation Distribution Diagram
Distribution of Main Circuit Terminals
What is a VFD?
A Variable Frequency Drive (VFD) is a type of motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor. Other names for a VFD are variable speed drive, adjustable speed drive, adjustable frequency drive, AC drive, microdrive, and inverter.
Frequency (or hertz) is directly related to the motor’s speed (RPMs). In other words, the faster the frequency, the faster the RPMs go. If an application does not require an electric motor to run at full speed, the VFD can be used to ramp down the frequency and voltage to meet the requirements of the electric motor’s load. As the application’s motor speed requirements change, the VFD can simply turn up or down the motor speed to meet the speed requirement.
What's a VFD consist of?
Generally, variable frequency drive contains two components: rectifier and inverter. The rectifier converts incoming AC power to DC power, then the inverter converts DC power to the desired frequency AC power. In addition to these two parts, variable frequency drive may also contain transformer and battery. Wherein the transformer changes the voltage and isolates input/output circuit, the battery compensates energy loss inside the VFD drive circuit.
How does a VFD work?
A VFD receives the AC power supply from the AC mains source and outputs a modulated power signal to the NovaTorque motor in a wave pattern known as Pulse Width Modulation (PWM). This power signal provides both speed control and electronic commutation.
Why should I use a VFD?
Reduce Energy Consumption and Energy Costs
If you have an application that does not need to be run at full speed, then you can cut down energy costs by controlling the motor with a variable frequency drive, which is one of the benefits of Variable Frequency Drives. VFDs allow you to match the speed of the motor-driven equipment to the load requirement. There is no other method of AC electric motor control that allows you to accomplish this.
Electric motor systems are responsible for more than 65% of the power consumption in industry today. Optimizing motor control systems by installing or upgrading to VFDs can reduce energy consumption in your facility by as much as 70%. Additionally, the utilization of VFDs improves product quality, and reduces production costs. Combining energy efficiency tax incentives, and utility rebates, returns on investment for VFD installations can be as little as 6 months.
Increase Production Through Tighter Process Control
By operating your motors at the most efficient speed for your application, fewer mistakes will occur, and thus, production levels will increase, which earns your company higher revenues. On conveyors and belts you eliminate jerks on start-up allowing high through put.
Extend Equipment Life and Reduce Maintenance
Your equipment will last longer and will have less downtime due to maintenance when it’s controlled by VFDs ensuring optimal motor application speed. Because of the VFDs optimal control of the motor’s frequency and voltage, the VFD will offer better protection for your motor from issues such as electro thermal overloads, phase protection, under voltage, overvoltage, etc.. When you start a load with a VFD you will not subject the motor or driven load to the “instant shock” of across the line starting, but can start smoothly, thereby eliminating belt, gear and bearing wear. It also is an excellent way to reduce and/or eliminate water hammer since we can have smooth acceleration and deceleration cycles.
The input frequency of variable frequency drive is 50Hz or 60Hz?
Rated input frequency of variable frequency drive is 50Hz.Almost input frequency of variable frequency drive which made in China is 50Hz.
Can this variable frequency drive make AC input,DC output come ture?
The current chage method is AC-DC-AC that means the input is AC and output is also AC.
Can thia variable freuqency drive step up or step down the voltage?
The input voltage is 220V+/-20% or 380V+/-20%,and the output voltage is 0-220V or 0-380V.If you want setp up or step down the voltage,you can buy a voltage transformer and matched with our products to change this voltage.
The other power for your choose
20KW inverter for air compressor 30KW inverter for air compressor 4KW inverter for air compressor
Should you need more information, Pls feel free to contact us as following:
Shenzhen Aimike Electric Co.,Ltd.
The official website:
Sales hotline:(0086)755-84877366
Mobile phone:(0086)13828844599
Fax number:(0086)755-89641102
Skype:amk84877366
Company address:West Of 4F,Bldg.A6, Area A, Yinlong Tech. Industrial Zone, No.292, Shanshan Rd.,Longdong, Longgang Town
