Home > Electrical & Electronics > Battery, Storage Battery & Charger > Storage Battery > 12v12Ah Sealed Lead Acid(SLA) Rechargeable Battery for Electric Bicycle

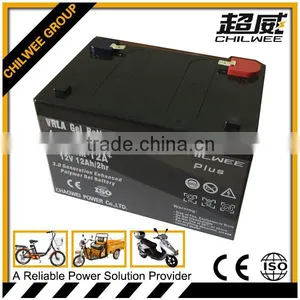

12v12Ah Sealed Lead Acid(SLA) Rechargeable Battery for Electric Bicycle
Negotiable
MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Chilwee
Model Number:
6-DZM-12+
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ninibo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12v30Ah Sealed Lead Acid(SLA) Rechargeable Battery for Electric BicycleNegotiableMOQ: 200 Pieces -
12v12Ah PLUS Sealed Lead Acid(SLA) Maintance Free Battery for Electric BikeNegotiableMOQ: 200 Pieces
-
12v20Ah PLUS Sealed Lead Acid(SLA) Maintance Free Battery for Electric BikeNegotiableMOQ: 200 Pieces
-
12v21Ah@2HR Long Life Lead Acid Electric Bike BatteryNegotiableMOQ: 200 Pieces
-
12v12.5Ah@2HR Deep Cycle Lead Acid Electric Bike BatteryNegotiableMOQ: 200 Pieces
Place of Origin
Zhejiang, China
Brand Name
Chilwee
Model Number
6-DZM-12+
Type
Other, Rechargeable battery
Nominal Voltage
12V
Size
Other, 99*97*151mm
Nominal Capacity
12AH/2HR
Product Description
Chilwee Plus Series VRLA Gel Battery is designed based on DZM series supported with Direct CastWelding Technology, which enables the battery with an excellent large current discharge capability and larger capacity. The Chilwee Plus Series provides longer voyage and stronger power for motive power applications, i.e. electric bicycles, electric tricycles, electric motocycles and other device require DC power source.
1. Electric Bicycles
2. Electric Tricycles
3. Electric Scooters
4. UPS
5. Other DC power system
| FEATURES | |||||||||
| Non-Cadmium Design, Environment-friendly: Chilwee Battery has adopted internationally leading technology - container formation non-cadmium production technology, which is in the leading position in the industry. It helps to save energy 28.5%, save water 90%, and non-discharge of waste water. | |||||||||
| Super Long Voyage Ability: The discharge time of Chilwee battery is prolonged. Active additive has been added in postive plates, so as to good consistency of the formated active material. This enables the battery has high charge/discharge efficiency, and the power output is elevated. | |||||||||
| Strong Motive Power: Super thin plate design is adopted to increase the area of the plates macroscopic electrochemical reaction, which enables the battery has excellent large current discharge ability. Adopting cast-weld process to reduce the battery's internal resistance, and it improves battery charging acceptance capability. Battery's charge/discharge efficiency is high. | |||||||||
| High Durability: The Chilwee battery has excellent cycle life which can reach 600 cycles @ 80% DOD. The battery banks has good consistency. Enhanced ABS material has been adopted on battery container and lid, and the battery is well sealed to prevent leakage. | |||||||||
| High Reliability and Safety: Improved negative material prescription and increased micropoles structure at negative helps to improve a lot on low temperature charge/discharge performance. Low water loss rate, high temperature resistance, and the pressure value of Open/Close safety valve is accurate to prevent battery bulging. Safety valve and acid filter can efficiently prevent sparks splashed into battery to ensure safe operation. | |||||||||
| SPECIFICATION | |||||||||
| Nominal Voltage (V) | 12V | ||||||||
| Open Circuit Voltage (V/Block) | 13.1V - 13.45V | ||||||||
| Number of Cells (Per Block) | 6 Cells | ||||||||
| Rated Capacity (Ah, 25℃) |
2h rate (to 1.75V/Cell) | 12.5Ah | |||||||
| 3h rate (to 1.75V/Cell) | 13.5Ah | ||||||||
| 5h rate (to 1.80V/Cell) | 14.5Ah | ||||||||
| 20h rate (to 1.85V/Cell) | 16.5Ah | ||||||||
| Nominal Weight (Kgs) | Approx. 4.5 Kgs | ||||||||
| Dimension (L X W X H, Total Height. mm) | (151mm±2) X (99mm±2) X (97mm±2), (103mm±2) | ||||||||
| Container Material | Enhanced ABS | ||||||||
| Charge Voltage | Float (V/Block) | 13.50V - 13.80V | |||||||
| Cycle (V/Block) | 14.50V - 14.80V | ||||||||
| Maximum Discharge Current (A) | 105A (5s) | ||||||||
| Maximum Charge Current (A) | 2.0 A | ||||||||
Packaging & Shipping
Paper carton for per bank battery, Then stripped with plstic pallet.
7-10 Days
Our Services
Chilwee products have already been distributed in all over world, and local service facilities are being deployed in each region. Chilwee is committed to provide complete services including technology training, warranty replacement service, fault analysis trouble-shooting, battery maintenance service and battery disposal service, etc.
