JHN1 OBVERSE GENERAL TERMINAL BLOCKS
US$ 0.58 - 0.63
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JINH GENERAL TERMINAL BLOCKS
Model Number:
JHN1-2.5/PE GENERAL TERMINAL BLOCKS
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Feed-through Modular Terminal Block, Spring Cage ConnectionUS$ 0.72 - 0.92MOQ: 1000 Pieces -
TK Series TEND Type Terminal Blocks Wire ConnectorsUS$ 0.06 - 0.1MOQ: 100 Pieces
-
TK Combined Movable Terminal BlockUS$ 0.29 - 0.35MOQ: 10000 Pieces
-
TK Combined Movable Terminal BlockUS$ 1.02 - 1.2MOQ: 500 Pieces
-
TK Combined Movable Terminal BlockUS$ 0.82 - 1MOQ: 10000 Pieces
Place of Origin
Zhejiang, China
Brand Name
JINH GENERAL TERMINAL BLOCKS
Model Number
JHN1-2.5/PE GENERAL TERMINAL BLOCKS
Number of Contacts
1 - 10
Conductor Size
Other, 26-12 AWG
Type
Spring

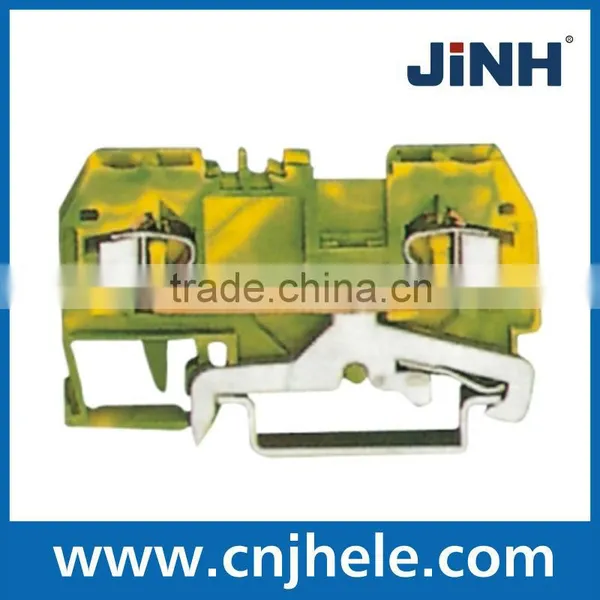

JHN1 OBVERSE GENERAL TERMINAL BLOCKS
JHN1-2.5/PE
Ground modular terminal block, Type of connection: Spring-cage connection
Cross section: 0.08 mm - 2.5 mm, AWG 26 - 12,
Width: 5 mm, Color: green-yellow, Mounting type: TH 35/7.5
General
Number of levels: 1
Number of connections: 2
Color: green-yellow
Insulating material: PA
Inflammability class acc. to UL 94: V0
Dimensions
Width: 5 mm
Length: 53 mm
Technical data
Rated voltage: 800V
Rated current: 20A
Connection in acc. with standard: IEC 60947-7-2
Connection data
Type of connection: Spring-cage connection
- Other types of spring terminals: JHN1-1.5/PE, JHN1-2.5/PE, JHN1-4/PE, JHN1-6/PE, JHN1-10/PE, JHN1-16/PE
