Help CenterASTM B348 Titanium Rod
Related Products
Specifications

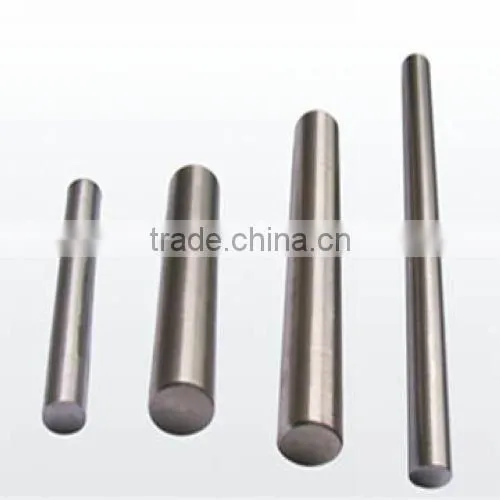

ASTM B348 titanium rodMaterial: Gr1,Gr2,Gr5
Dia : 2.0mm~ 250mm L: 1000mm ~ 6000 mm
Delivery time:7days
1 Type ASTM B348 titanium rod
2 Standards ASTM B348 , AMS 4928 , ASTM F136 , ASTM F67
3 Material Grade GR1 ,GR2, GR3, GR4, GR5 ,GR7 ,GR9 ,GR12, GR23, 6AL4VELI
4 Diameter 2.0 mm~250 mm
5 Length 1000-6000mm
6 Certification ISO9001:2000
7 Density 4.51g/cm3
8 Performance Low density ,high specific strength , high corrosion resistance ,
good thermal stability and plasticity
Technical Specifications of titanium bar
|
Grade
|
Chemical Composition(<%) |
||||||||
|
Ti |
AL |
V |
Fe |
C |
N |
H |
O |
Other , max |
|
Grade 1 |
Blance |
|
|
0.20 |
0.08 |
0.03 |
0.015 |
0.18 |
0.4 |
Grade 2 |
Blance |
|
|
0.30 |
0.08 |
0.03 |
0.015 |
0.25 |
0.4 |
Grade 3 |
Blance |
|
|
0.30 |
0.08 |
0.05 |
0.015 |
0.35 |
0.4 |
Grade 4 |
Blance |
|
|
0.50 |
0.08 |
0.05 |
0.015 |
0.40 |
0.4 |
Grade 5 |
Blance |
5.5~6.75 |
3.5~4.5 |
0.40 |
0.08 |
0.05 |
0.015 |
0.20 |
0.4 |
Grade 7 |
Blance |
|
|
0.30 |
0.08 |
0.03 |
0.015 |
0.25 |
0.4 |
Grade 9 |
Blance |
2.5~3.5 |
2.0~3.0 |
0.25 |
0.08 |
0.03 |
0.015 |
0.15 |
0.4 |
Grade 12 |
Blance |
|
|
0.20 |
0.08 |
0.03 |
0.015 |
0.18 |
0.4 |
|
Grade |
Mechanical Properties(>%) |
|||||
|
Tensile Strength (min) |
Yield strength (0.2 % offset) |
Elongation (Min , %) |
Reduction of Area (Min , %) |
|||
Ksi |
Mpa |
Ksi | Mpa |
|||
Grade 1 |
35 |
240 |
25 |
170 |
24 |
30 |
Grade 2 |
50 |
345 |
40 |
275 |
20 |
30 |
Grade 3 |
65 |
450 |
55 |
380 |
18 |
30 |
Grade 4 |
80 |
550 |
70 |
483 |
15 |
25 |
Grade 5 |
130 |
895 |
120 |
828 |
10 |
25 |
Grade 7 |
50 |
345 |
40 |
275 |
20 |
30 |
Grade 9 |
90 |
620 |
70 |
483 |
15 |
25 |
Grade 12 |
70 |
483 |
50 |
345 |
18 |
25 |
