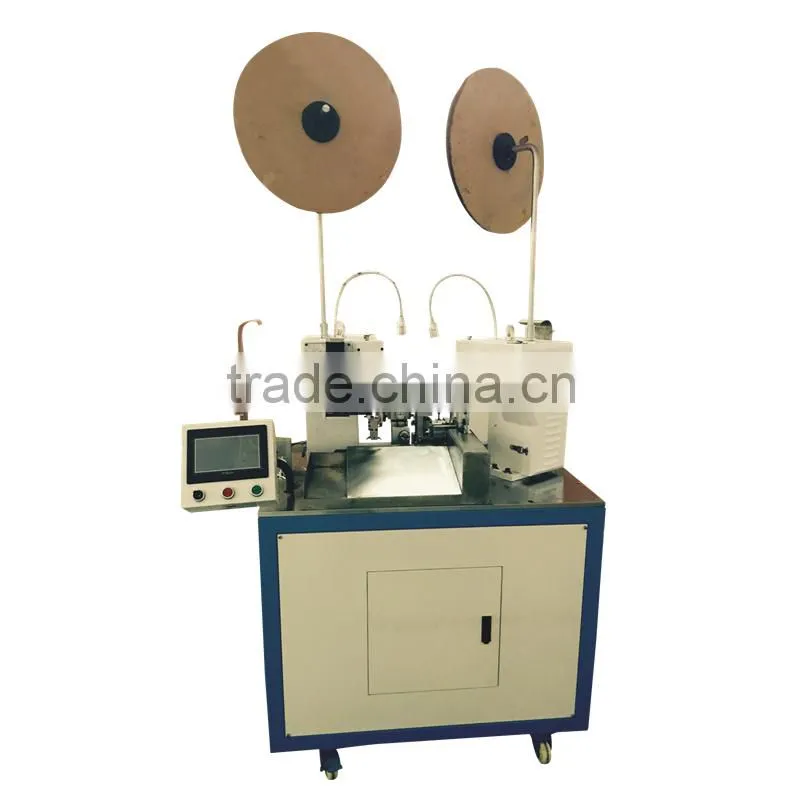

BX-180 Double Automatic Terminal Machine
US$ 10,999 - 19,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YICHUAN
Model Number:
BX-180
Payment & Shipping
Payment Methods:
Port of Shipment:
SEKOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bx-140 Automatic Tape Winding MachineUS$ 5,999 - 8,999MOQ: 1 Set -
BX-160 Automatic Beat Terminal And Soldering MachineUS$ 10,999 - 26,999MOQ: 1 Set
-
BX-230 Automatic Wire Labeling MachineUS$ 7,999 - 18,999MOQ: 1 Set
-
Crimping ToolsUS$ 200 - 200MOQ: 1 Set
-
Semi Automatic Terminal and Wire Crimping MachineUS$ 1,500 - 3,000MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
YICHUAN
Model Number
BX-180
Usage
Crimping
BX-180 Double Automatic Terminal Machines(Normal)
Function
This machine can realize double stripping and terminal. single end terminal or semi-stripping.
Equipment Features
1. The machine uses PLC controller with full stepper motor control.2.The design is simple, compact, and practical.
3. using a full PC-style digital adjustment, making it more rapid and efficient to replace product.
4.all other requirements can be equipped according to customer
Function Parameter
1.Power:AC220V 50/60HZ2.Power:2500w
3.The pressure focused on:1.5T/can be customized according to customer requirements.
duction efficiency:3500pcs(length within 200mm)
5.wire processing length:45mm-9999mm, tangential cut length precision1mm+0.1ï¼…*.
6.Stripping Length:0mm-12mm
7.wire specification wire AWG18-AWG28, other specifications can be customized.
8.the air pressure:4.5-6kgf(need to use clean air)
9. Put Line means:According to customer product line with normal playback devices,other special requirements can be customized.
10. the detection device: Pressure testing, without wires,tie detection.presence or absence of the terminal crimping detection
11. the device size:1000*700*1500mm excluding projecting portions.
12. Weight:260KG
13.take-up devices optional according to customer request.(1.5m-10m)
ure sensor:optional according to customer request.
