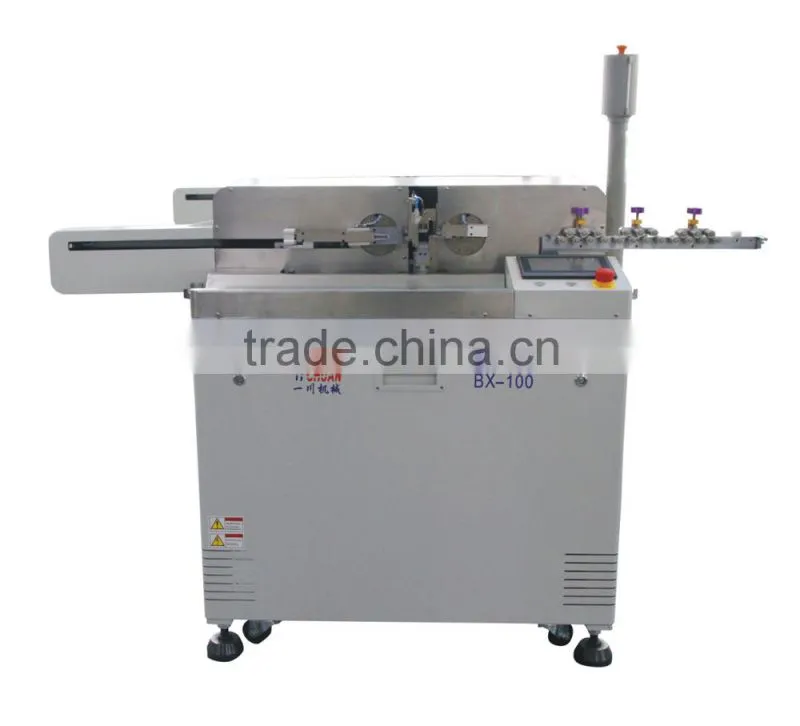

Help CenterAutomatic Wire Twisting and Soldering Machine
Related Products
-
Automatic Cable Wire Stripping MachineUS$ 1,450 - 3,500MOQ: 1 Set -
BX-260 Strip Cutting MachineUS$ 1,350 - 3,500MOQ: 1 Set
-
Fiber Cutting MachineUS$ 12,700 - 26,000MOQ: 1 Set
-
Cable MachineUS$ 10,700 - 27,900MOQ: 1 Set
-
Automatic Electric Cable Wire Terminal Crimping MachineUS$ 8,333 - 13,700MOQ: 1 Set
Equipment Featurs
1. The machine uses a dedicated SBC developed with the servo motor control, so that cable, Stripping,twisting,tinnning and other locations more accurate and stable.
2.The pneumatic components used are impoted brands,making equipment more durable and smooth.
3. using a full PC-style digital adjustment, making it more rapid and efficient to replace product.
4.all other requiremens can be equipped according to customer
Function Parameter
1.Power:AC220V 50/60HZ 2.Power:3000w
3.The pressure focused on:1.5T/can be customized according to customer requirements.
ducction efficiency:1200pcs/h *N(N= the numbers of electric wires, length within 200mm)
5.wire processing length:10mm-550mm, tangential cut length precision1mm+0.1 %*. other lengths can be customized
6.Stripping Length:ends0mm-10mm other lengths can be customized 7.wetting Length:ends0mm-10mm,can point dip or half stick.
8.wire specification:wire AWG16-AWG22 or AWG22-AWG30,other specifications can be customized.
9.the air pressure:4.5-6kgf(need to use clean air)
10. the detection device: Pressure testing, without wires,tie detection.
11.the device size:1700*700*1300mm including projecting portions.
12.Weight:280KG
Device Function
The machine can realize 2-10 wires simultanously or 2-15P and two lines or cable stripping,twisting or tinning ends semi-stripping and other functions
