Help CenterSD to SDI HD to SDI Over Coax Repeater and Splitter
Related Products
-
8 Input 8 Output SD/ HD/ 3G to SDI Repeater and Splitter Support All the SDI FormatNegotiableMOQ: 1 Piece -
PWAY SD to SDI HD to SDI 3G to SDI 1 to 8 Splitter and Repeater 1080P NTSC PALNegotiableMOQ: 1 Piece
-
PWAY 1x2 SD to SDI HD to SDI 3G to SDI Repeaters Amplify ExtenderNegotiableMOQ: 1 Piece
-
Pway SD to SDI HD to SDI Over Coax Repeater and SplitterNegotiableMOQ: 1 Piece
-
SD/HD/3G to SDI RepeaterNegotiableMOQ: 1 Piece
Specifications
1. SDI Standard: HD-SDI, SD-SDI2. Data Rates: 270Mbps/1.485 GbpsSignal Type: SMPTE 292M, SMPTE 259M
Introduction

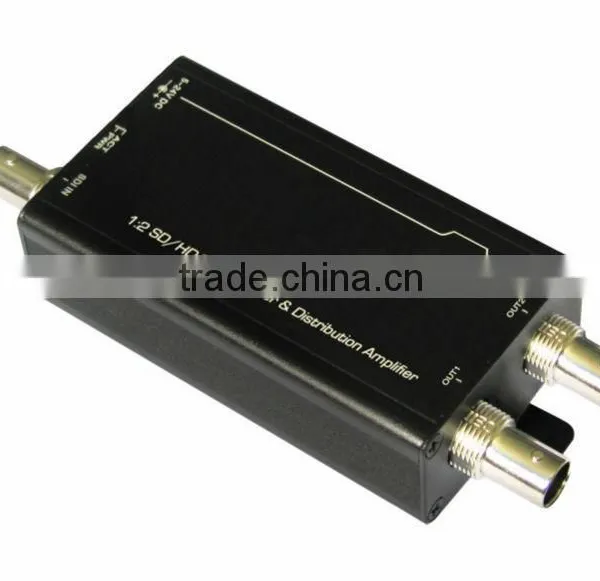

PW-SS5102H SD/HD-SDI 1:2 Repeater& Distribution Amplifier is a 1 to 2 repeater and distribution amplifier with Re-clocking function. It receive one SDI input and perfectly duplicates it. Then it re-transmits two SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI or HD-SDI video source to two HD-SDI or SD-SDI display at the same time and takes one input then re-clocks and equalizes the signal and distributes it to two identical outputs.
Features
l SDI Standard: HD-SDI, SD-SDI
l Data Rates: 270Mbps/1.485 GbpsSignal Type: SMPTE 292M, SMPTE 259M
l Two separately buffered outputs
l Cable equalization (Beldon 1694A) retiming and signal
l Re-clocking function capability – unlimited repeater connection
l Dual color LED indication of nput locik and rate
l Pass all ancillary data
l 5V~24V DC

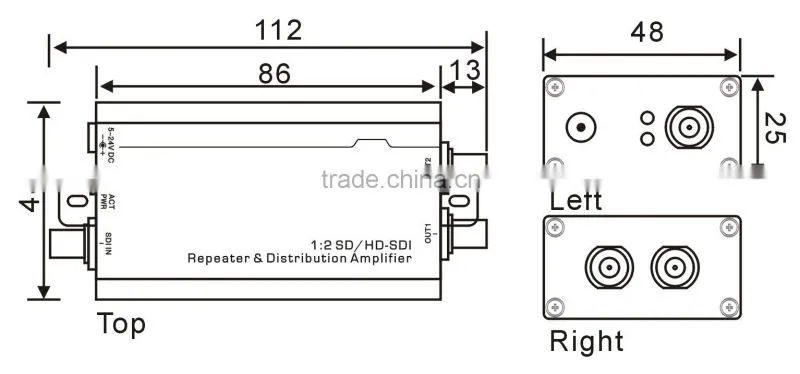

Panel size
Specifications
Model |
PW-SS5102H HD-SDE-122R |
Re-clocking Function |
Yes |
SDI Standards |
SD-SDI, HD-SDI |
HD/SD-SDI Detection |
Auto |
Supported Protocols |
SMPTE 259M SMPTE 292M SMPTE 344M |
Data Rates |
270 / 1483 / 1485 Mbps |
V ideo Support |
SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29.97Hz/30Hz 3G:1080p @ 50Hz / 59.94Hz / 60Hz |
SDI Signal Type |
SMPTE-292M, SMPTE-259M |
Output Impedance |
75 ohms |
|
Max. Distance |
Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft |
Audio Support |
Yes |
Input |
1x BNC [SDI] |
Output |
2x BNC [SDI] |
BNC Connector |
75 ohms inter-locked socket |
Power Consumption |
2~4 Watts |
Relative Humidity |
20~90% RH (no condensation) |
Dimension |
112×48×25mm/4.40×1.89×0.98 inches |
Weight |
120g |

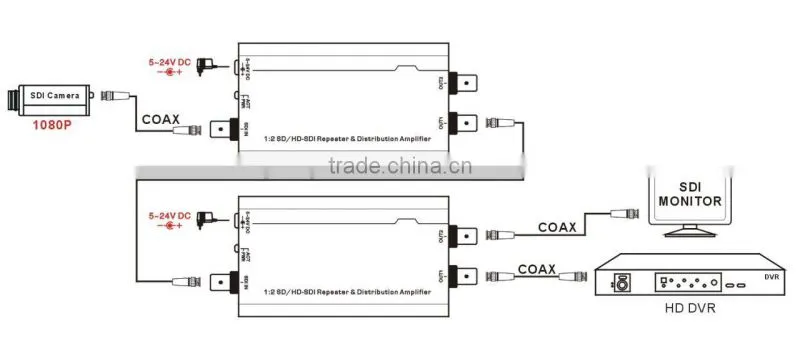

Application Diagram
