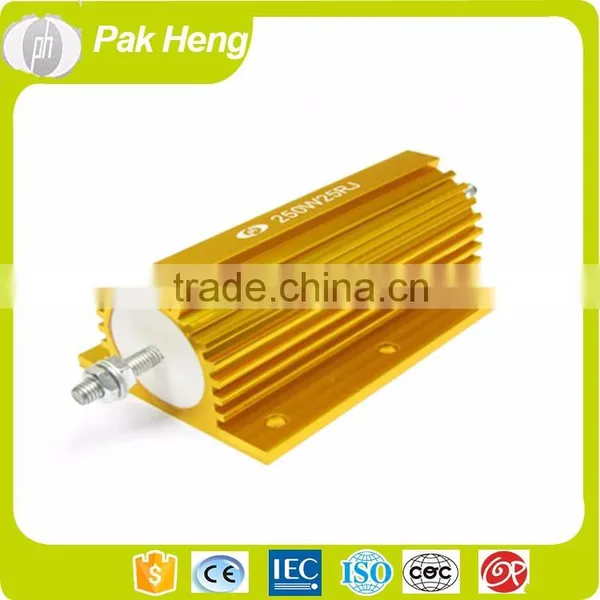

Gold Aluminum Housed Resistor

Name: Gold Aluminum Housed Resistor
Brand: PAK HENG- 2kw 500k 10k ohm variable power resistors
SKU: 135029951

US$ 0.01 - 3 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

PAK HENG- 2kw 500k 10k ohm variable power resistors

Model Number:

Power Resistors LRX

Shenzhen Pak Heng Electronics Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name PAK HENG- 2kw 500k 10k ohm variable power resistors

Model Number Power Resistors LRX

Type Fixed Resistor

Technology Wirewound

Package Type Throught Hole

Resistance 0.01ohm to 82K ohm

Resistance Tolerance 1%,2%,5%,10%

Rated Power 5W to 500W

Temperature Coefficient 300PPM

Operating Temperature -55 ~ +275

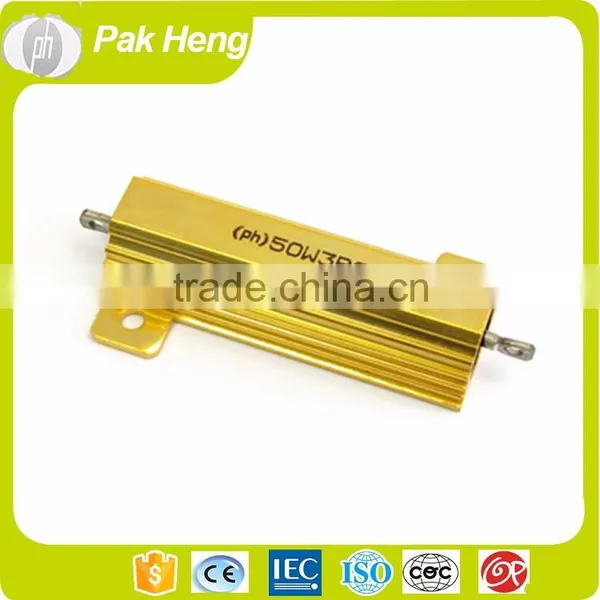

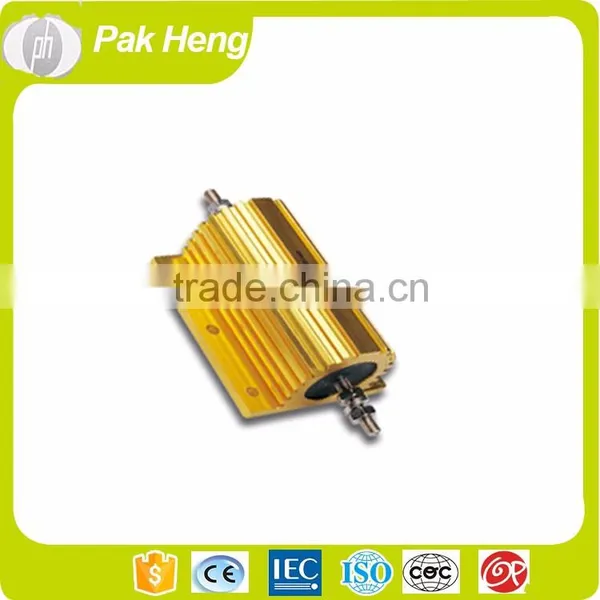

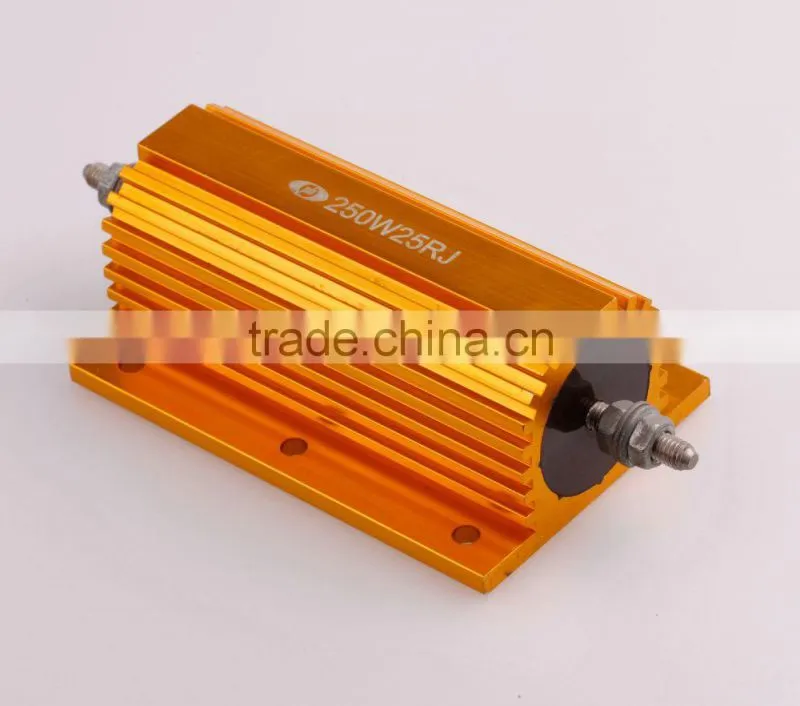

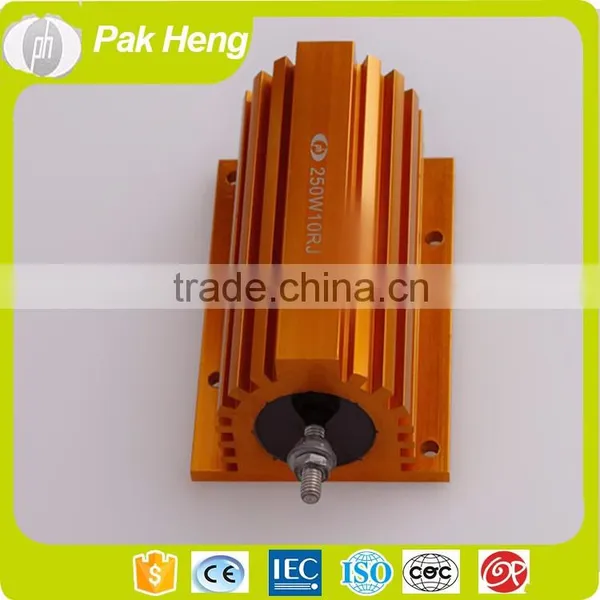

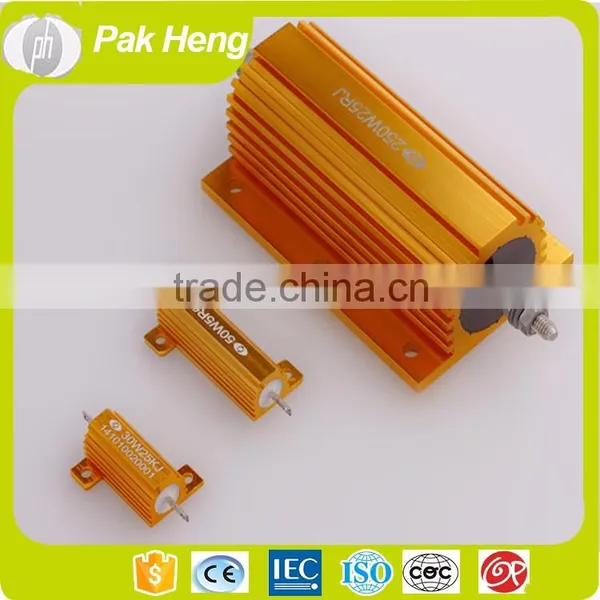

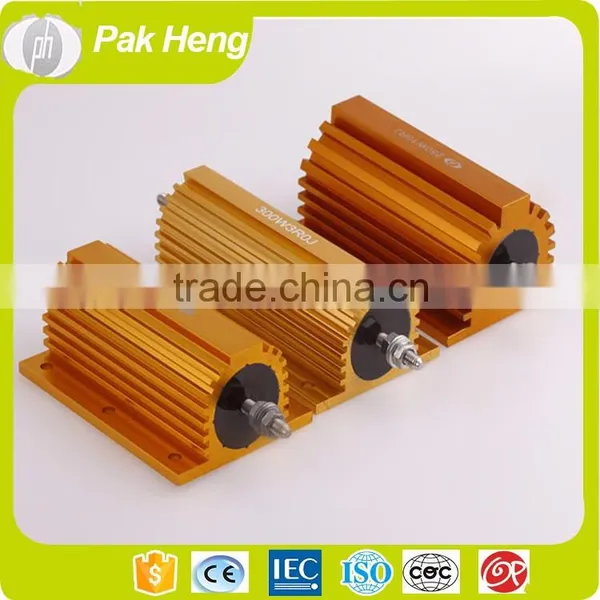

gold aluminum housed resistor

Features

1,Aluminum crust furface with good performance in heat radiatin, suitbale for cooling plate installation, can be used in the atrocious environment.

2,Small size, high power load.

3,High insulting capacity, encapsulation by non-flame inorganic Material, good performance in vibration.

4,Multi connection form will be easily to fix.

5,Widly used in power supply, Transducer, Elevator,Arena audio and high requirement equipment industry.

6,Resistance tolerance:±1%, ±2% ±5%, ±10%

Power:5W,10W,25W,30W,50W,75W,100W,150W,200W,250W,300W,500W

Tolerance: ±1%, ±2% ±5%, ±10%

Range:1R-100K

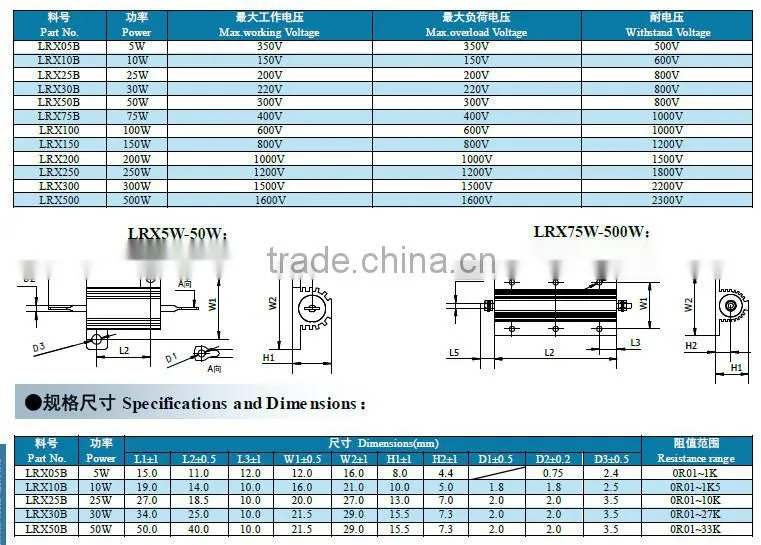

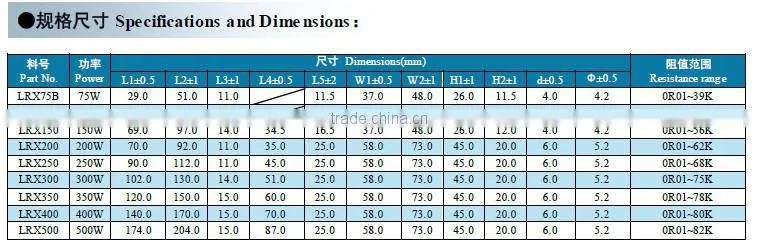

Description	Power	Tolerance	Range
LRX Gold Aluminum Housed Wire-wound Resistors	5W,10W,25W,30W,50W,75W,100W,150W,200W,300W,500W	±1% ±5% ±10%	1R-100K
TRX Trapezium Aluminum Housed Wire-wound Resistors	40W 60W 80W 100W 120W,150w,200w,300w,400w,500w,600w,800w,1000w	±1% ±5% ±10%	1R-100K
CRX Boat Type Aluminum Housed Wire-wound Resistors	50W 100W 150W	±1% ±5% ±10%	1R-100K
