1.With infrared light, more accurate shoting treatment area.
2.Different machine chassis option matches style of hospital, clinic, salon, beauty spa, home use, etc.
3.Water temperature and water flow alarm system ensure long time safe working.
4.Germany imported laser rod ensures higher light transmittance, with better working performance.
5.Taiwan import power supply, confirm the machine stable and strong output energy.
Specifications
2. Wide treatment
3. Handling design, mobile service

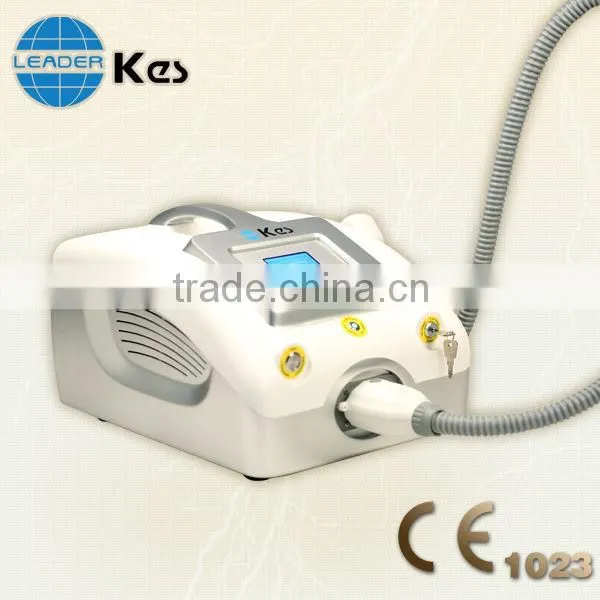

Q-switched Nd:YAG laser Tattoo Removal system (MED-810) ISO13485/Medical CE approved
Q-switch nd yag laser
Best tattoo removal laser
Tattoo removal machine
*Applications
Applications:
1. Remove all kinds of tattoo.
2. Remove pigmentation formed by pathological changes of pigment skin and mixed color, dermis spot, fleck,
black nevus, age pigment, birthmark and Nevus of Ota.
3. Remove all kinds of embroider eyebrow tattoo, embroider lip tattoo, soak lip tattoo, embroider eye line tattoo and lip line tattoo.
4.With skin rejuvenation treatment head (OPTIONAL).can fade acne scar,skin rejuvenation ,skin whitening,astringe pores ,remove black head .
1. Non-ablative Laser Rejuvenation (NALR-1320nm) using carbon peel for skin rejuvenation
2.532nm: for treatment of epidermal pigmentation such as freckles, solar lentiges, epidermal melasma, etc. (mainly for red and brown pigmention)
3.1064nm: for treatment of tattoo removal, dermal pigmentation and treating certain pigmentary conditions such as Nevus of Ota and Hori’s Nevus. (mainly for black and blue pigmention)
Contrast Photos (Before & After)
*How it works?
Laser technology has greatly improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed Q-switch neodymium: yttrium-aluminium garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. The QS laser Systems can successfully lighten or eradicate a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.
*Unique Advantages
1.1064nm, 532nm and 1320nm (Black Wawa), Wide treatment
2. Shot counter on the side of handle create “Unique” in this market.
3. Handling design, mobile service
4. Foot-switch is available.
*Technical Specifications
Wavelength |
1064nm & 532nm |
Energy |
1-1000mJ |
Laser Type |
Q-switched KTP Nd:YAG |
Spot Size |
2-5mm |
Repetition Rate |
1-6Hz |
Pulse Width |
<10ns |
YAG Bar Size |
6 |
Power |
250W |
Aiming Beam |
5mW red diode laser, 635 nm |
Stand-by Working |
Continuously for 12 hours |
Cooling |
Self-contained, closed water cycle |
Display |
6" Dual Color LCD Touch Screen |
Electrical Requirements |
100-240VAC, 20A max., 50/60Hz |
Net Weight |
16kgs |
Dimensions (WxDxH) |
44*35*33cm |
*Warranty:
1year
*OEM/ODM
Available
Working Principle of laser tattoo removal :
Laser technology has greatly improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed Q-switch neodymium: yttrium aluminium garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. The QS laser Systems can successfully lighten or eradicate a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.
Laser pigment removal machine though high energy of laser transient emission, make irradiated pigment particles absorb energy expansion rupture. Most or all of epidermal pigment group split into smaller tiny particles immediately ruled out in vitro. Part of dermal pigment group fragment into body macrophage phagocytic particles that ingest and excrete through the lymphatic system, thereby eliminating pigment. Due to normal tissue on 1064nm laser absorption is very few, maintaining the cell frame complete. No scar formation conditions. Because of the laser pigment removal is no damage to normal tissues, its security guaranteed maximum customer without complications from postoperative.
Gradually the pigment becomes lighter and lighter till disappearing. Gradually the pigment becomes lighter and ligher.
