Home > Health & Medicine > Beauty Equipment > Skin Beauty Equipment > Q-switched Nd-yag Laser Machine for Nevus of Ota, Coffee Spot, Age Pigment, Freckle and Tattoo Removal

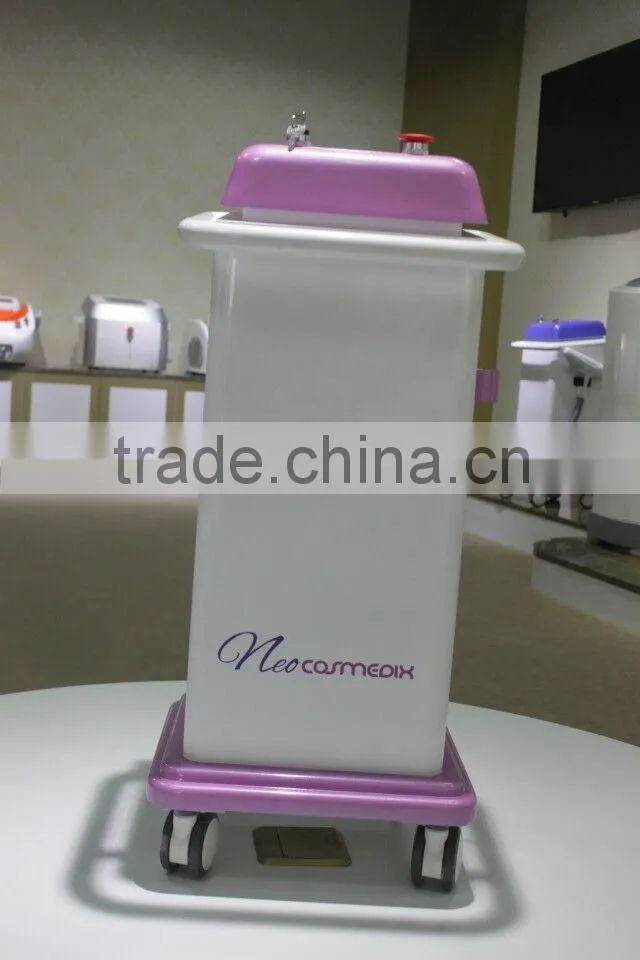

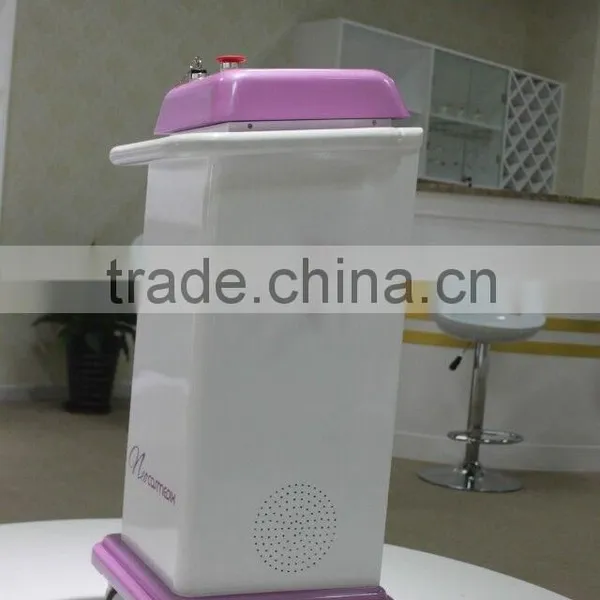

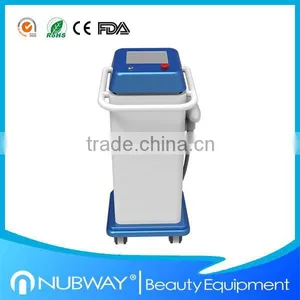

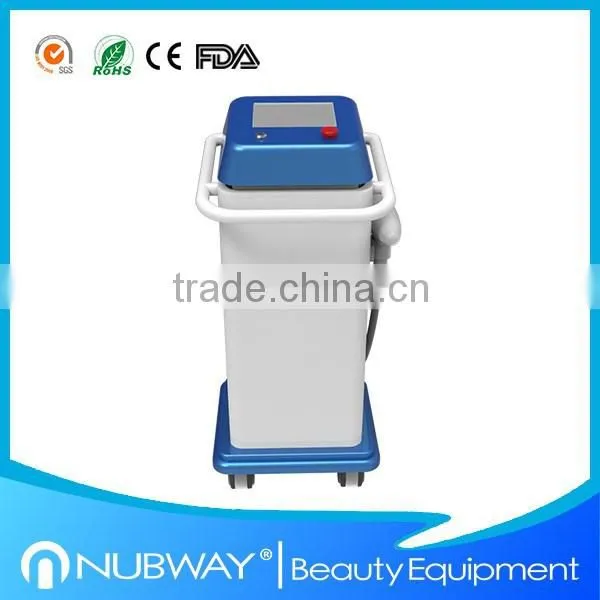

Q-switched Nd-yag Laser Machine for Nevus of Ota, Coffee Spot, Age Pigment, Freckle and Tattoo Removal
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Q-Switch:
Yes
Style:
Portable
Certification:
CE ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Airport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Laser Machine Nd Yag Q-switch Laser 600w Tattoo Removal System Nd Yag Laser Brown Age Spots RemovalUS$ 2,000 - 5,000MOQ: 1 Set -
Laser Removal Tattoo Machine CE Approved Q Switched Nd Haemangioma Treatment Yag Laser Tattoo Removal Machine 1064nmUS$ 7,500 - 13,000MOQ: 1 Set
-
2015 New Hot Q Switched Yag Laser Tattoo EquipmentUS$ 8,000 - 15,000MOQ: 1 Set
-
Q Switch nd Yag Laser Permanent Tattoo Pigment Removal Laser Nd Yag Q SwitchUS$ 8,000 - 15,000MOQ: 1 Set
-
Professtional Q Switch Laser Tattoo Removal System With 1064nm/532nm LaserUS$ 1,500 - 2,000MOQ: 1 Unit
Q-Switch
Yes
Style
Portable
Certification
CE ISO
Place of Origin
Beijing, China
Brand Name
NUBWAY
Model Number
NBW-2000
Feature
Pigment Removal, Tattoo Removal, Whitening
Q-switched Nd-yag laser machine for Nevus of Ota, coffee spot, age pigment, freckle and tattoo removal
Treatment Principle
NBW-2000B laser skin treatment device treatment principle is that using the Laser selective and adjusting Q-principle laser Blasting, making the precise dose of a specific wavelength of energy aim at a particular structor in a very short period of time---colorradical: derma and epidermis of ink, carbon particles and other exogenous and endogenous pigment granules of melanin pigment cells. Pigment be heated suddenly then occur blasting, the pigment was crushed to become smaller fragments, the crushed fragments was phagocytosed by macrophages, with the macrophage cells goes into the lymphatic circulation then pigment is excreted.
The Main Technical Specifications, Performance index:
Work condition
Environment tempreture:10~30℃;
Relative humidity:≤75%;
atmospheric pressure:860~1060hpa;
Power supply:AC220V,50Hz;
Cooling water:deionized water or distilled water
Basic Parameter
Physical demension(L×W×H,mm):400×380×800
Total weight:25kg;
Consumed power:600W;
creepage protectingrated current
Laser output method:Pulse adjusting Q
working Laser wavelength:1064nm;532nm
Laser pulse wideth:8ns±2ns;
Output frequency:1Hz,2Hz,3hz 4hz 5Hz;6hz
Single pulse max output energy:100-2000mJ;
Harmed eyes distance:NOHD 1km,operated in dense need wear eyeshield!
cooling method:Inlay closed cirlced water
Run Mode:Dwell load-on continuious running
Flare continuious adjusted
Photoelectricity Capability
Arthrosis bottom Output Max Single Pulse energy≥500mJ;
Laser Output enstablity:ST≤±10%;
Output Power reappear:Rp≤±10%;
Output Power and Preset valueshowing error:≤±20%;
Operation FlareDiameter:1-4mm continious adjusting;
Aimming at Laser outputpower Pc::0.1mW≤Pc≤5mW
Laser Wideth 8ns±2ns
Whole machine functions
Single pulse energy degree showing and adjusting
Pulse wavelenth showing and adjusting
Pulse frenquency and showing adjusting
Working condition and showing adjusting
Safety inquiry
1, the electric shock protection: Conforms to GB9706.1-2007 "Medical electrical equipment Part I: General
requirements for safety" in the Class B Type I device regulations.
2, Laser Radiation Protection: Conforms to GB7247-2001 "Radiation safety of laser products, equipment classification, requirements and user's guide", the 4 types of medical laser product radiation safetyrequirements.
Indications
1 Indications
This instrument is mainly used for eliminate some of the clinical exogenous and endogenous skin, blue,black, brown pigment lesions, such as: tattoos, tattoo, nevus of Ota and so on.
2, the treatment interval Two treatment should be about two months apart, so that the pigment particles were crushed have enough time to be absorbed.
3, number of treatment
Many cases, the treatment generally required to get better results, the number of specific treatment of patients with the concentration of pigment from the affected area, depth, pigment composition, each treatment using the laser dose, patients with macrophages in vivo absorption of pigment granules and other factors. Generally exogenous pigment treatment to be more than 3 times, 5 times the endogenous pigment to be more satisfactory than the treatment effect obtained a small number of patients with repeated treatment effect is not satisfactory.
Contraindications
1. For patients with dark skin, we suggest they take treatments after skin-whitening. Otherwise the skin maybe hurt slightly
2. After the treatment, the skin will become red and swollen or blood infiltrated, if so, patients can ice the treatment skin or apply some ointment against scar
3. Some metal ion such as ferric ion will become chemical substance, if so the skin will be darker after treatment. It is not the problem of machine self.
4, after the treatment skin should be kept clean and dry to avoid infection.
5 Postoperative Results boil, should make it off on their own in order to avoid man-induced scars.
6, Repeating treatment is prohibited in the same area, or tissue will be damaged due to heat accumulation.
Precautions and instructions
The actual components of this product have been tuned and locked, there are components with special requirements need to be sealed at the factory. Users are not allowed to unsealed, dismantling, adjustment and changes the parameters have been locked, otherwise the consequences are due to users.
The radiation shield body, device of remote interlock, key switch, warning device of laser radiation, device of Beam terminated are according to the provision of GB7247-2001. It is set for the safety protection of laser radiation, the users are not allowed to dismantle these devices, so as to affect the protective security.
Laser skin treatment device is the instruments with light, mechanical, electrical and precision in one. Therefore, the operators must be trained. Non-trained personnel are not allowed to operate the machine.
Please read this manual carefully before use, we shall not be held responsible for the medical accidents and disputes which are caused by not read or violate compasses operation.
Please must make laser far away from the non-treatment site during treatment process.
Pictures of before and after
Packaging & Shipping
Packaging Detail: aluminium box for cryolipolysis slimming machine
Delivery Detail:3-5working days for cryolipolysis slimming machine
Our Services
- 3 years warranty for the mainframe without charges for components change or repairing. Lifetime maintenance without any charge
- Free training for operation of the equipment in our company, which provided by our specialized training department.
- On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the laser equipment, and after-sale maintenance and more.
- OEM/ODM services are available. We have our own developing and design department and manufacturing line, which ensure your required beauty equipment
