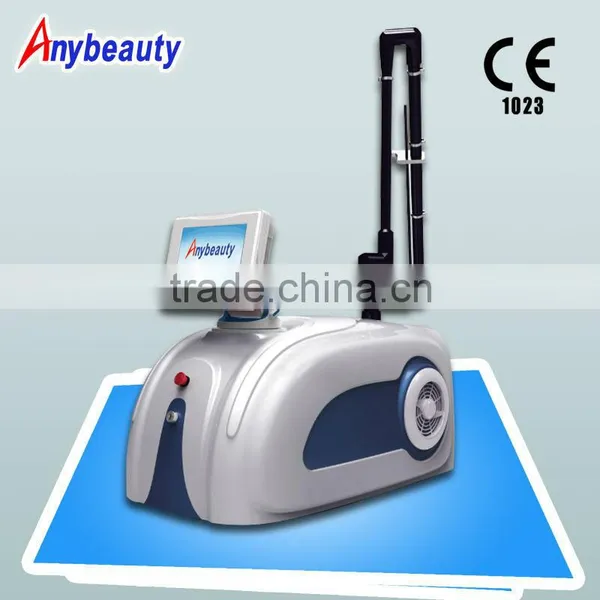

Help CenterSpot Scar Pigment Removal Newest CO2 Fractional Laser Machine F5 For Freckle Removal Medical
Related Products
-
F5 CO2 Frational Laser Skin Activator Machine for Acne Removal Wrinkle RemovalUS$ 1 - 8,500MOQ: 1 Set -
Portable CO2 Laser Skin Resurfacing Device for Medical Salon UseUS$ 1 - 8,500MOQ: 1 Set
-
Hot Sale CO2 Fractional Laser New Promotion Product for Scar Removal F7 With CEUS$ 1 - 9,000MOQ: 1 Set
-
Co2 Fractional Laser for Sale Anybeauty Laser Brand F7 With CEUS$ 1 - 8,000MOQ: 1 Set
-
Anybeauty CO2 Laser Machine F5 for Scar and Wrinkle Removal With Medical CE CertificateNegotiableMOQ: 1 Set
Specifications
2.OEM and ODM service;
3.Dispel wrinkle;
4.Lifetime maintenance;
5.Medical CE and ISO13485 approval.
CO2 Fractional Laser wrinkle removal F5
Application |
1. Remove acne, acne scar, scar and so on; |
|||
Special Features |
1. US-imported RF-CO2 laser generator, high quality excellent performance; |
|||
Technical Parameter |
Electrical Requirements |
AC 110V± 10% 60Hz |
Beam Delivery |
6 joint arm |
Wavelength |
10600nm |
Cooling |
Air cooling |
|
Aiming wavelength |
635nm |
Output mode |
Continuous, super pulse, fractional |
|
Focal Spot Diameter |
0.25mm |
Operating mode |
Continuous, operation with, intermittent loading |
|
Power of Aiming Beam |
≤ 5mw |
Whether Preview or not |
Yes |
|
Pulse Interval |
1ms-5000ms, every stepping 1ms |
Times of scanning |
1th-20 th, every stepping 1th |
|
Pulse Width |
0.1ms-10ms, every stepping 0.1ms |
|||
Scanning Mode |
Disorder emitting, to one side as the base emitting in order, emitting by maximum distance |
|||
Output Power |
1%-100%(adjustable), every stepping1%, 20W |
|||
Output Pattern |
Beeline, triangle, right square, rectangle, hexagon, rotundity, ellipse and so on |
|||
Spots Interval |
0.1mm-2.6mm, every stepping 0.1mm |
|||
Pattern Size |
Diagonal length from 0.1mm to 20mm is adjustable at random |
|||
Features:
1. Reduced thermal damage to surrounding tissues
2. Rapid healing and minimal downtime
3. Stimulate deeper collagen with high pulse energy
4. LCD display panel provides easy operation with the latest microprocessor technology
5. Adjustable scanning patterns and size
6. Adjustable intensity of pilot beam from zero to maximum
7. Adjustable pulse duration
8. Last treatment setting memorization
9. Automatic alarm system for operation and troubles
10. Covers all functions of conventional system
11. No consumable costs
Treatment Interface
Principle:
Fractional resurfacing is a new laser treatment modality that creates numerous microscopic thermal injury zones of controlled width, depth,and density that are surrounded by a reservoir of spared epidermal and dermal tissue,allowing for rapid repair of laser-induced thermal injury. This unique modality, if implemented with proper laser- delivery systems, enables high-energy treatments while minimizing risks.
2.This machine use the RF Tube manufacturerd by Coherent America,the frequency can reach more than5000HZ,the high speed can work more efficiecnt and effectively,it is very good for the ultra pulse incision for the precise surgey,no blood,the treatment area is very clear,andless down time.
Medical CE and ISO 13485 approval
Treatment results comparision
Aluminum alloy case
DVD and online training
Working area
Brief Introduction
Refine super pulsed CO2 laser Refine is a classic minimally invasive laser equipment for dermatologic surgery. This latest super pulsed laser emission system delivers hundreds of orderly micron pulsed laser beam on skin lesions, for controllable and accurate treatment by means of adjusting the size, density, distance,nature of the multiple arrays, and the diameter and the depth of the pore.
The treatment of Refine is very safe and can cover any part of the body. Its applications include a variety of wrinkles(forehead lines,eyebrow lines,eye wrinkles,perioral wrinkles,neck lines,stretch marks etc.),sagging skin, drooping eyelids, eyes bags, acne(whelk) marks, all kinds of scar(trauma scar,burn scar,suture scar),stains etc.
