Help CenterVera-36 Compact 3 Way Line Array Speaker
Related Products
-
Powerful Subwoofer Speaker Vera-33US$ 800 - 800MOQ: 8 Pieces -
Horn Loaded High Sound Pressure Speaker T24US$ 800 - 800MOQ: 8 Pieces
-
Q1 Dual 10 Inch Line Array SpeakerUS$ 800 - 800MOQ: 8 Pieces
-
932 Passive Line Array SpeakerUS$ 800 - 800MOQ: 8 Pieces
-
127DVX Line Array SpeakerUS$ 800 - 800MOQ: 8 Pieces
VERA36’s intrinsic qualities speak for themselves–no fewer than six loudspeakers working in an enclosure that’s just 70 cm wide and 31 cm high. The central element is the mid-range horn, driven by two 8" cone speakers, with the mid-high frequency unit comprising two 3" compression drivers and a newly developed waveformer, positioned coaxially in the centre. The vertical dispersion is 10 degree, while 80 and 120 degree versions are available for the horizontal dispersion. The low-mid range is supplemented by two 10" long excursion bass speakers. It is remarkable that below 400 Hz all four cone speakers work together providing impressive reserves of low-mid and punch.
But it’s not just an impressive sound performance that makes a modern loudspeaker system a success. Ease and safety of operation, a quick setup and dismantle are also required.That’s not an issue with VERA36, thanks to a newly developed, fully integrated 3 point rigging system with its innovative mechanism featuring logarithmically allocated splay angles, enabling optimal array curving and precise aiming right into the back rows of even large venues.
Whether you’re rigging up the array from the floor as a caterpillar, lifting it vertically out of the case of dolly or building a ground stack–every variant is possible. Particularly easy. Particularly safe. Particularly fast.
Applications
Designed for use in groups of four or more the Vear-36 delivers predictability and control. Combined with an advanced integrated rigging system, one-man installations are a reality. The Vera 36is fully weatherized, with stainless steel hardware for corrosion resistance, and hydrophobic mesh behind the grille to protect the internal components from exposure to the elements.
Specifications
| Compoents: | LF 2x10" MF2x8" HF2x3" | |||
| Output watts : | LF 1000W RMS MF 800W HF 160W RMS | |||
| Sensitivity: | LF 98db MF 110 DB HF 113db 1W@1m | |||
| MAX SPL: | 141db | |||
| Frequency Range: | 65HZ-18KHZ | |||
| Cover Range Angle : | H 120 V Array Dependant | |||
| Impedance : | 8 ohms | |||
| Connecters: | 2x Neutrik NL8 | |||
| Dimensions: | 310 x 700 x 580 mm | |||
| Weight : | 42KG | |||

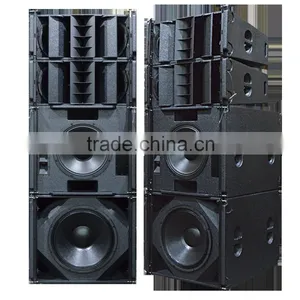

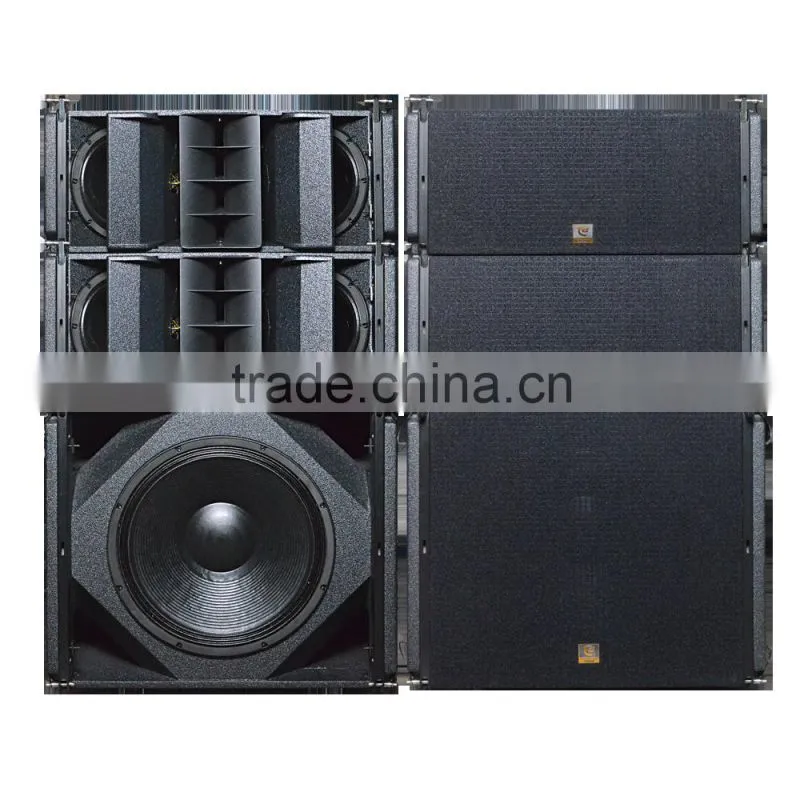

speaker Pictures

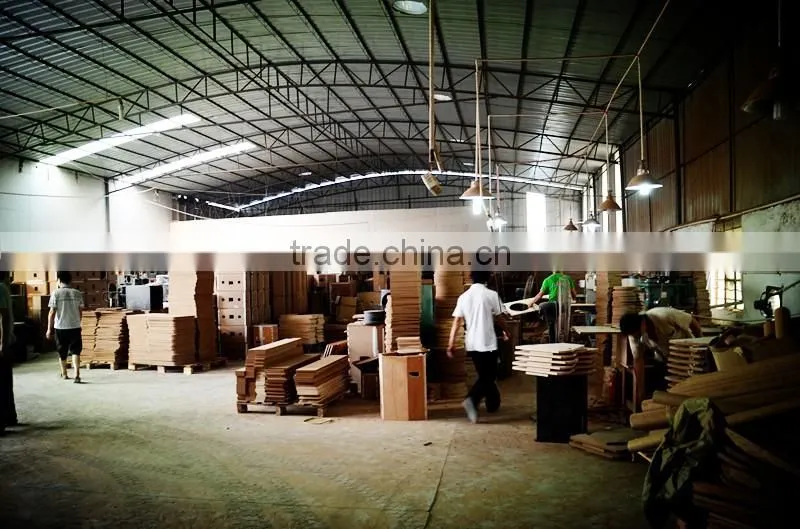

Factory overview
our speaker workshop was established in the year of 2004, and has been dedicated to design and manufacture of audio equipments for Ten years. We located in Shijing town,Baiyu district ,Guangzhou city and enjoys convenient transportation, which is taking 25 minutes from the Guangzhou Baiyun Airport to our company.
We Having a group of experienced engineers and strong design team, Scientific management system, Our products are mainly for concerts , Club, Moving DJ, Stadium, Conference and Karaoke systems. we also possess advanced production facilities and testing equipment, and perfect quality management system,for the good quality products to provide a strong guarantee. We can provide fantastic products to meet the different needs of customers.
We are committed to providing top quality products with competitive prices, providing the high quality technical support and after-service,and reliable distribution network. Our products sell in distant markets Europe, Africa, Southeast Asia ,and US markets.
