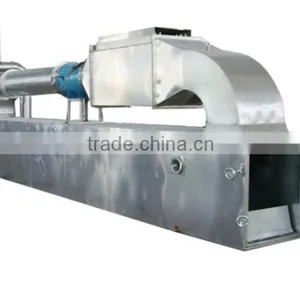

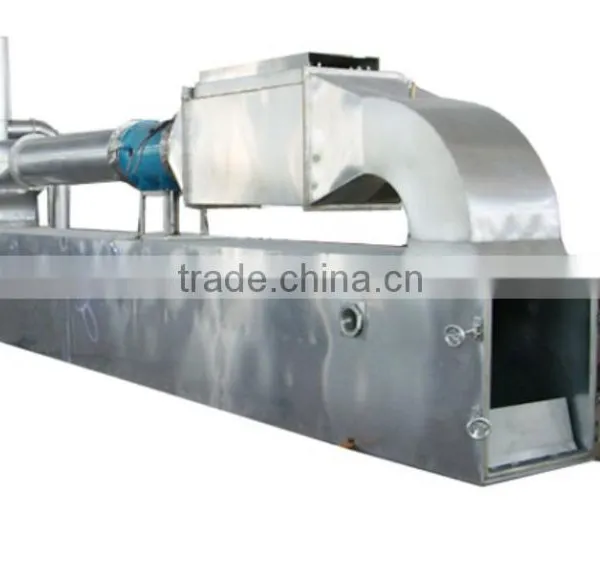

Help CenterTunnel Oven
Related Products
tunnel oven has characteristic of big charge capacity and operate easy. it's main suitable to vegetable dehydration,, fruit etc. farm product drying, and wood material ceramic and all kind of scatter material which need long time drying and to calcine.
Feature:
1. the customer can according material's characteristic to choose lengthways circle and landscape orientation drying mode, to improve the efficiency and product's quality.
2. can adapt centralized heating way, it's in favor of coal fuel, oil fuel, gas fuel hot air furnace, conduct oil furnace etc. heating source connect, it's convenience for customer using.
3.according to customer requirement, can adapt manpower and mechanism way to fee-in and feed -out.
Technical parameter:
Type |
Feeding capacity(Kg) |
Equipped power(Kw) |
Drying car |
Drying tray |
Radiation area(m2) |
SG-11 |
1000 |
20.2 |
22 |
528 |
200 |
SG-16 |
1500 |
26.2 |
30 |
720 |
300 |
SG-22 |
2000 |
32.2 |
40 |
960 |
400 |
SG-30 |
2500 |
38.2 |
50 |
1200 |
500 |
SG-36 |
3000 |
38.2 |
60 |
1440 |
600 |
