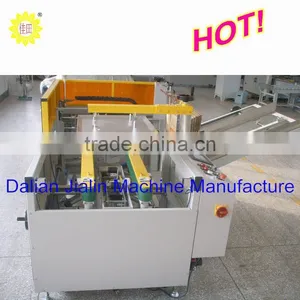

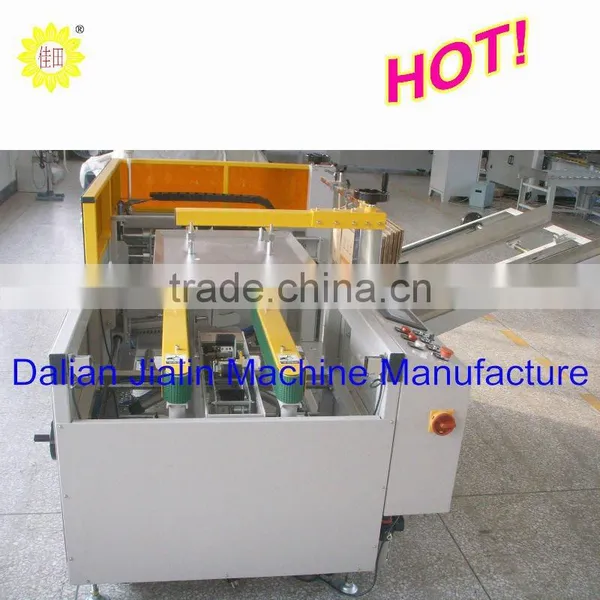

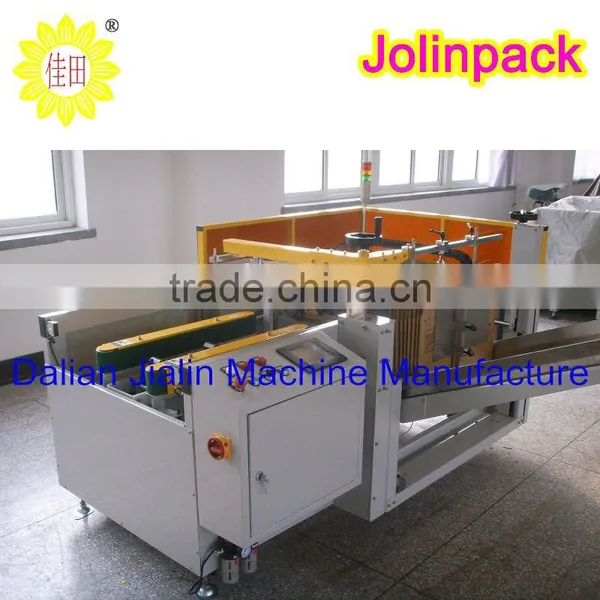

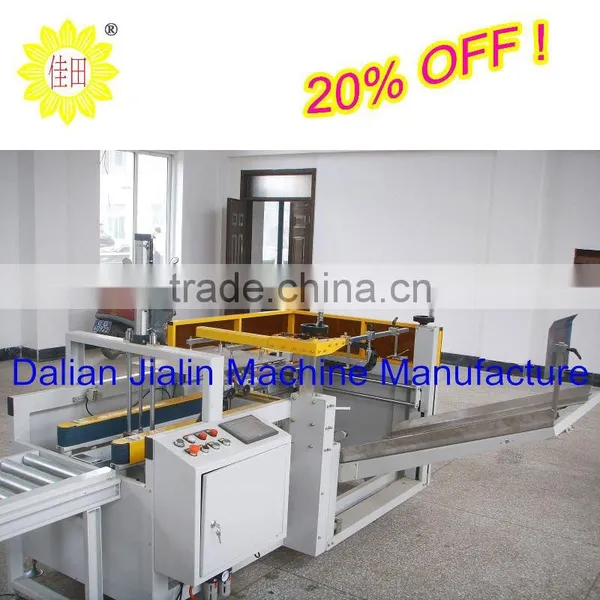

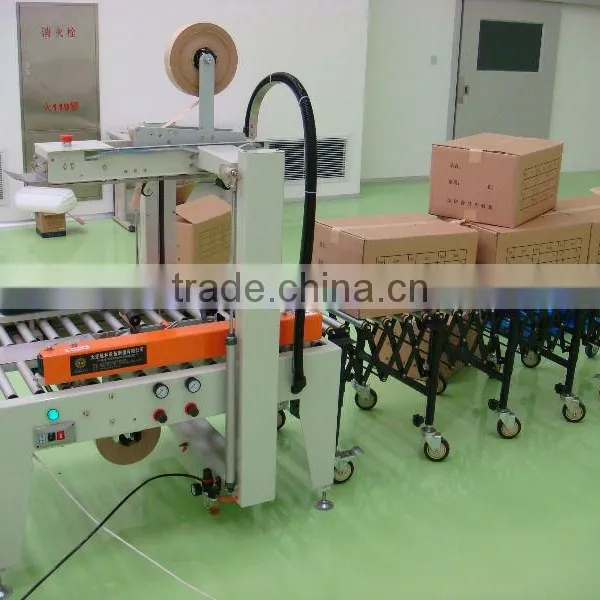

Help CenterCarton Erector With Bottom Sealer
Related Products
Specifications
carton erector with bottom sealer1.apply to all type cases/cartons/boxes
pact design,easy operation.
3.durable
carton erector machine
1.apply to all type cases/cartons/boxes
pact design,easy operation.
3.durable
Specifications | |
Case Packing Machine | |
Model |
JTK-09 |
Carton size |
L200-450W150-400H100-350mm |
Table height |
min. 650 mm |
Working speed |
600-720ctns/hour |
Machine size |
(L) 2000mm, (W) 1900mm, (H) 1200mm |
Power |
220/380V, single phase, 50/60Hz |
Tape width |
48mm, 60mm, 75mm (choose one) |
Pneumatic |
5-6kg/cm2 150 L/min |
Machine net weight |
approx. 350kgs |
Motor |
Taiwan Brand, CE certified. |
Pneumatic element |
Taiwan AirTAC |
PLC |
Japan Mitsubishi |
Contactor and switch |
France Schneider |
Photosensor |
Japan Omron |
|
Features: Perfect working on forming and sealing for soft cartons; Vertical storage is adoped to for storing carton blanks, for which carton blanks can be added at any time without stopping the machine. Auto process of grabing,forming and bottom sealing; Adjustment for cartons only needs 1-1.5 min , is the fastest inland for now; The erector is man-machine interface control (Taiwan brand 5.7 inch colour touch screen),auto updating moving process and alarming. Touch screen could help to find the fault and solve problem at the first time. | |
Carton Erector With Bottom Sealer(Nail type) | |
Standard Specification | |
Type |
JTK-09J |
Carton size |
L200-450W150-400H100-350mm |
Table height |
min. 650 mm |
Working speed |
600-720ctns/hour |
Machine size |
(L) 2000mm, (W) 1900mm, (H) 1200mm |
Nailing for |
3318*5000 pcs/roll |
Power |
220/380V, single phase, 50/60Hz |
Tape width |
48mm, 60mm, 75mm (choose one) |
Pneumatic |
5-6kg/cm2 150 L/min |
Machine net weight |
approx. 350kgs |
Motor |
Taiwan Brand, CE certified. |
Pneumatic element |
Taiwan AirTAC |
PLC |
Japan Mitsubishi |
Contactor and switch |
France Schneider |
Photosensor |
Japan Omron |
Pip |
Japan professional automatic nail pipnailing 5000pcs/roll |
|
Features: Perfect working on forming and sealing for soft cartons; Vertical storage is adoped to for storing carton blanks, for which carton blanks can be added at any time without stopping the machine. Auto process of grabing,forming and bottom sealing; Adjustment for cartons only needs 1-1.5 min , is the fastest inland for now; The erector is man-machine interface control (Taiwan brand 5.7 inch colour touch screen),auto updating moving process and alarming. Touch screen could help to find the fault and solve problem at the first time. | |
If you are interested in our products,please feel free to contact us for more information.Thank you.
Dalian Jialin Machine Manufacture Co., Ltd.
No. 138 Guofang Road, Jinzhou District,
Dalian, China 116100
Tel: +86-411-66366707/00
Fax: +86-411-87683017
Contact person: Miss Alex Trademanager ID: cgs_jolinen
Send Inquiry to This Supplier
