Help CenterLiquid Packing Machine (carton Erector)
Related Products
Specifications
liquid packing machine (carton erector)1.JTK-09 suitable to cases,cartons, boxes
npact design and easy operation

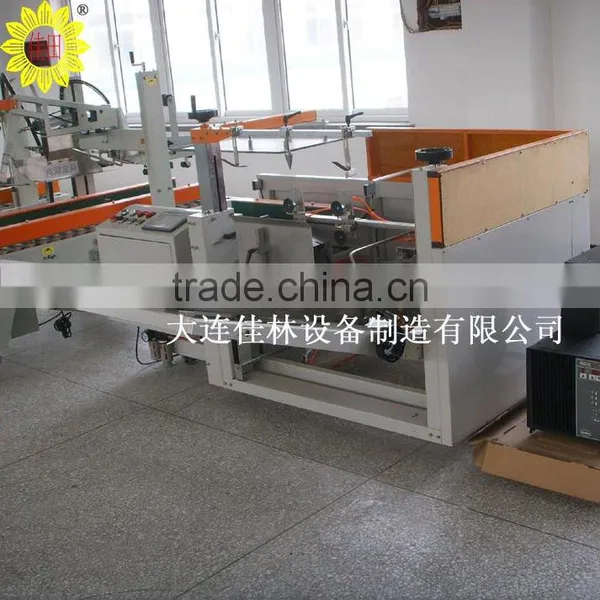

liquid packing machine (carton erector)
JTK-09 suitable to all kinds of cases like cartons and boxes,
food packing cases, beverage pack,juice,etc
Parameters:
Specifications | |
Case Packing Machine | |
Model |
JTK-09 |
Carton size |
L200-450W150-400H100-350mm |
Table height |
min. 650 mm |
Working speed |
600-720ctns/hour |
Machine size |
(L) 2000mm, (W) 1900mm, (H) 1200mm |
Power |
220/380V, single phase, 50/60Hz |
Tape width |
48mm, 60mm, 75mm (choose one) |
Pneumatic |
5-6kg/cm2 150 L/min |
Machine net weight |
approx. 350kgs |
Motor |
Taiwan Brand, CE certified. |
Pneumatic element |
Taiwan AirTAC |
PLC |
Japan Mitsubishi |
Contactor and switch |
France Schneider |
Photosensor |
Japan Omron |
|
Features: Perfect working on forming and sealing for soft cartons; Vertical storage is adoped to for storing carton blanks, for which carton blanks can be added at any time without stopping the machine. Auto process of grabing,forming and bottom sealing; Adjustment for cartons only needs 1-1.5 min , is the fastest inland for now; The erector is man-machine interface control (Taiwan brand 5.7 inch colour touch screen),auto updating moving process and alarming. Touch screen could help to find the fault and solve problem at the first time. | |
- Carton sealer
- Carton packer
- Carton erector
- Conveyors
- Stretch wrapping machines
- Strapping machine
- Palletizers
- Robot palletizers
Company Introduction:
Dalian Jialin Machine Manufacture Co., Ltd. is a professional manufacturer specialized in developing, designing, producing and installing auto conveyors (standard or nonstandard), packing machines and medical apparatus, etc.
Located in Dalian City, our company was established in 2003, covering an area of 5,300 square meters with a building area of 5,000 square meters. Total assets over USD2,500,000. There are 120 employees, including 27 professional technicians.
Being ISO9001:2000 certified, we have import and export right, and also have manufacture license of medical apparatus. We keep supplying machines worldwide reguarly and had won sound reputation among our customers. We try our best to supply the best products and services for you all the time!
If you are interested in our products, please feel free to contact us for more information.
Thanks & Best regards,
Dalian Jialin Machine Manufacture Co., Ltd.
No. 138 Guofang Road, Jinzhou District,
Dalian, China 116100
Tel: +86-411-66366707/00
Fax: +86-411-87683017
Contact person: Miss Alex Trademanager ID: cgs_jolinen
