Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Case Erector

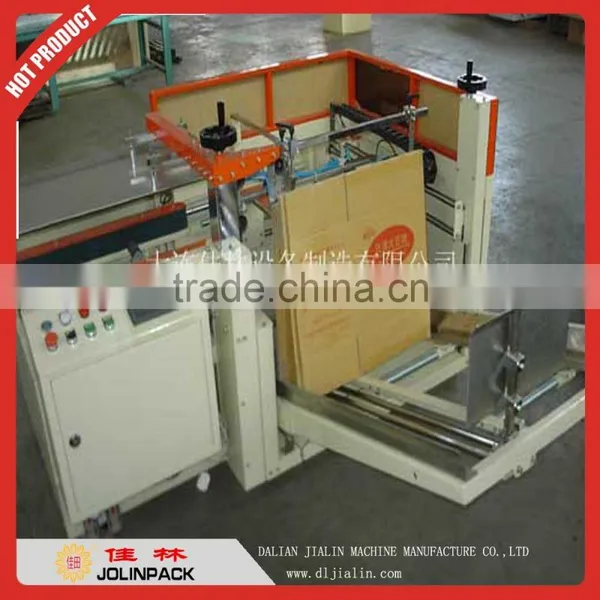

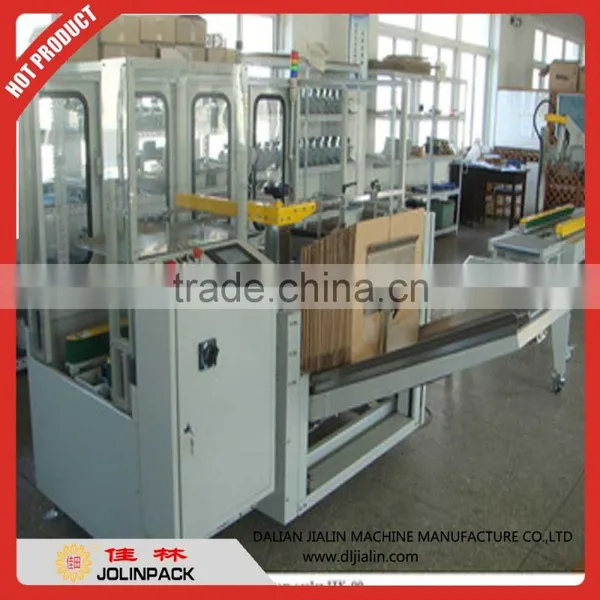

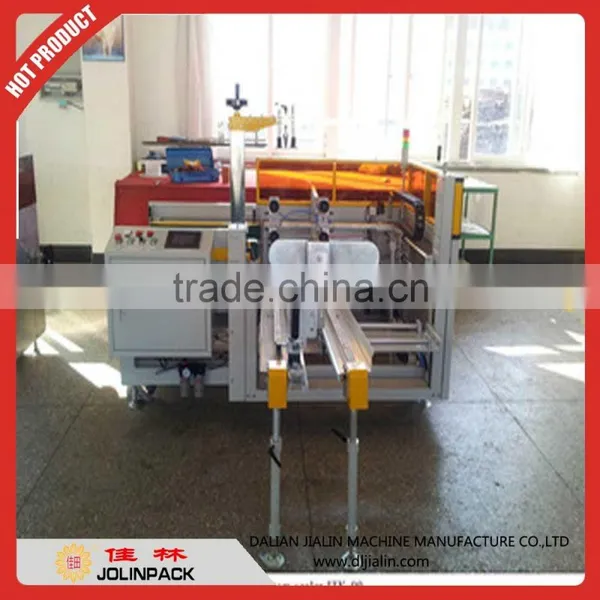

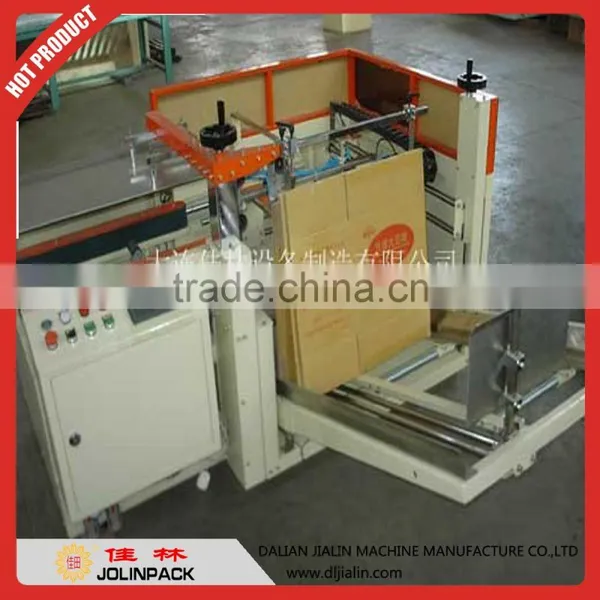

Case Erector

Name: Case Erector
Brand: Jialin
SKU: 137401619

US$ 1 - 999 MOQ: 1 Unit

Key Specifications

Get Latest Price

Application:

Beverage, Chemical, Food, Other, Medical, Beverage, Chemical, Food, Machinery & Hardware, Medical

Packaging Type:

Cartons, Case

Packaging Material:

Other, sea worthy wooden box

Contact Supplier Request Quote Chat Now

Dalian Jialin Machine Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application Beverage, Chemical, Food, Other, Medical, Beverage, Chemical, Food, Machinery & Hardware, Medical

Packaging Type Cartons, Case

Packaging Material Other, sea worthy wooden box

Automatic Grade Automatic

Driven Type Pneumatic

Voltage 220V/380V

Power 0.4kw

Place of Origin Liaoning, China

Brand Name Jialin

Model Number JTK-09

Weight Approx.350kgs

Dimension(L*W*H) Machine Model

Certification ISO9001:2008, CE

After-sales Service Provided Engineers available to service machinery overseas

Welcome to browse our products:Case erector

Parameter of Case erector

Model	JTK-09
Carton Size	L200-450 W150-400mm H100-350mm
Table height	min650
Working speed	600-720ctns/h
Machine size	L2000 W1900 H1200mm
Power	220/380V 50/60hz
Tape width	48mm/60mm/75mm or choose one
Switch brand	Taiwan ShenDian
Machine net weight	Approx.350kgs
Machine surface	Plastic spraying processing
Touch screen	Import from Taiwan,5.7inch

Automatic carton box erector machine is widely used in food,chemical,medicine and logistics industry,Carton Box Sealer is used in many fields such as cake,medicine,paraffin and so on.

Our machine called best price carton box erector machine,also called carton erecting machine for carton refers to unpacking, forming carton box, the below picture is the working process,first of all put the board in the stock bin when the power on,then sealing bottom of carton box finally forming a carton box.

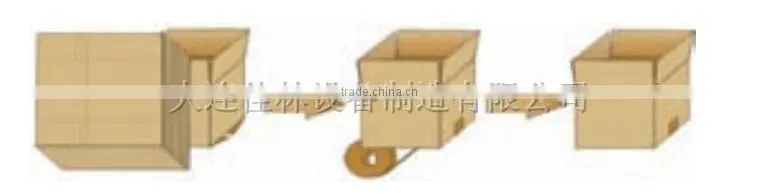

Automatic forming-Sealing bottom of carton box-Finished

Features of Case erector

1,Vertical storage is adopted to for storing carton blanks,for which carton blanks can be added at any time without stopping the machine.

2,It's suitable for forming and sealing cartons of the same size.

3,If carton size need to be changed,the operator should adjust the machine manually.

4,All the parts are precises and durable,without causing any vibration in running steadily with long life.

5,Light in weight,high performance and speed.
