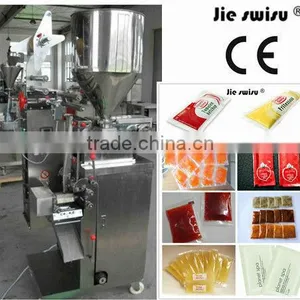

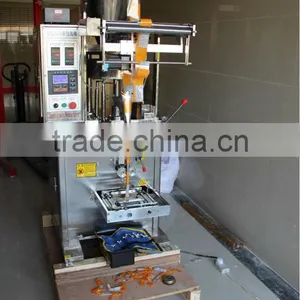

Automatic Vertical Peanut Paste Packaging Machine
Feature
1) PLC control, English and Man-machine interface, step motor driven,
2) Photoelectric tracking system for precise bag length and position of film.
3) Filling volume and bag length are easy to adjust on the interface without changing mould.
4) Digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) No leak with high filling accuracy
6) Easy operation, smooth performance, low noise, compact construction, convenient to maintenance, take up small floor space in high packaging speed and efficiency.
Application
The machine is widely used in food, cosmetic and pharmaceutical industries such as tomato paste, shampoo, facial cream, spices such as paste, liquid, paste, honey.
Features: bag making, measuring, filling, sealing, cutting, counting and hot pressing batch No. or printing date can be done automatically.
Technical parameters
Type |
CJL-320A |
CJL-320B |
CJL-320AT |
Bag style |
Back sealing |
4 side sealing |
3 side sealing |
Voltage |
220V/380V 50HZ |
220V/380V 50HZ |
220V/380V 50HZ |
Powder |
1.5KW |
1.5KW |
1.5KW |
Measure Range |
Max 200ml |
Max 80ml |
Max 130ml |
The maximum width of the film |
280mm |
280mm |
280mm |
The bag length |
30-200mm |
50-180mm |
50-180mm |
The bag width |
25-145mm |
30-145mm |
30-145mm |
Packing speed |
40-60bags/min |
40-60bags/min |
40-60bags/min |
Machine size |
750*1200*1800mm |
750*1200*1800mm |
750*1200*1800mm |
Groess weight |
260kg |
280kg |
260kg |
Packing material |
Polypropylene / polyethylene, polyester / Al / PE, PET / Plated Al / PE, nylon / polyethylene etc. |
||

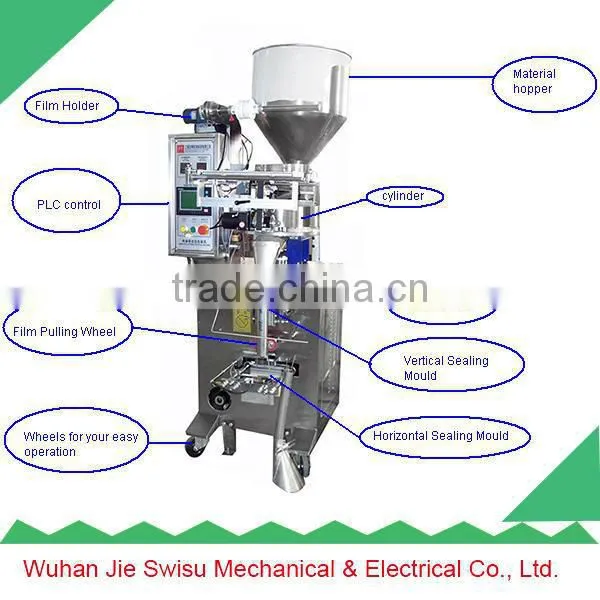

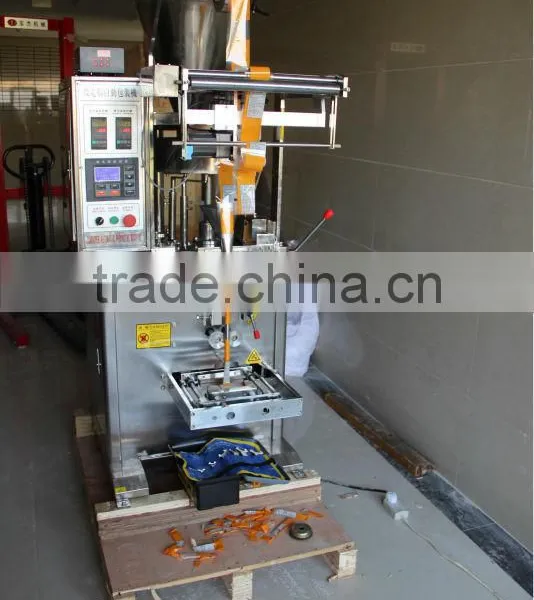

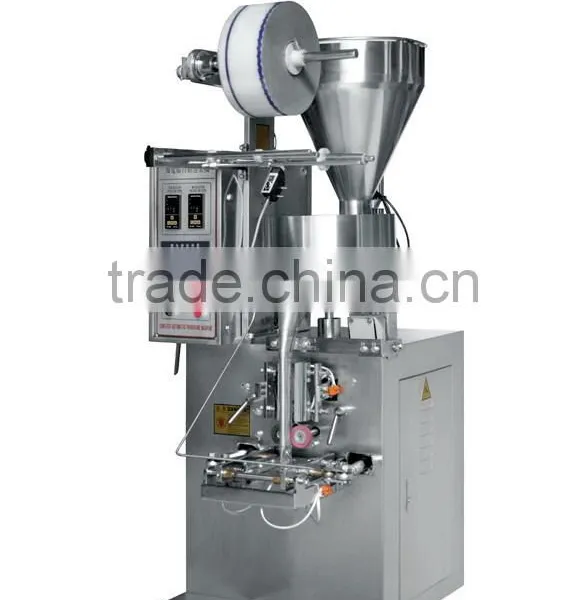

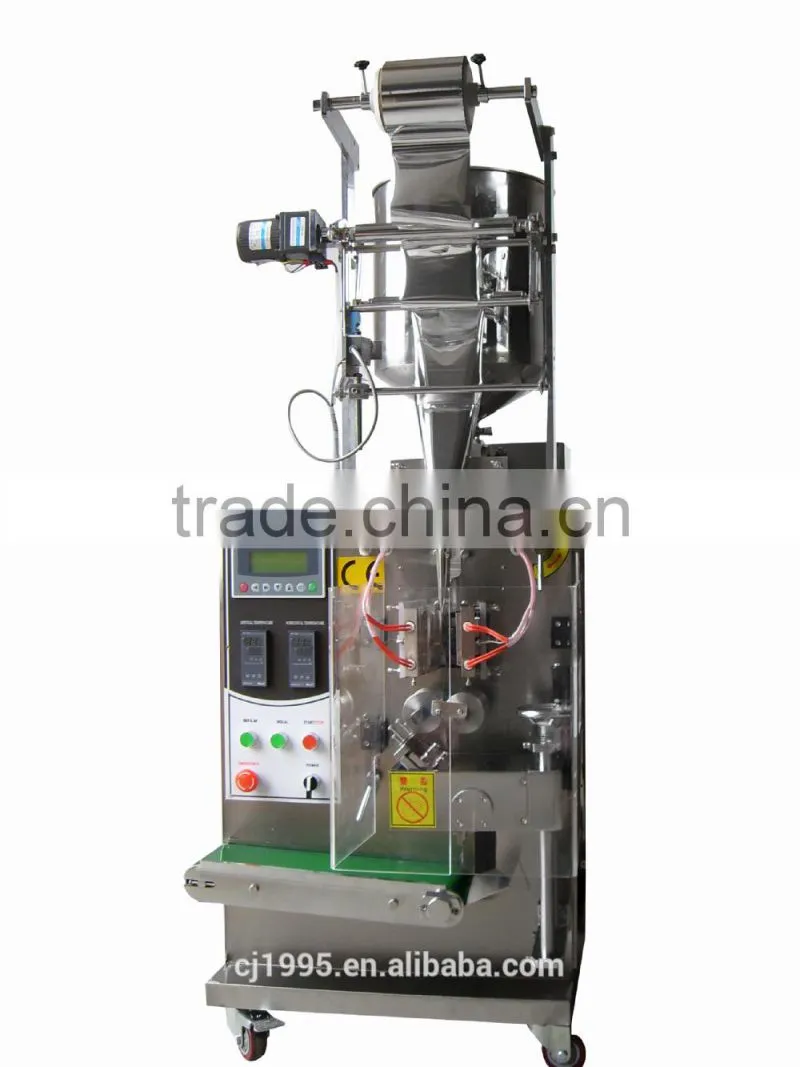

Machine
Packing style
Kindly reminder
Please tell us the following information when you send us an inquiry. Base on your message, we will suggest the optimum machine or options to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Filling material
4. Bag shape
5. Bag material
Our Services
1.Pre-sale services:
Design customised project for clients.
Design and manufacture products according to clients special requirement.
Train technical personnel for clients.
2.Services during the sale:
Pre-check and accept products ahead of delivery.
Help clients to draw solving plans.
3.After-sale services:
Assist clients to prepare for the construction scheme.
Install and debug equipment.
Train the first-lin operators.
Examine equipment.
Take initiative to eliminate the troubles immediately.
Provide technical exchanging.
