(ISO Approved) 2014 Sold Hot Dipped Galv. No Dig Ground Screw Pole Anchor

Name: (ISO Approved) 2014 Sold Hot Dipped Galv. No Dig Ground Screw Pole Anchor
Brand: hetian
SKU: 137440831

US$ 0.6 - 2.6 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

hetian

Model Number:

71 x 71 x 150 x 750 mm

Qingdao Hetian Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port or Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name hetian

Model Number 71 x 71 x 150 x 750 mm

Type Other, Pole Anchor, Ground Screw Pole Anchor

Material Steel

Diameter 46-121 mm

Length 550-2500mm

Capacity 1500-2500kgs

Specifications

Ground Screw Pole Anchor
1) material: Q235 Low carbon Steel
2) surface treatment: Hot.dipped Galv.
3)allwelding

Ground Screw Pole Anchor

Hot Dipped galvanized Ground Screw Pole Anchor

Ground Screw Pole Anchor

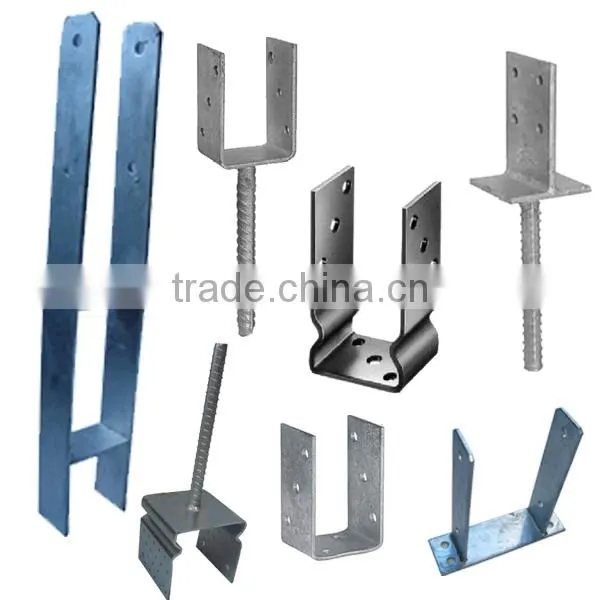

main specification:

Item no:	name	specification
1.	ground pole anchor	71 x 71 x 150 x 750 mm
2.	ground pole anchor	91 x 91 x 150 x 750 mm
3.	ground pole anchor	71 x 71 x 150 x 900 mm
4.	ground pole anchor	91 x 91 x 150 x900 mm
5.	ground pole anchor with plate	71 x71 x 150 x 150 mm
6.	ground pole anchor with plate	91 x 91 x 150 x 150 mm
7.	H-TYPE ground pole anchor	91 x 600 x 60 mm
8.	H-TYPE ground pole anchor	101 x 600 x 60 mm
9.	H-Type ground pole anchor	121 x 600 x 60 mm
10.	U-Type Ground pole anchor	91 x 60 x 150mm
11.	U-Type ground pole anchor	101 x 60 x 150 mm
12.	L-Type ground pole anchor	71 x 100 x 60 mm
13.	U-Type ground pole anchor with construction steel bar	91 x 60 x100 mm bar; 16 x 200 mm
14.	U-Type ground Pole ancvho U-Type ground pole anchor with construction steel	101 x 60 x 100 mm bar: 16 x 200 mm
15.	concrete ground pole anchor	71 x 150 x 350 mm
16.	concrerte ground pole anchor	91 x 150 x 350 mm
17.	U-Type Ground pole anchor with plate	71 x 200 x 200 mm
18.	U-Type Groun Pole anhhor with plate	91 x 200 x 200 mm
19.	U-Type Ground Pole anchor with plate	121 x 200 x 200 mm
