Help CenterExpanding Gate Valve
Related Products
Specifications
1. API 6A and ISO9001 Certified.2. Professional designers.
3. Good quality, nice service & competitive price.

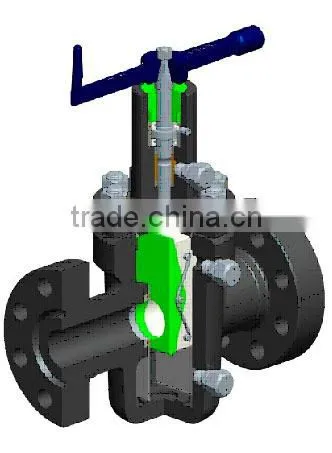

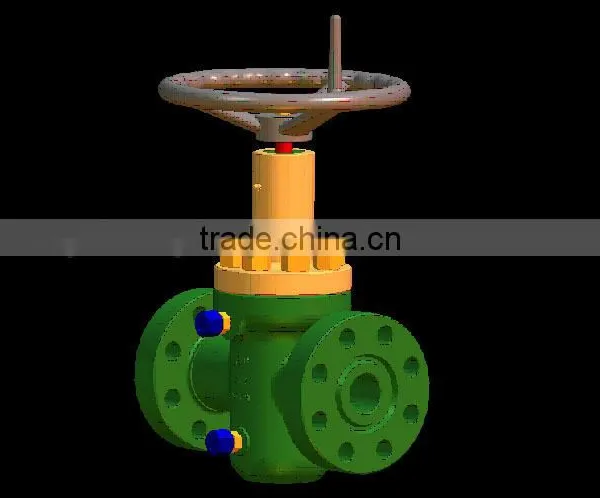

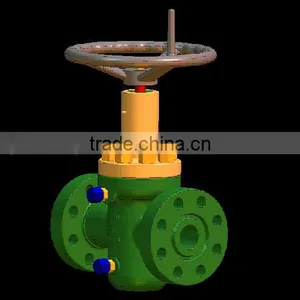

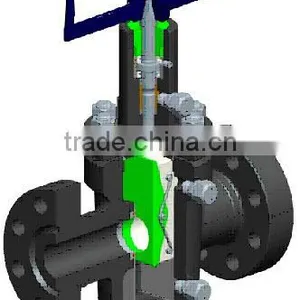

Expanding gate valve is a bi-directional, with a preferred sealing side, valve for application on wellheads, production trees and manifolds with working pressure at and below 5000 psi.
Specification:
Standard gate valve meet the requirements of
the latest edition of API 6A and / or API 6A SSV by replacing
the expanding gate with a slab gate. Material for H2S service
in accordance with NACE MR-01-75, latest edition.
Reliable Performance
♦Forged bonnet
♦Low operation torque
♦Metal-to-metal body/bonnet seal
♦Lubrication fittings for easy maintenance
♦Gate guides retain body lubricants and protect gate surface
♦Manual or actuated operation
♦Simple design assures low cost
♦Flanged or screwed outlets
Main technology parameters:
Working Pressure |
2M,3M,5M,10M |
Material Class |
AA,BB,CC,DD,EE,FF |
Product Specification Level |
PSL1,PSL2,PSL3,PSL3G,PSL4 |
Performance Requirement Level |
PR1,PR2 |
Nominal bore |
1-13/16,2-1/16,2-9/16,3-1/8,4-1/16,7-1/16 |
