Hot Sale Automatic cake forming machine
ITRODUCTION:
Cake Cream Stuffing Machine can be used in all kinds of cakes, cookies and cakes products
production, its simple and reasonable structure, simple operation, easy regulation, easy
disassembling and cleaning.Have the equipment to recycle the regulating handle, injection
feeding speed can be adjusted, and injection of high precision, maximum injection rate of
up to 1000 ml.Free to switch the foot note and automatic continuous note two note material,
three kinds of control modes including: foot (hand) control, photoelectric control, external
signal control makes the equipment interoperability will be improved.

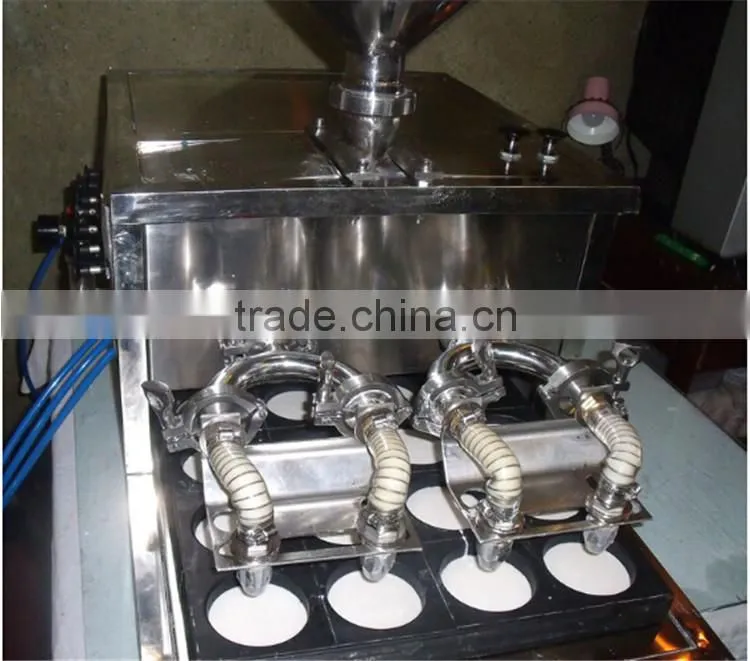

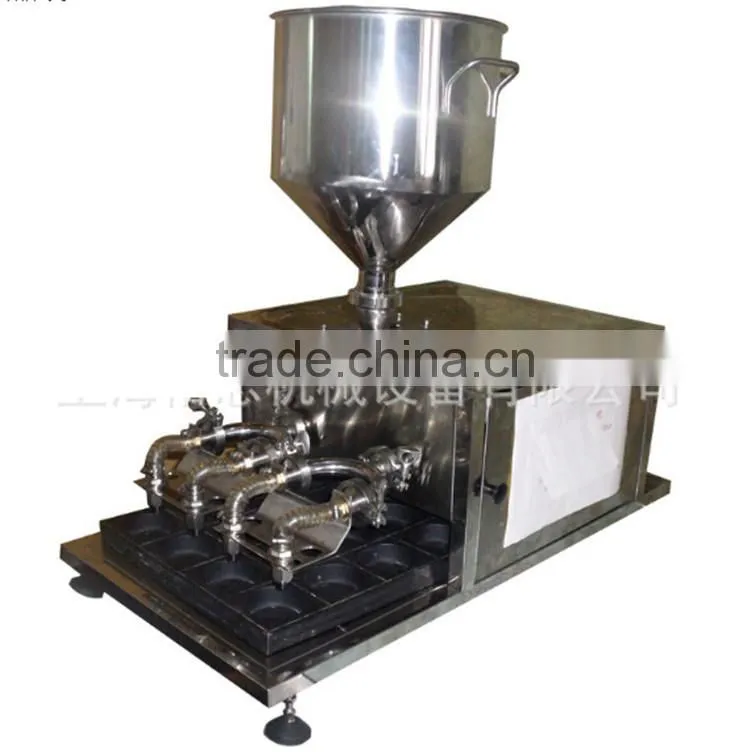

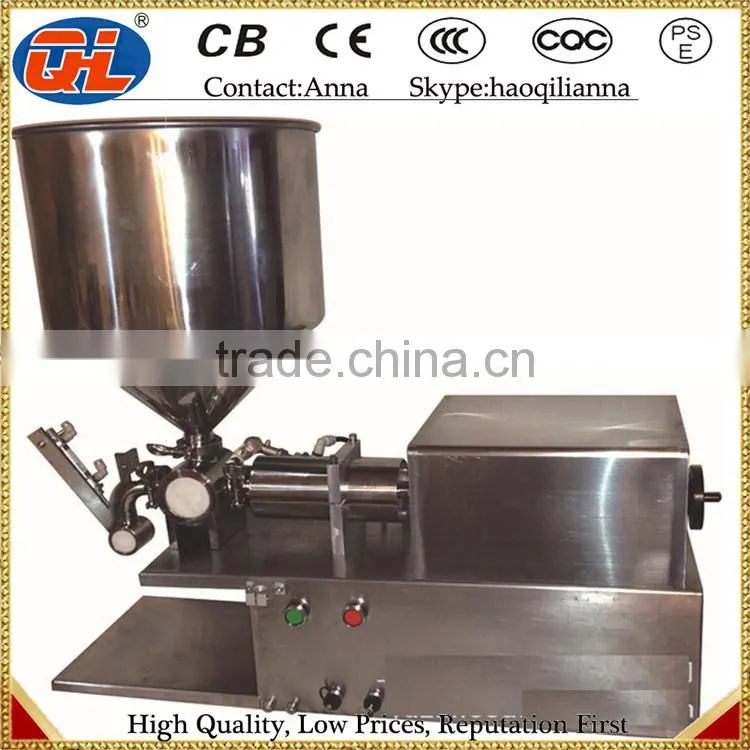

Model:HQL-4-DG

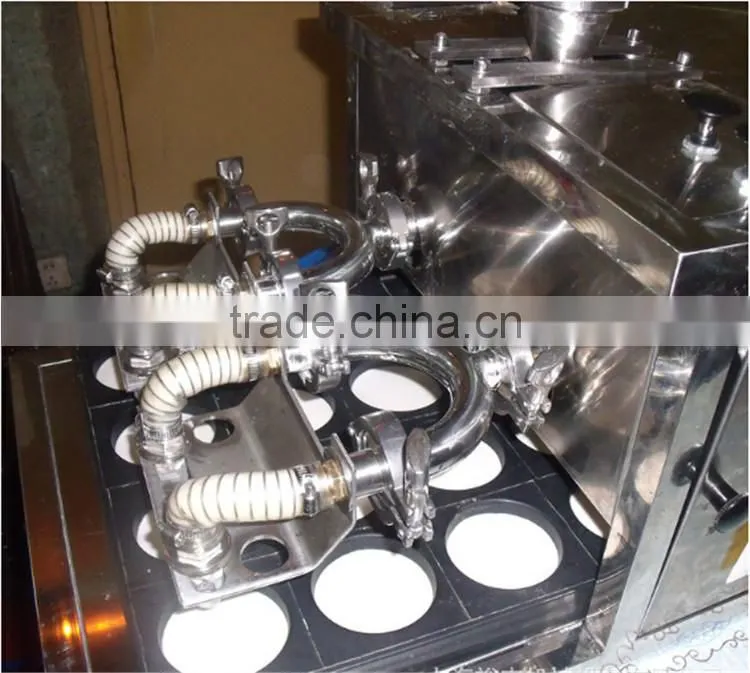

The device with different discharge head can be suitable for various occasions and the needs of the product;

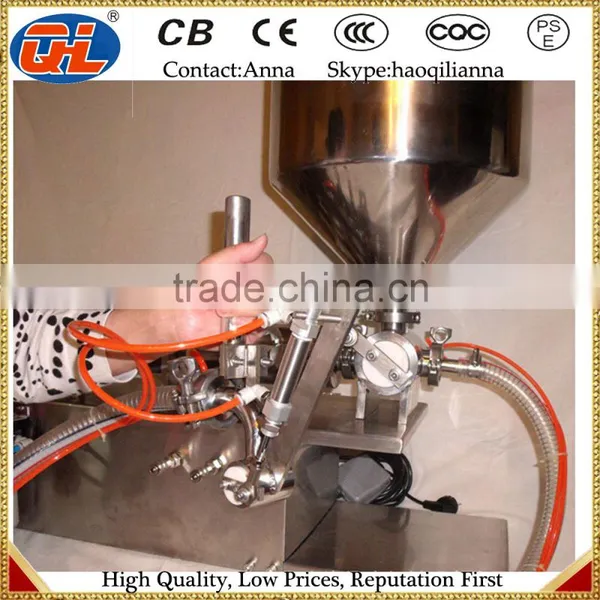

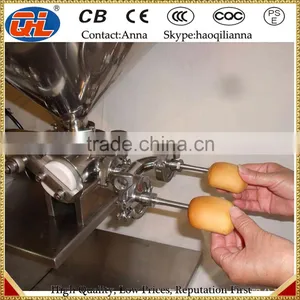

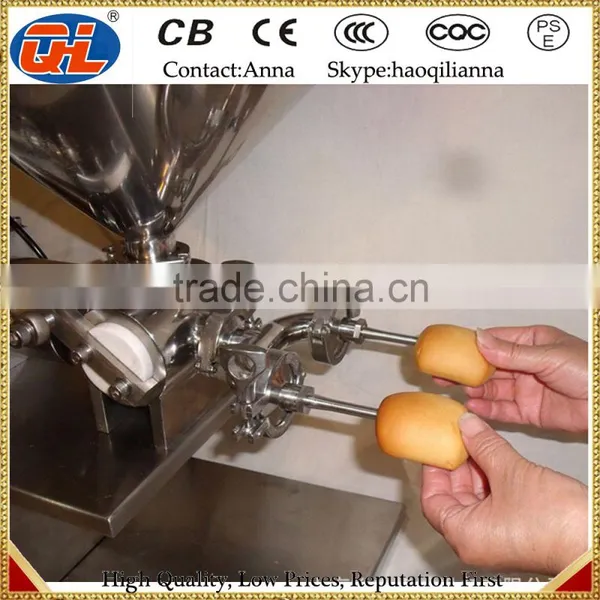

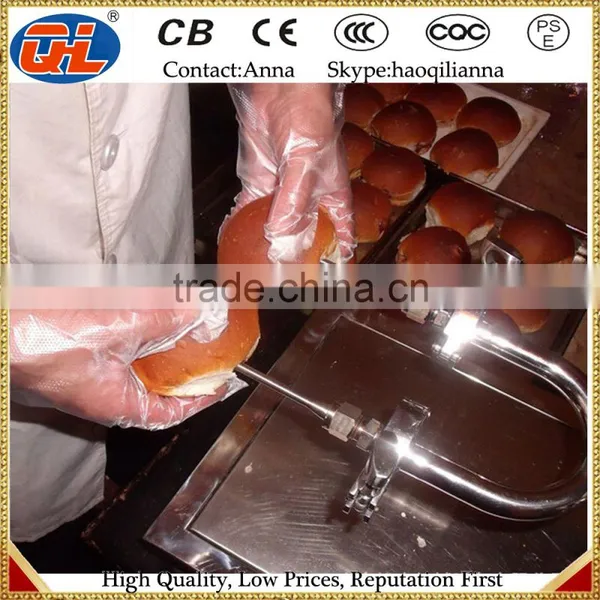

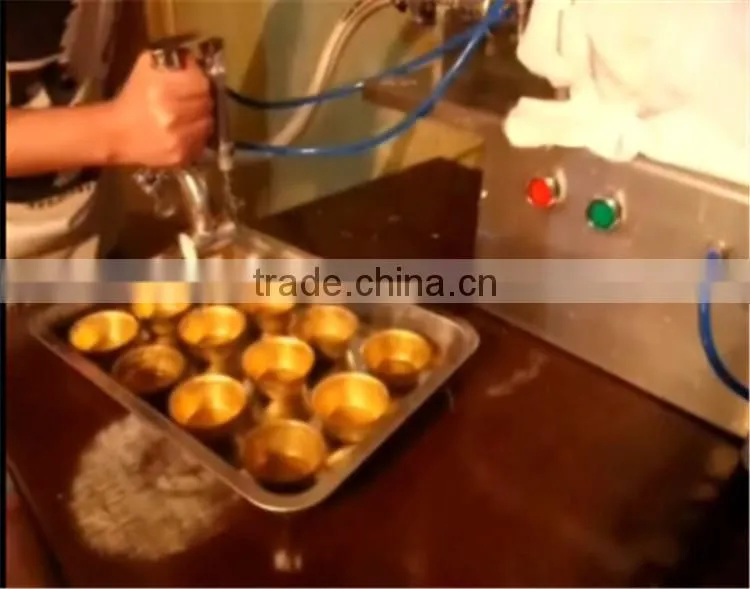

Cooperate with filling needle injection, can be used for bread filling and cake injection filling;Hand note material
is more convenient to customers move freely;And can customize according to customer requirements processing
long note, also can increase the transmission to realize automatic production.All use quick release coupling,
unpick and wash more convenient.This equipment is mainly power for pneumatic (air compressor), pneumatic
parts adopt Taiwan AirTac pneumatic components;Equipment as a whole stainless steel, material contact part
adopts 304 stainless steel material and PTFE (teflon, commonly known as "plastics king"), in line with the national
food safety requirements.The equipment is especially suitable for small products, many varieties of small and
medium-sized food enterprises, a bakery, cake, small workshops and startup of the individual producers.
Technical parameters:
Model:HQL-4-DG
Voltage:220V
Power:0.03kw
Max. depositing frequency:20times /min
Depositing amount:10-1000ml(adjustable)
Weight:40kg
Hopper capacity:14L
Volume:860mm*360mm*800mm
Air pressure:0.5-0.7MPa
Air consumption:≤0.15m³/min
Air compressor:
Air capacity:0.15m³/min
Power:1.1kw
Air pressure:0.7MPa

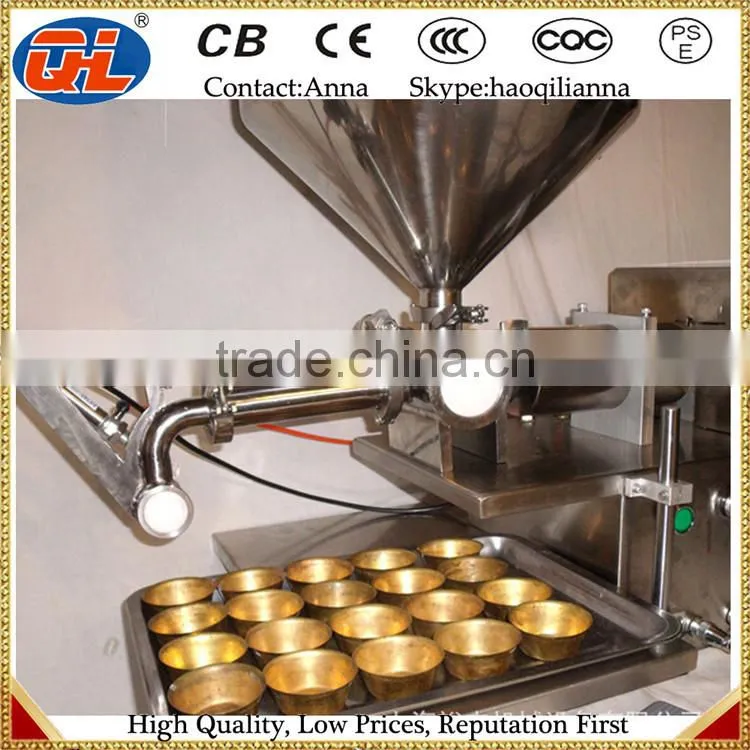

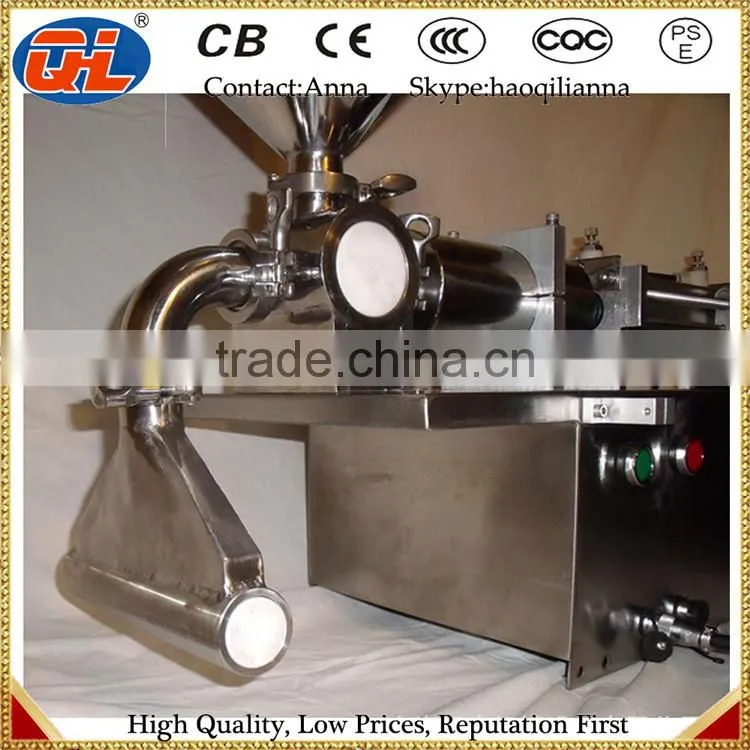

Model:HQL-4-DG2
Technical parameters:
Model:HQL-4-DG2
Voltage:220V
power:0.01kw
Air pressure:0.4-0.6MPA
Air consumption:≥0.1m3/min
Speed:4s per time
Max.Depositing amount:200ml
Depositing amount:adjustable
weight:50kg
Dimenision:1000mm*500mm*700mm

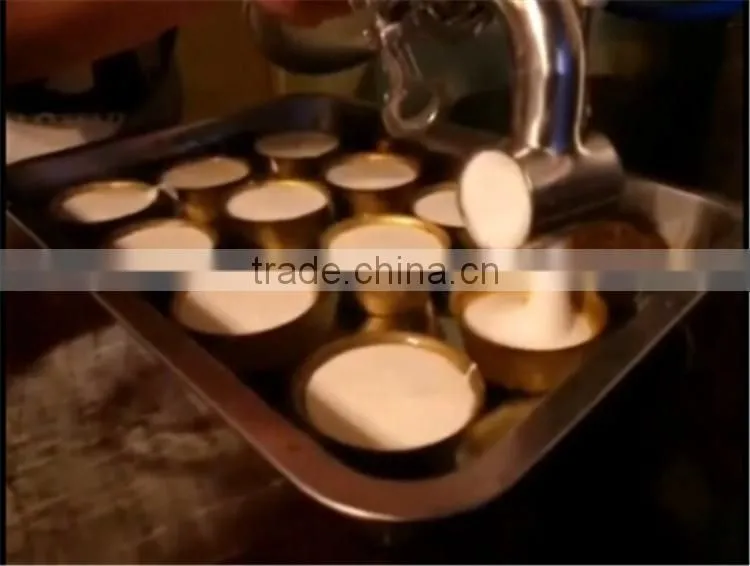

Finish product:
Service:
If you like our product, contact with me.
My cared:
