Specifications
gsm fixed cellular terminal1.Supports DTMF style
2.850/900/1800/1900MHZ
3.support audio,message
4.A wide range
latest technology products gsm fixed cellular terminal / dual-band gsm fwt in china supplier
gsm fixed cellular terminal
Technical Specifications
Technology standard
GSM /
Working frequency
GSM / GPRS 850MHz: 830MHz ~ 865MHz / (uplink / downlink)
GSM / GPRS 900MHz: 880MHz ~ 915MHz / (uplink / downlink)
GSM / GPRS 1800MHz: 1710MHz ~ 1785MHz / (uplink / downlink)
GSM / GPRS 1900MHz: 1850MHz ~ 1910MHz / (uplink / downlink)
Receiver sensitivity
GSM / GPRS 900/1800 / 1900MHz: better than -102dBm / 200KHz
Maximum transmit power
GSM / GPRS 850MHz: 33dBm (+/- 2dBm)
GSM / GPRS 900MHz: 33dBm (+/- 2dBm)
GSM / GPRS 1800 / 1900MHz: 30dBm (+/- 2dBm)
Appearance Style
Dimensions (W × D × H)
220mm × 178mm × 80mm
Weight
Less than 990g (with battery)
Advantages:
|
gsm fixed cellular terminal
|
Technical Specifications
Technology standard
GSM
Working frequency
900 / 1800MHz
Receiver sensitivity
Better than -104dBm
Maximum transmit power
≥23dBm
The maximum received power
-25dBm
Appearance Style
Dimensions (W × D × H)
198x145x45mm
Weight
About 400g (with battery)
The main function
Voice
Stand by
External Interface
Power Interface
Single Connector
RJ11 interface
Stand by
SIM card / UIM card
Stand by
Power Specifications
AC input
100V ~ 240V
DC output
5V, 1A
Built-in battery *
Type
Rechargeable lithium batteries
Capacity
3.6V, 1000mAh
Typical talk time
4 hours (depending on the network environment)
Typical standby time
50 hours (depending on the network environment)
Product Name: GSM fixed wireless terminal, GSM fixed stations, GSM FCT analog gateways, GSM, GSM fixed wireless terminal connected alarm systems, VoIP gateways, billing lists.
Features:
1. Support of international, national, wireless, fixed / mobile voice services
2. Do not change the telephone dialing habits, supports fixed, mobile operators
3. Support power-off work
4. LED display, the information signal, switch, working status
5. Built-in watchdog circuit duty, machine failure, will be restarted.
6. Charging polarity signal provided
7. Provide standard communication voltage, PABX (PABX) linked
. DTMF support type, support for caller ID
9. Auto IP function, multiple IP settings
10. International and domestic, such as wireless called all permissions
11 kinds. Encryption settings, such as PIN code, machine card lock function
Applies to:
For public phone supermarkets, business, marketing company, car, home and remote regions.
Connecting voice systems, burglar alarm kits, switches, telephones, etc.

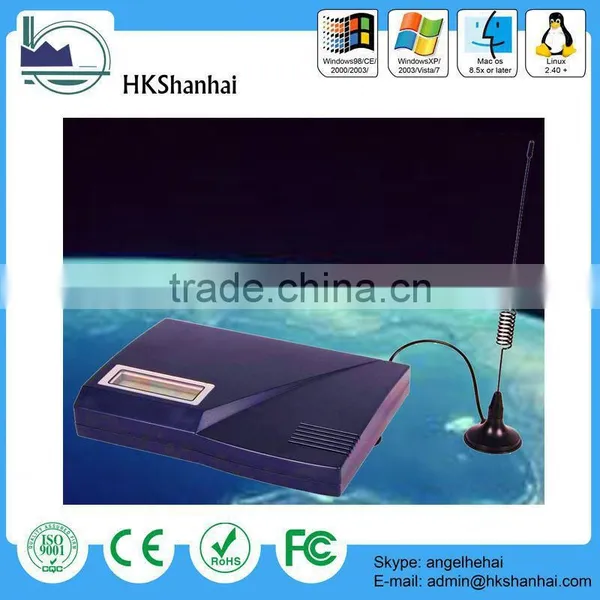

Product Photos:
