Specifications
gsm modem pool1.Send and receive data and SMS
2.Double tone multi-frequency function(DTMF)
3.Size:76x54x25mm

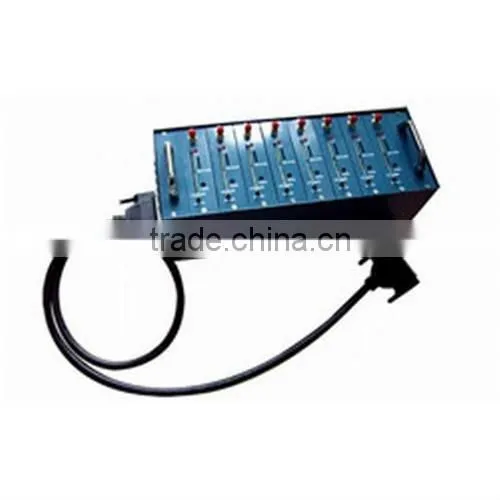

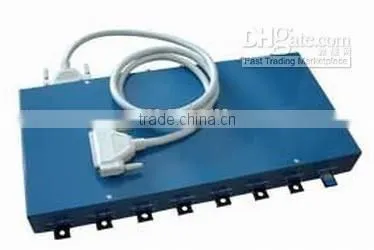

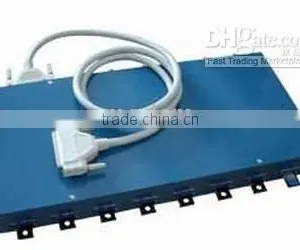

GSM MODEM POOL(4-8 Port) Wavecom Q2303A Module
Industrial design
- Aluminum casing
- DB9 RS232 interface with voice function
- Based on Simcome 300 Module
- 3V 8 SIM card slot
- SIM application Toolkit
- Double tone multi-frequency function(DTMF)
- Send and receive data and SMS
- Antenna with high sensitivity
- Always on-line
- Comply with ETSI GSM Phase2+Dual-band:
- Class 4(2W@900MHz)
- Class 1(1W@1800MHz)
- Input voltage:6V-36V DC
- Input current:100-140mA
- Working temperature:-20°C±55°C
- Storage temperature:-25°C±70°C
- Size:76×54×25mm
- Weight:2000kg
- Accessories:AC/DC adaptor,DB9 RS232 cable,antenna,2 mounting plates,CD
- Data transfer
- CSD up to 14.4kbps,USSD,Non transparent mode,V.110 support different character framing mode e.g. 8N1,7E1
-*Tel:+86-755-83659579
-*Fax:+86-755-83659579
- Group 3,Class 1,2 SMS
- Point-to-point MO and MT SMS cell broadcast Text and PDU mode
- Audio
- Half rate(HR)
- Full rate(FR)
- Enhanced Full Rate (EFR)
- Interfaces
- Plug in power supply
- Mini-SIM card reader
- Antenna connector SMA (male)
- Standard serial Port (DB-9)
- Operating status LED
