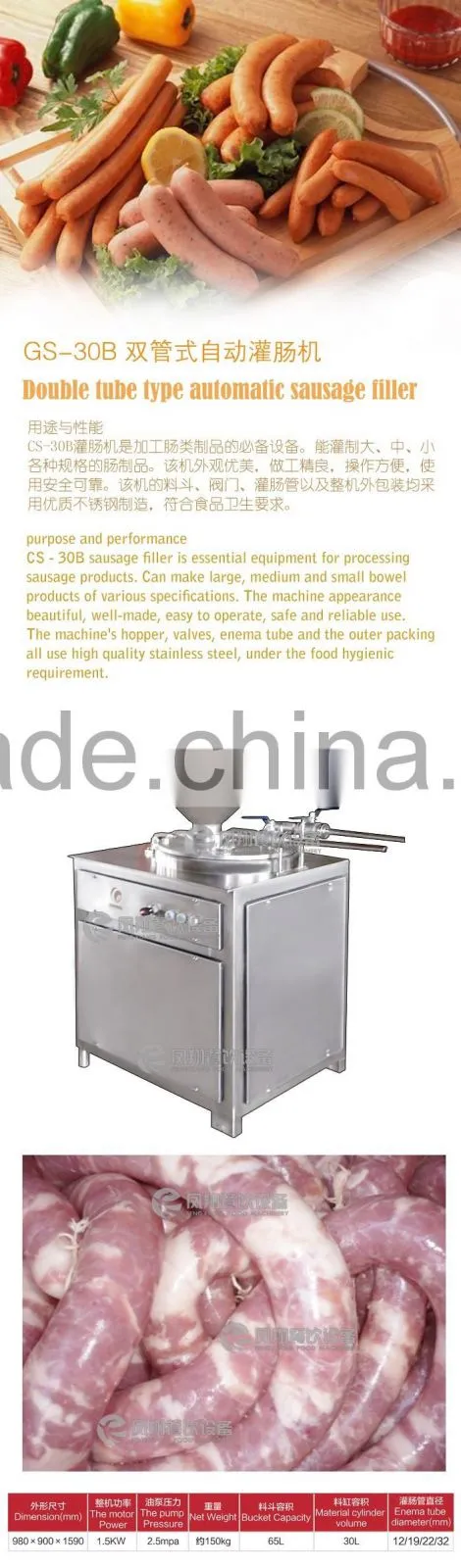

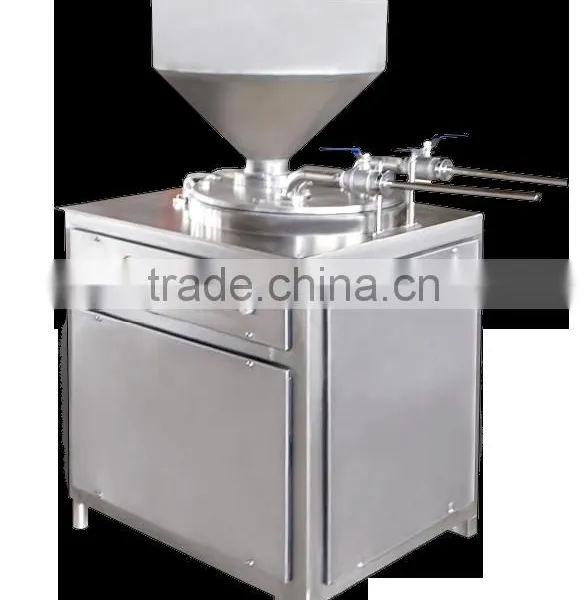

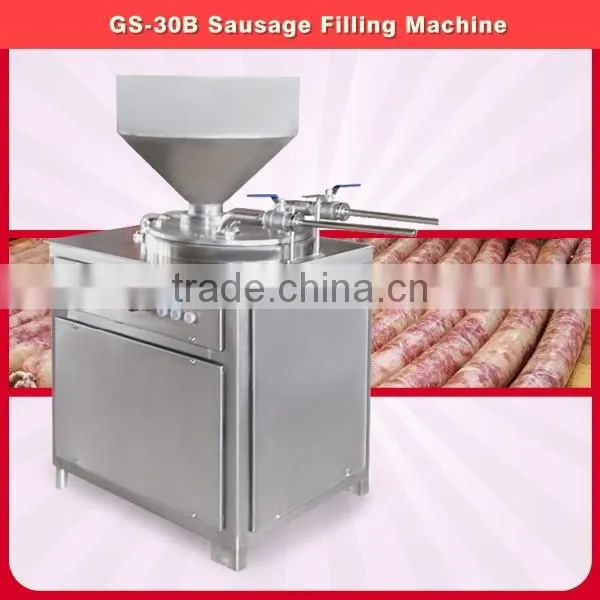

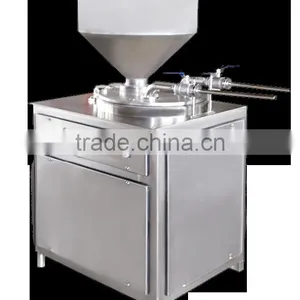

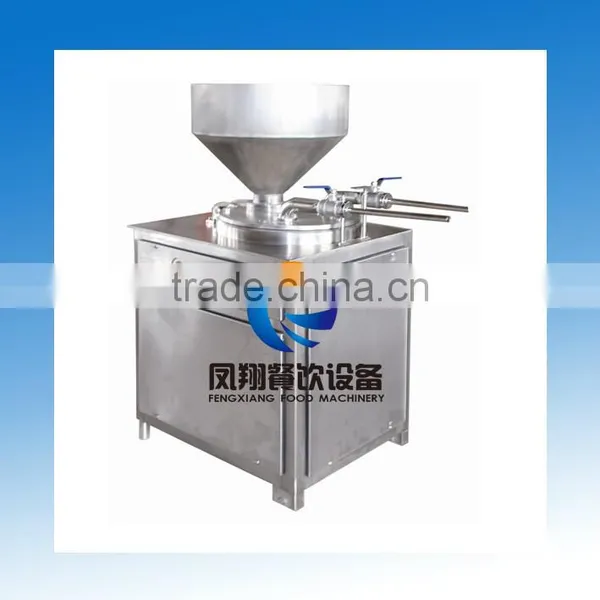

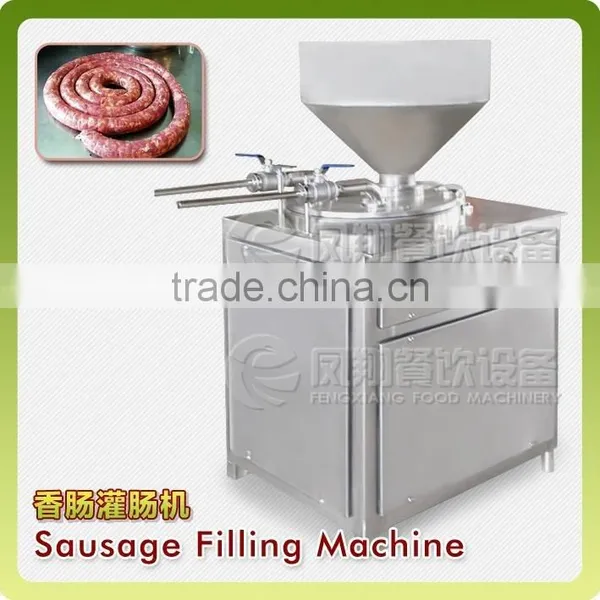

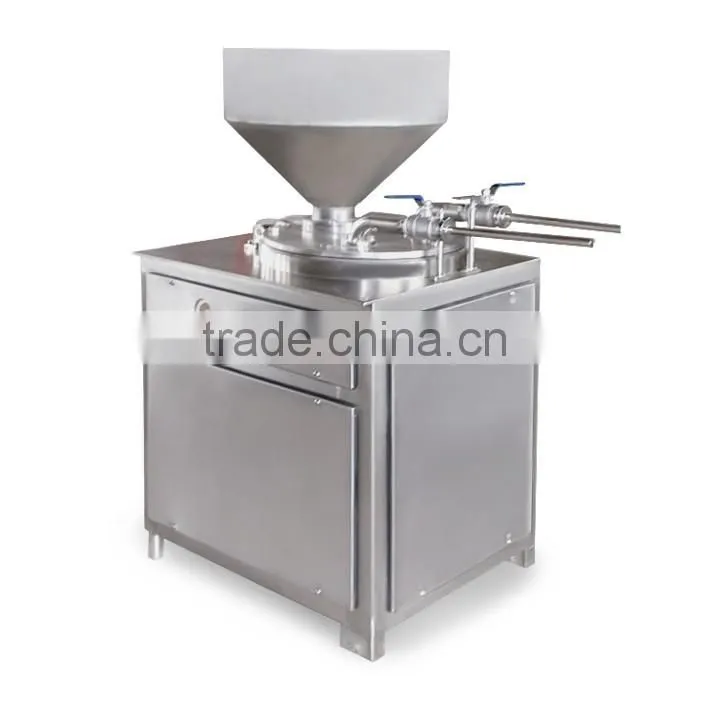

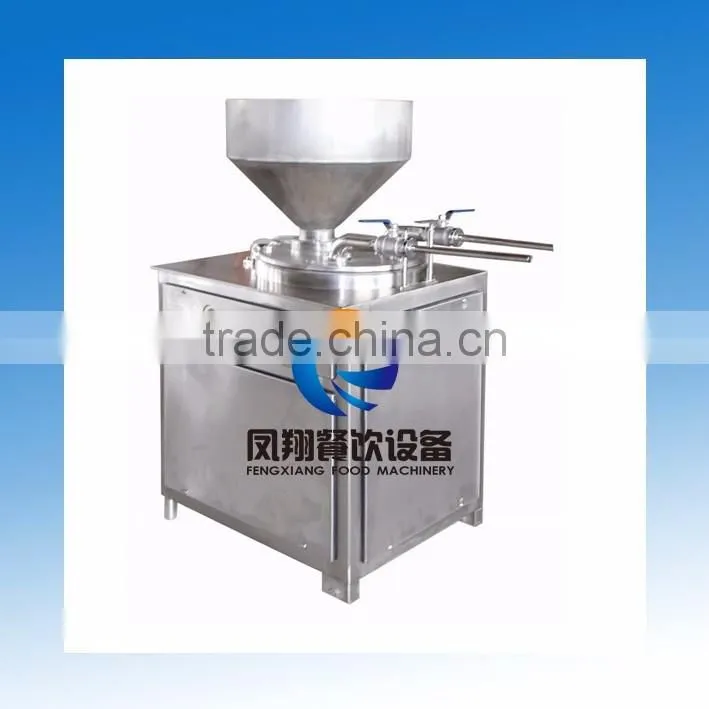

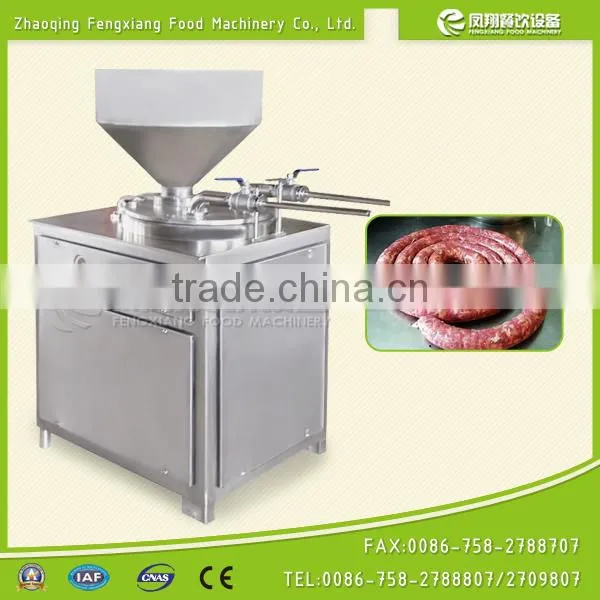

GS-30B Best Price Double Tube Type Automatic Sausage Filler/Sausage Making Machine
Features
1 purpose and performance

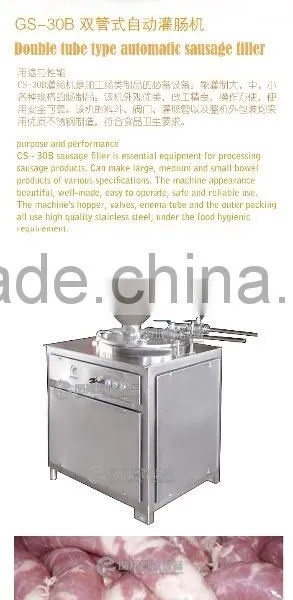

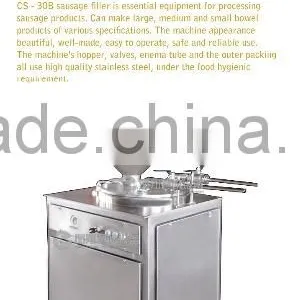

GS - 30 b sausage filler is essential equipment for processing sausage products. Can make large, medium and small bowel products of various specifications. The machine appearance beautiful, well-made, easy to operate, safe and reliable use. The machine's hopper, valves, enema tube and the outer packing all use high quality stainless steel, under the food hygienic requirement.
2 the structure and working principle
GS - 30 B sausage filling machine mainly consists of frame, hopper, working cylinder, oil cylinder, hydraulic operating system and electrical system. Through the lever or handle (user options or manual ball valve pneumatic ball valve), control the reciprocating movement of the piston, absorption and packed material, to achieve continuous enema.
Main Parameter:
Bucket capacity: 65 L
Material cylinder volume: 30 L
The motor power: 1.5 kw
The pump pressure: 2.5 mpa
Enema tube diameter: 12 mm 19 mm and 22 mm to 32 mm (optional)
Dimension: 980 x900x1590mm
The whole net weight: about 150 kg
Certificate
Zhaoqing Fengxiang Food Machinery CO., Ltd. Chongqing Branch
- Packaging: by standard export plywood case
- Delivery time: in 15 workdays after payment
