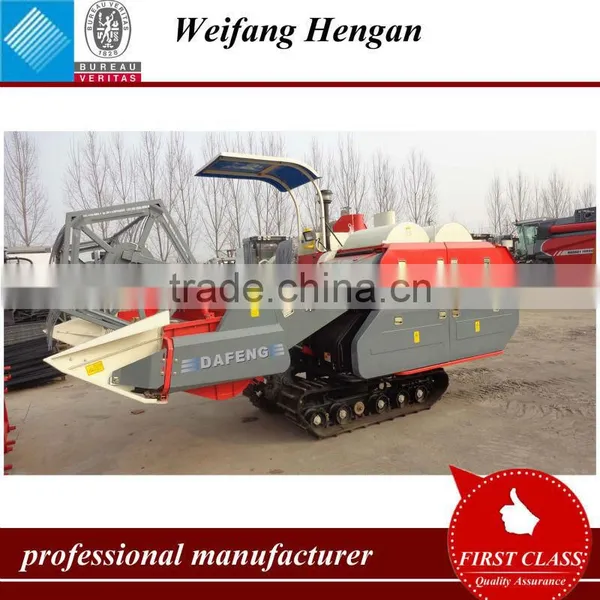

small combine harvester
1. 55kw diesel engine, 2 meters cutting width, hydrostatic transmission, high efficiency.
2. Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss.
3. Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower the noise and vibration.
main performance
Total loss |
Rice≤3.0 |
Wheat≤1.2 |
rape≤8 |
Roughage content |
Rice≤2.0 |
Wheat≤1.2 |
rape≤6 |
Broken rate |
Rice≤1.5 |
Wheat≤1.2 |
rape≤0.5 |
Reliability |
≥93% |
||
Structure type |
Pedrail self-propelled whole-feed type |
||
Matched power |
55kw |
||
Working hour productivity |
rice,wheat 0.2~0.47 hm2/h |
rape0.1~0.3 hm2/h |
|
Average oil consumption per hectare |
rice,wheat≤28 kg/hm2 |
rape≤30 kg/hm2 |
|
Dimension (length x width x height) |
rice,wheat 4750x2350x2360mm |
rape 5020x2450x2300mm |
|
Structure quality |
rice,wheat 2350kg |
rape 2450kg |
|
Harvesting width |
2000mm |
||
Feed |
rice,wheat 2.0 kg/s |
rape 1.5 kg/s |
|
Ground clearance |
240mm |
||
Steering |
Hydraulic |
||
Gear box |
Mechanical gear box +(HST)Hydrostatic transmission |
||
Running speed |
0~2.88,0~4.54,0~7.56 m/s |
||
Header auger type |
Screw auger eccentric extensible link |
||
Reel type |
Eccentric spring toothed |
||
Conveyer type |
Harrow toothed |
||
Fan type |
Centrifugal type |
||
Re-threshing type |
Blade rotary type |
||
Unloading type |
Manual type |
||
Grain tank |
0.5/1.0 m3 |
||
Pedrail(distance x pitch x width) |
90 x 48 x 400 mm |
||
double re-threshing rollers ,the grain is very clean
