Automatic Hot Foil Stamping and Die Cutting Machine 1050Qdie Board Laser Cutting Machine

Automatic Hot Foil Stamping and Die Cutting Machine 1050Qdie Board Laser Cutting Machine photo-1

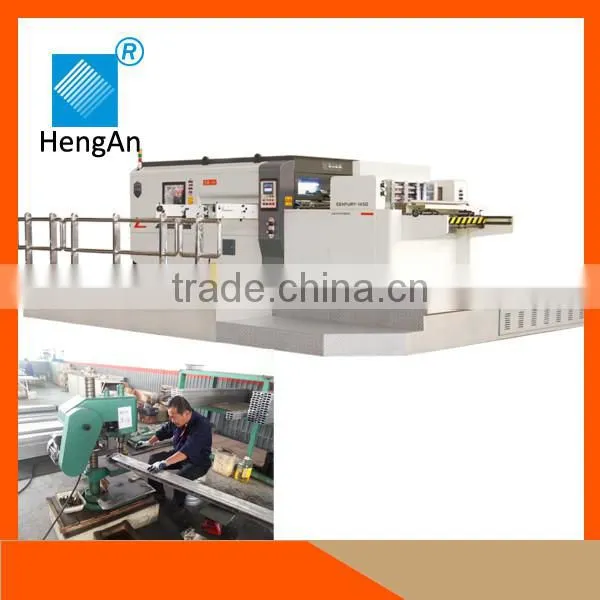

Automatic Hot Foil Stamping and Die Cutting Machine 1050Qdie Board Laser Cutting Machine photo-2

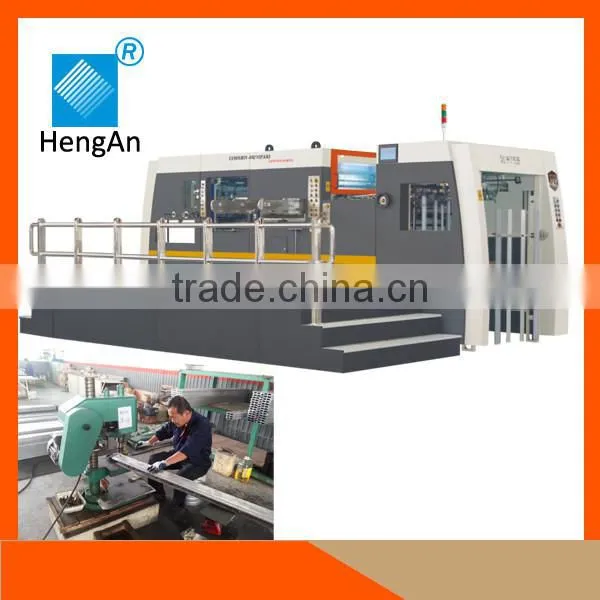

Automatic Hot Foil Stamping and Die Cutting Machine 1050Qdie Board Laser Cutting Machine photo-3

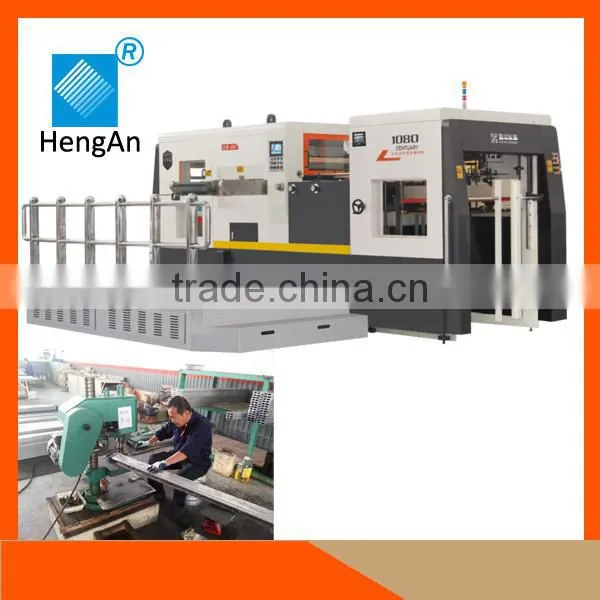

Automatic Hot Foil Stamping and Die Cutting Machine 1050Qdie Board Laser Cutting Machine photo-4

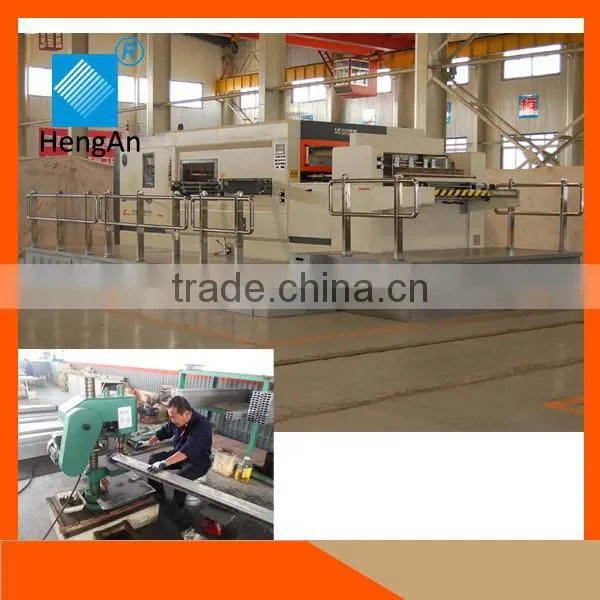

Automatic Hot Foil Stamping and Die Cutting Machine 1050Qdie Board Laser Cutting Machine photo-5

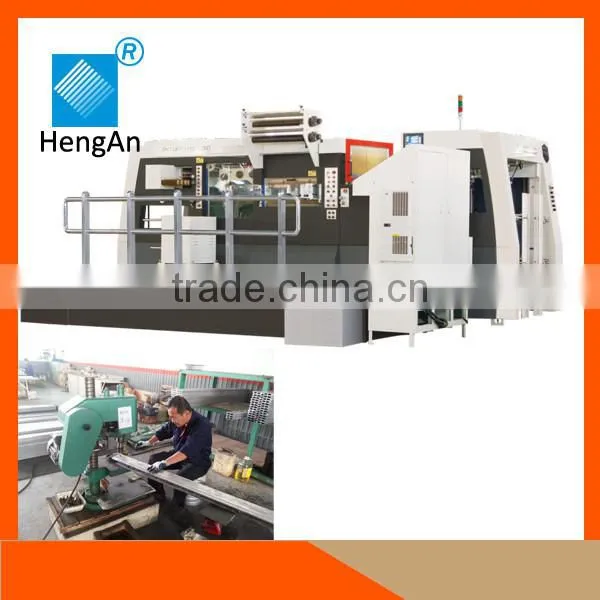

Automatic Hot Foil Stamping and Die Cutting Machine 1050Qdie Board Laser Cutting Machine photo-6
US$ 229,510 - 237,705 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Commodity, Food
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Commodity, Food
Packaging Type Cartons
Packaging Material Paper
Automatic Grade Automatic
Driven Type Electric
Voltage 400V±5%, triphase, 50Hz
Power 20KW
Place of Origin Shandong, China
Brand Name Heng An
Model Number 010
Weight 15.5t
Dimension(L*W*H) 5050x4400x2440 mm
Certification CE & ISO
After-sales Service Provided Engineers available to service machinery overseas

automatic hot foil stamping and die cutting machine 1050Q



automatic hot foil stamping and die cutting machine 1050Qdie board laser cutting machine



 Specification



Name
MZ1050
Max. paper size
1050×750 mm
Min. paper size
400×360 mm
Max. cutting size
1040×730mm
Max. cutting pressure
300ton
Stock range
Cardboard90-2000g corrugated board<=9mm
Cutting pression
 ±0.1mm
Maxmechanical speed
7500s/h
Cutting rule height
23.8mm
Pressure adjusting range
 0-3mm
Min. front margin
10mm
Inner chase size
1140×756mm
Tower power
 20kW
Machine dimension
5050x4400x2440 mm
Total weight
15.5t
Control system
PLC control system
Adjusting system
Frequency stepless speed regulation
Electric power&voltage
400V±5%, triphase, 50Hz
Working environment temperature
 -10℃~40℃
Humidity

Less than 50%@40°C or 90%@20°C
Altitude

up to 1 000 m above mean sea level
Air compressor displacement
1.0 m³/min (motor power 7.5KW)





Introduction



MZ1050 Automatic Die Cutting Machine(With full stripping) is special equipment which is suitable for high quality colored cardboard box creasing and die cutting. The machine adopts more advantages from other die cutters domestic and abroad.





                automatic hot foil stamping and die cutting machine 1050Qdie board laser cutting machine

                                                                                      automatic hot foil stamping and die cutting machine 1050Qdie board laser cutting machine







About us



automatic hot foil stamping and die cutting machine 1050Qdie board laser cutting machine

Our products cover a wide range from Two Star---Economic Type Platen Die Cutting Machine,Three Star---Semi Automatic Platen Die Cutting Machine,Four Star---Semi Automatic Platen Die Cutting Machine With Stripping,Five Star---Automatic Platen Die Cutting Machine,Six Star---Automatic Platen Die Cutting Machine With Stripping,Seven Star---Hot foiling die cutting machine, Automatic Embossing and Die Cutting Machine. the advantages of our products can process corrugated board as well as paperboard ,applied more widely, easy operation, stable function, safety& stability and so on.
