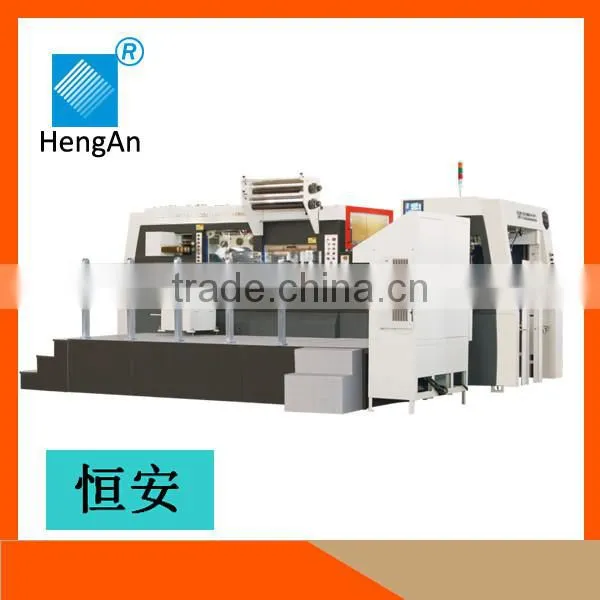

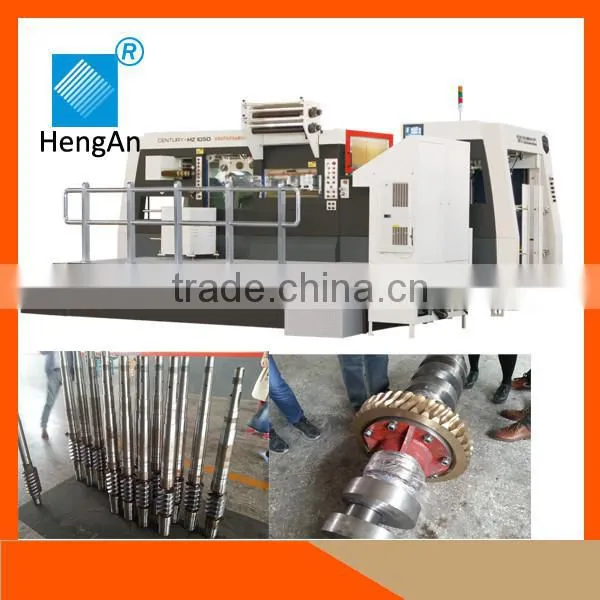

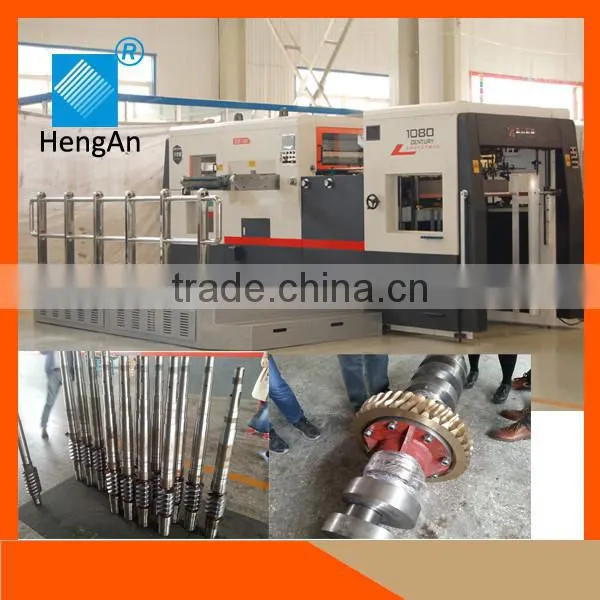

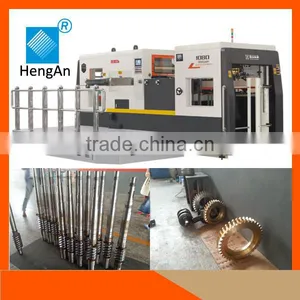

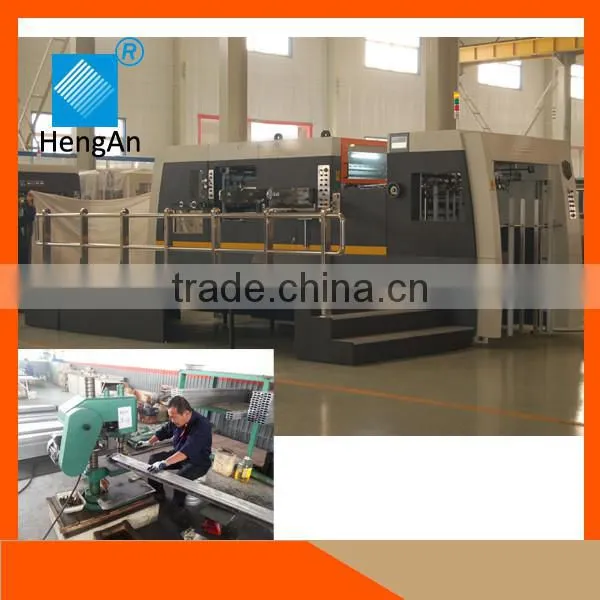

High Speed Automatic PAPER Die Cutting Machine MZ1300S,1650S
US$ 1 - 275,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Commodity, Food
Packaging Type:
Cartons, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Economical Type Semi-automatic Die Cutting Machine MWB1450EUS$ 229,510 - 237,705MOQ: 1 Set -
High Quality Automatic Die Cutting Machine MZ1080Q With Waste CleanupUS$ 1 - 275,000MOQ: 1 Set
-
China Semi-automatic Corrugated Paper Die Cutting Machine MWB1620Q With Waste CleanupUS$ 1 - 275,000MOQ: 1 Set
-
Automatic Hot Foil Stamping and Die Cutting Machine 1050Qlabel Die Cutting MachineUS$ 229,510 - 237,705MOQ: 1 Set
-
2014 China Hot Sale High Speed Automatic Die Cutting Machine MWZ1650GUS$ 1 - 275,000MOQ: 1 Set
Condition
New
Application
Apparel, Beverage, Commodity, Food
Packaging Type
Cartons, Case
Packaging Material
Paper
Automatic Grade
Automatic
Driven Type
Electric
Power
27kw
Place of Origin
Shandong, China
Brand Name
Heng An
Model Number
MZ1300S
Weight
~29T
Dimension(L*W*H)
11140*3405*2566MM(work step not included)
Certification
CE & ISO
After-sales Service Provided
Engineers available to service machinery overseas

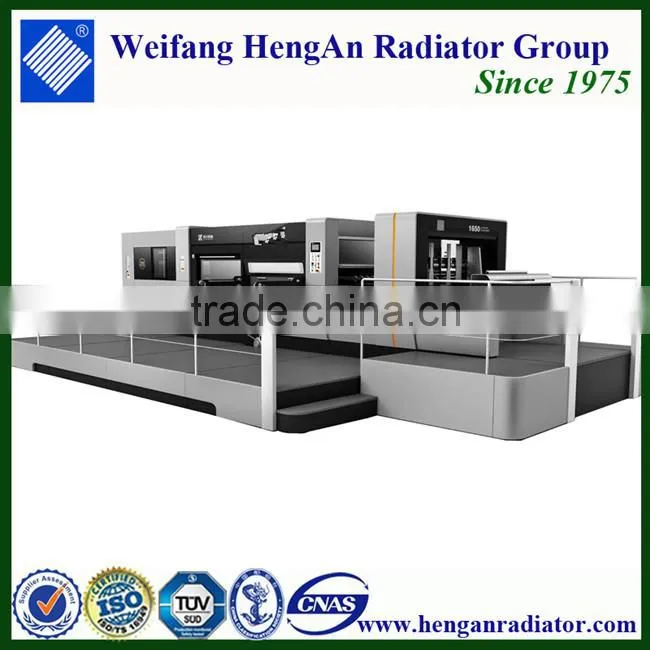

high speed automatic PAPER die cutting machine MZ1300S,1650S
1.Paper die cutting machine advantage
- Front edge paper feeding
-
All clearance of papaer waste
- ISO certificate & CE certificate,China famous brand for more than 20 years
- High speed & automotive waste clearence, 5500 sheet/hour
- Matural production technology and qulitified components
- Long life to use
2.Paper die cutting machine Specifications:
| Type | 1300s | |||||
| Max Paper Feeding Size | 1330*980mm | |||||
| Min Paper Feeding Size | 550*480mm | |||||
| Max Cutting Size | 1300*960mm | |||||
| Max Presser | 300*10000N | |||||
| Paper Application | Corrugated paper(1-7mm) | |||||
| Cutting Precision | ±0.5mm | |||||
| Efficiency | 4800 sheet/h | |||||
| Knife Height | 23.8mm | |||||
| Min Gripper Waste | 10mm | |||||
| Max Model Size | 1330*980mm | |||||
| Power | 27kw | |||||
| Dimension |
11140*4600*2566mm (work step included) |
|||||
| Dimension |
11140*3405*2566mm (work step not included ) |
|||||
| Gross Weight | ~29T | |||||
3.Paper Application:

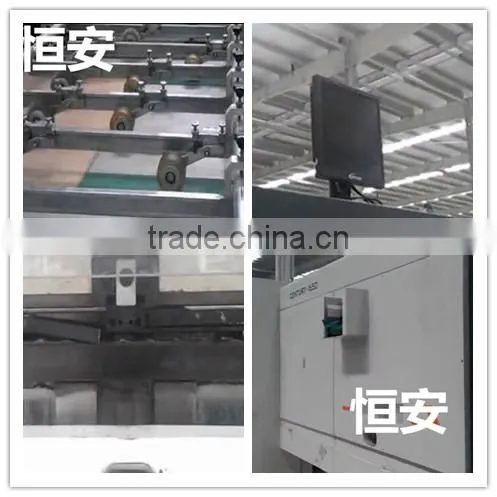

3.More details about MZ1300S:
Attention: this automatic die-cutting machine also including other three different size: MWB1050/1160/1300/1450/1620. And the detailed information please see our product cataloge.
