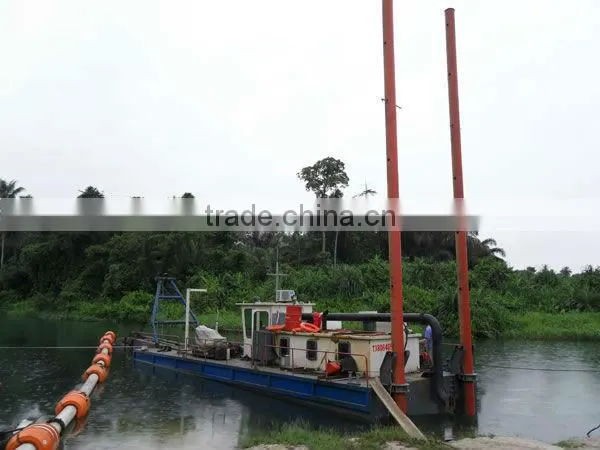

Sand Dredge Floate
1).Completely assembled and fully tested afloat before delivery
2).Simple ,rapid assembly and dismantling
3).Standard design, allowing early delivery and low price Sand Dredge Floate
4).Spare parts available from stock
5).Reliable hydraulic system
6).Fresh water engine cooling system
7).One man operation
8).Efficient fuel consumption
The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, and hooks at the bottom. Further salient features of the vessel are the compact dredge pump drive incorporating a reduction gear with integrated pump bearing and a fresh water engine cooling system, based on the well cooling principle.
1.--Parameter
Can modify and adjust according to customers' project requirement.
No. |
Principal Particulars |
|||||||
1 |
Model |
HACSD200 |
HACSD260 |
HACSD300 |
HACSD350 |
HACSD400 |
HACSD450 |
HACSD500 |
2 |
Max. Production Capacity(solid sand) |
100m3/h |
150m3/h |
220m3/h |
300m3/h |
400m3/h |
500m3/h |
640m3/h |
3 |
Max. Discharge Distance |
900m |
1000m |
1000m |
1200m |
1300m |
1400m |
1700m |
4 |
Dredge Pump Suction/discharge pipe dia.(mm) |
250/200 |
300/250 |
350/300 |
400/350 |
450/400 |
400/450 |
550/500 |
5 |
Main Engine power(KW) |
176 |
294 |
330 |
470 |
735 |
735 |
882 |
6 |
Cutter Power(KW) |
25 |
30 |
50 |
70 |
75 |
110 |
140 |
7 |
Hydraulic Ladder winch |
30KN 100m |
40KN 100m |
40KN 100m |
60KN 110m |
80KN 110m |
100KN 120m |
100KN 120m |
8 |
Hydraulic Swing winch(2sets) |
30KN 100m |
40KN 100m |
40KN 100m |
60KN 100m |
80KN 110m |
100KN 110m |
100KN 110m |
9 |
Spuds |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
10 |
Control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
.
2.--Customers visit our Factory
We will show you detailes and much more things about our Group company.Many senior Engineers and professional technicians composed of the Class One Technical Department.
3.--Perfect manufacturing technique and welding level make the dredger in the high grade,give you best visual effect.
4.--Shippment :along with spare parts ,pipelines and HDPE Floats and so on.
All ofthe spare parts of the dredger can be available within one week!
5 .--more details please don't hesitate to contact me.
Wish you a nice day!
