Pro Sand Dredge

Pro Sand Dredge photo-1
US$ 100,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cutter Suction Dredger
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Cutter Suction Dredger
Power Type Diesel
Dredging Depth 15 m
Draught 2500 cm
Place of Origin Shandong, China
Brand Name Heng An
Model Number HACSD
Weight 80-120t
Certification ISO BValibaba
Warranty 12months,hull for 3years
After-sales Service Provided Engineers available to service machinery overseas

Sand Dredge







1.Feature:



1).Completely assembled and fully tested afloat before delivery



2).Simple ,rapid assembly and dismantling



3).Standard design, allowing early delivery and low price



4).Spare parts available from stock

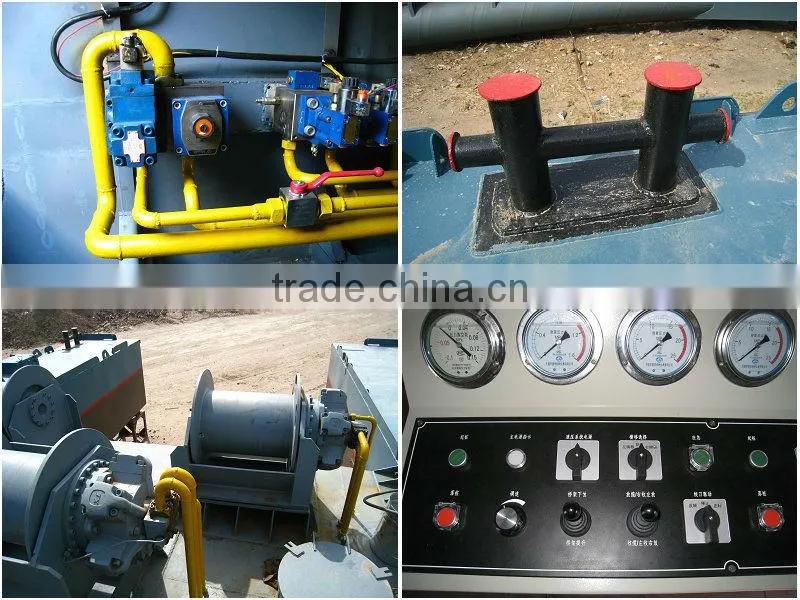

5).Reliable hydraulic system



6).Fresh water engine cooling system







2.Basic Specification:



Can produce according to your detailed requirement.



Basic CSD Parameter
Model HACSD200 HACSD260 HACSD300 HACSD350 HACSD400 HACSD450 HACSD500
Dredger Body
Dimensions(L*W*H) 12.5*4.6*1.3 12.5*5.8*1.6 14.5*5.8*1.8 14.5*5.8*1.8 22*6.4*2 26*7*2 26*7.1*2.2
Engine room 7.5*2.25*1.4 8*2.8*1.6 9*3.2*1.8 9.5*3.2*1.8 12*3.4*2 14*3.4*2 14*3.5*2.2
Dredging data
Standard dredging depth    6-7m 6-8m 8-10m 10-12m 12-14m 12-14m 12-14m
Pump model 8/6” 10/8” 12/10” 12/10” 14/12” 14/12” 450WN
Water flow 450m3/h 800m3/h 1100m3/h 1500m3/h 1900m3/h 2500m3/h 3200m3/h
Suction pipeline diameter(mm/inch) 260 300 350 350 400 450 500
Discharge pipeline diameter(mm/inch) 200 260 300 350 400 450 500
Devices
Total power KW 176kw 258kw 353kw 480kw 640kw 930kw 1200kw
Generator set(kw) 24 24 24 24 24 36 36
Cutter head
Diameter (mm) 850-30 950-40 1100-50 1200-80 1300-110 1500-120 1700-140
Winch(hydraulic)
Ladder winches LTJC-3000 LTJC-4000 LTJC-4000 LTJC-6000 LTJC-6000 LTJC-10000 LTJC-12000
Swing winch LTJC-3000 LTJC-4000 LTJC-4000 LTJC-6000 LTJC-6000 LTJC-8000 LTJC-10000
Spuds
Quantity 2 2 2 2 2 2 2
Spuds length*diameter(mm) 8600*273 11000*300 13000*350 15000*377 17000*450 17000*550 17000*600
Spuds weight/pic 900kg 1500kg 2000kg 2500kg 3900kg 4500kg 5000kg













3.Produce:We are Group company built in 1975 with strong economic conditon and wide workshop and many professional senior engineers and technicist.

Pro Sand DredgePro Sand Dredge

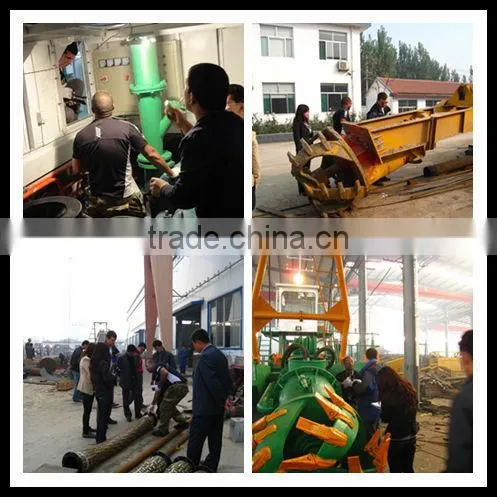

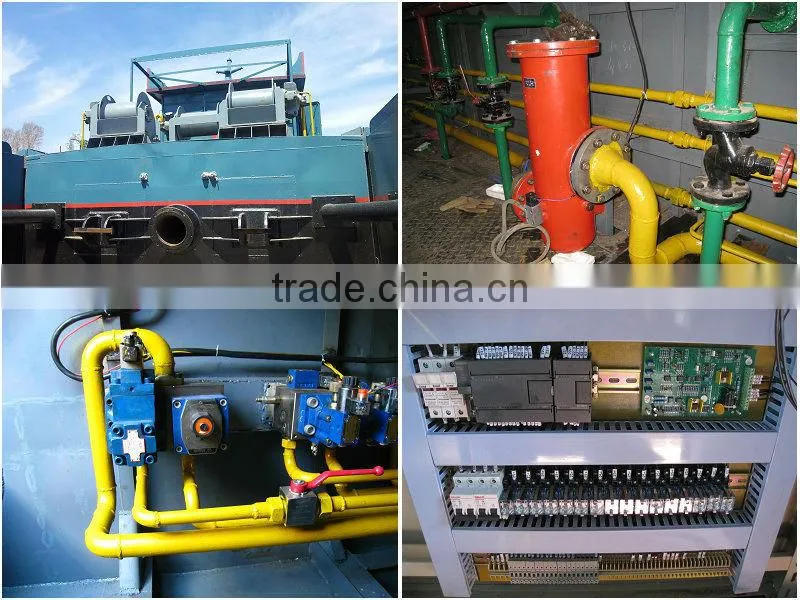

Perfect manufacturing technique and welding level make the dredgeing machine in the high grade,give you best visual effect.

Pro Sand DredgePro Sand DredgePro Sand Dredge Pro Sand Dredge

The Surveyor who works in BV came to our company to check the dredger before shipping. Pro Sand Dredge Pro Sand DredgeShippment :along with spare parts ,pipelines and HDPE Floats.

Pro Sand DredgePro Sand Dredge

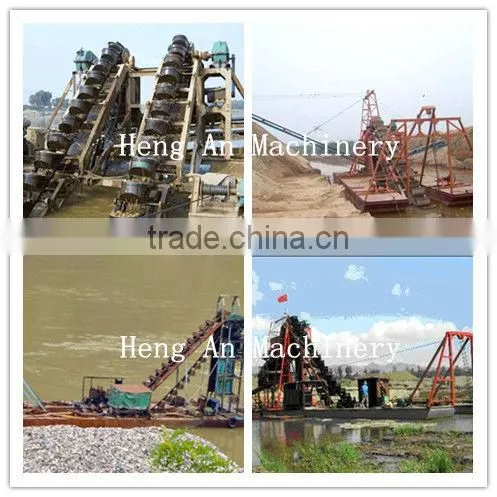

 Our Dredgers are working in the site all over the world:such as Africa,Southest Asia,Bangladesh,Nigeia and so on.





Other kinds of dredgers

Pro Sand DredgePro Sand Dredge

More details please don't hesitate to contact me.

Wish you a nice day!
