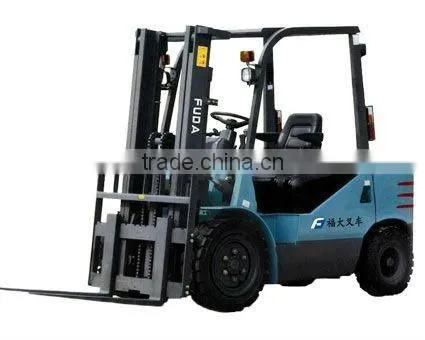

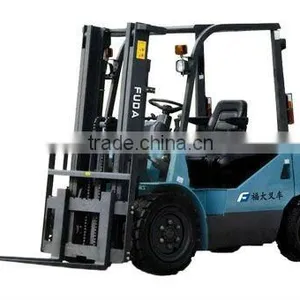

5 Ton Forklift Truck

US$ 20,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Henan, China

Brand Name:

Zhengzhou Huitong Pipe Fittings Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN TIANJIN SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Henan, China

Brand Name HT

Model Number Small Forklift Truck 845

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 4500KG

Max. Lifting Height 3000mm

Fork Length 1070mm

Fork Width 150mm

Overall Dimensions 3000*1300*2500mm

5 Ton Forklift Truck

Speciflcation
General
	Manufacture						HT 845
	Power type
	Rated loading capacity					Kg	4500
	Load center					mm	600
Dimensions	Lift height					mm	3000
	Free lift height					mm	300
	Fork size					mm	1070×150×50
	Fork distance	Min./Max.				mm	125/885
	Mast tilt anglc	Front/After				deg	6/12
	Front overhang					mm	595
	Overall dimensions		Overall length		mm		3000
			Overallwidth		mm		1300

			Mast		mm		4272
			Overhead guard height		mm		2500
	Turning radius					mm	3000
	Min.right angle aisle width					mm	2500
Performance	No load/Full load		Traveling Speed		km/h		27/25
			Lifting speed		mm/sec		330/310
	Max.grade abnlity					%	20
	Self weight					kg	6000
Chassis	Tread		Front					28×9-15-14PR
			Rear					6.50-10-10PR
	Treadwidth		Front		mm			1040
			Rear		mm			970
	Wheelbase					mm		2000
	Min.Ground clearance (No load/Full load)			Mast	mm			216
				Frame	mm			248
Drive unit&control	Battery					V/AH		12×100×1
	Engine		Manufacture					ISUZU 4JG2 PE	CA498
			Manufacture					ISUZU	DACHAI
			Rated power		Kw/rpm			44.9/2450	45/2500
			Rated torque		N.m/rpm			186.3/1600-1800	190/1800
			NO.of cylinder					4	4
			Bore×Stroke		mm			95.4×107	98×105
			Displace ment		L			3.059	3.168
			Fule tank capacity		L			52
	Transmissions		Type		L			Hydraulic
			Shift Front/rear					1/1
