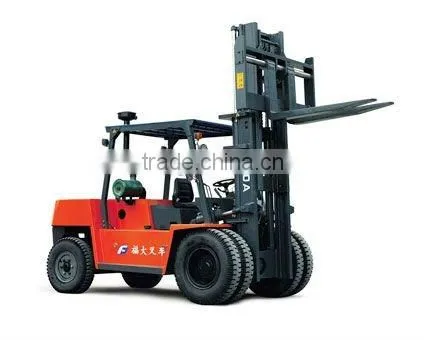

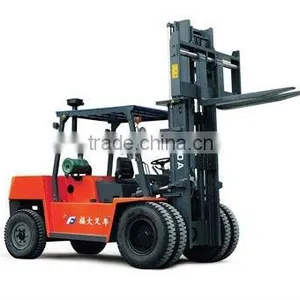

10 Ton Diesel Counterbalanced forklift truck
SCIENTIFIC ERGONOMIC APPLICATION
We use scientific ergonomic method to design this Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.
STRICT ENVIROUMENT PROTECTION DESIGN
We applied a lot of strict environment friendly designs on our products. All these measures efficiently protect the user and improve the environment.
RELIABLE SPECIAD DESIGNED INSTRUMENT
Low power consumption and long-life. It also works in wide temperature range(-40°C~+80°C) and with high interference resistant capability.
POWERFUL ENGINE AND TRANSIMISSION SYSTEM
Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine. This combination made the truck powerful reliable.
This series forklift trucks are widely used in stations, ports, airports, warehouse and other places for loading, unloading and short distance transporting of the packaged goods.
Speciflcation | |||||||||
|
General |
|
|
|
||||||
Manufacture |
|
FDM890 |
|||||||
Power type |
|
|
|||||||
Rated loading capacity |
Kg |
9000 |
|||||||
Load center |
mm |
600 |
|||||||
|
Dimensions |
Lift height |
mm |
3000 |
||||||
Free lift height |
mm |
195 |
|||||||
Fork size |
mm |
1500×180×90 |
|||||||
Fork distance |
Min./Max. |
mm |
400/1480 |
||||||
Mast tilt anglc |
Front/After |
deg |
8/12 |
||||||
Front overhang |
mm |
690 |
|||||||
|
Dimensions |
Overall length |
mm |
3990 |
||||||
Overall width |
mm |
2100 |
|||||||
Mast lowered height |
mm |
2550 |
|||||||
Mast extended height |
mm |
4380 |
|||||||
Overhead guard height |
mm |
2480 |
|||||||
Turning radius |
mm |
4000 |
|||||||
Min.right angle aisle width |
mm |
3300 |
|||||||
|
Performance |
No load/Full load |
Traveling Speed |
km/h |
25/24 |
|||||
Lifting speed |
mm/sec |
330/280 |
|||||||
Max.grade ability |
% |
20 |
|||||||
Max. Pull force(full load) |
KN |
76 |
|||||||
Self weight |
kg |
11600 |
|||||||
Chassis |
Tread |
Front |
|
9.00-20-14PR |
|||||
Rear |
|
9.00-16-14PR |
|||||||
Tread width |
Front |
mm |
1490 |
||||||
Rear |
mm |
1520 |
|||||||
Wheelbase |
mm |
2700 |
|||||||
Min.Ground clearance (No load/Full load ) |
Mast |
mm |
220/210 |
||||||
Frame |
mm |
235/230 |
|||||||
|
Drive unit&control |
Battery |
V/AH |
24/100×2 |
||||||
|
Engine |
Manufacture |
|
YC6108 |
||||||
Manufacture |
|
YUCHAI |
|||||||
Rated power |
Kw/rpm |
92/2300 |
|||||||
Rated torque |
N.m/rpm |
446/1500 |
|||||||
NO.of cylinder |
|
6 |
|||||||
Bore×Stroke |
mm |
108×125 |
|||||||
Displace ment |
L |
6.871 |
|||||||
Fule tank capacity |
L |
125 |
|||||||
|
Transmissions |
Type |
L |
Hydraulic |
||||||
Shift Front/rear |
|
2/1 |
|||||||
