WB a professional color sorter manufacturer, has devoted into color sorters production, R&D over 10 years professionally.Stick to the management concept of “Quality First, Honesty Oriented”, WB has been playing a leading role in color sorter industry of China.
Our color sorter machine can help you separate good material from the bad.It is widely used in the home and abroad.

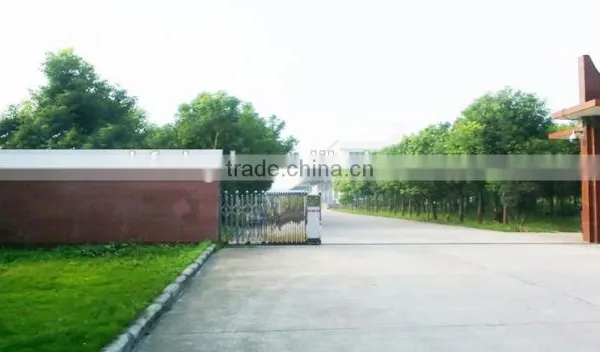

Welcome to visit our factory.

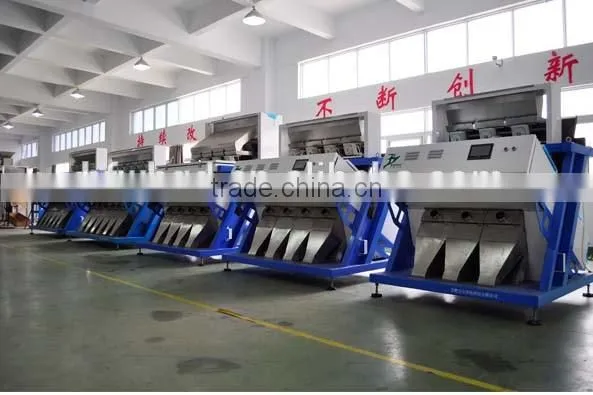

Our workshop is as below,

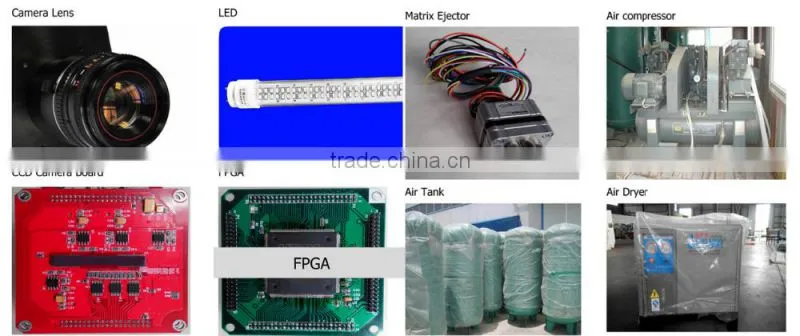

I. DSP+FPGA chip sets (imported from American TI company),perfect combination of hardware achievements powerful computing capability ,ultra-fast date large enough to cope with various operation, a color sorting machine super brain.
II. Air Filters are from Japan, more suitable to sorter. have four air filters in the color sorter,no need to use air dryer.The brand name : SMC Air Filter imported from Japan ,brand name SMC.
III. Touch Screen
out a mile's operation menu simple settings, so that customers can quickly master the color sorting
machine a variety of performance. Its technology
IV. Wide Chute.
High Rigidity Aluminum Alloy U-Shape Channel.
V. CCD cameras
Imported high-end 2048 pixels CCD Cameras equipped with well-know international top brand,Can identify these tiny spots 0.04mm.More scientific and rational combination of optimized optical design of international algorithm to identify more clearly yellow, identify regional broader, more accurate color selection.
VI.The operation interface adopts the 10 inch TFT,color touch screen. It is easy to adjust parameters and operate . It is more humannity.
Type |
WB-A1 |
WB-A2 |
WB-A3 |
WB-A4 |
Channels |
64 |
128 |
192 |
256 |
Output(t/h) |
0.8-1.0 |
1.5--4.0 |
3.0-6.0 |
5.0-8.0 |
Sorting accuracy |
99.99% |
99.99% |
99.99% |
99.99% |
|
optimal carryover (bad:good) |
≥10:1 |
≥10:1 |
≥10:1 |
≥10:1 |
Voltage (V) |
220V |
220V |
220V |
220V |
Main power(KW) |
1.0 |
1.4 |
1.8 |
2.2 |
Air Pressure (Mpa) |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
Air Consumption (m³/min) |
0.6 |
1.5 |
1.8 |
2.5 |
Weight(kg) |
500 |
680 |
830 |
1000 |
|
Dimensio(L*W*H) mm |
1155*1750*1870 |
1182*1500*1650 |
1488*1500*1650 |
1488*1500*1920 |
I.WB color sorter machine,plywood case ,the packaging is suitable for a long way.
II.We will arrange the shipment as soon as possible
Generally speaking, we will arrange the shipment in three weeks after we receive the deposit.
III.three boxes totally, details is as below.
I.Engineer is available to your country to debug your machine.
II.We will do our best to solve your problems in 48hours. If need our engineer ,we will arrange it as soon as possible.
III.1year warranty.
Good services is not in before you buying,but most importantly ,after you bought
IV.The picture below shows that our engineer is overseas to debug the machine.
I. How about the guarantee period?
One year.
II.How about engineers service oversea?
Engineers available to service machinery overseas;
III. How to use the machine?
We will supply customer the installation catalog or video online; We will ask our engineer to teach you.
how to use when he go to your country to debug the machine.
IV. How about the sample machines for testing?
Sample sending for testing is welcomed, but the freight of the sample should taken by the consignee. Or
you send our three photos,the raw material,good material (which is you want) ,bad material (which is you
want to discard).we send our video to you.
V. Will you accept L/C as payment?
L/C is accepted. T/T is OK for us.
VI.Do you have any other spare parts for the custom?
Yes,we will supply you some spare parts for free.
VII.Which machine will work together with our color sorter which you can supply?

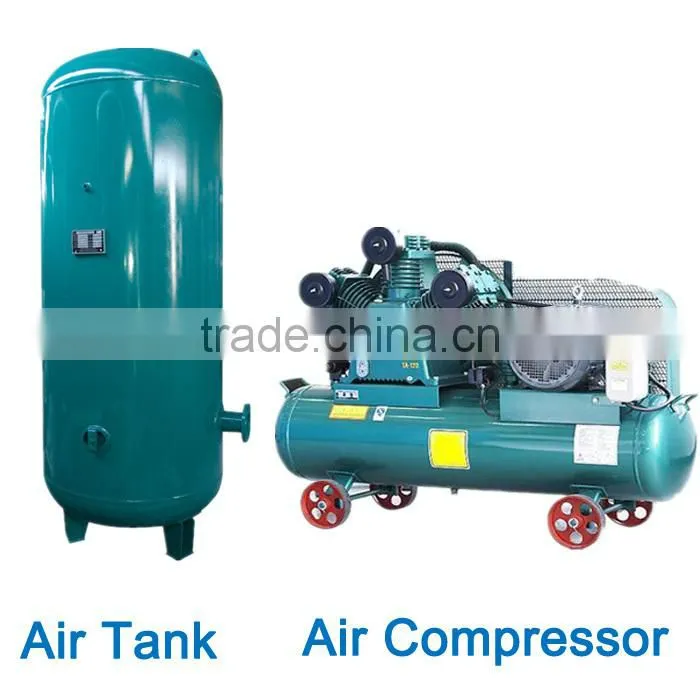

air compressor ,air tank ,air filters.
Firstly step,you send email to me or call me at any time,and tell us your requirement,such us the capacity,the material which you want to sort
The samples of our intelligent beans color sorter can sort as below.
The certificate
