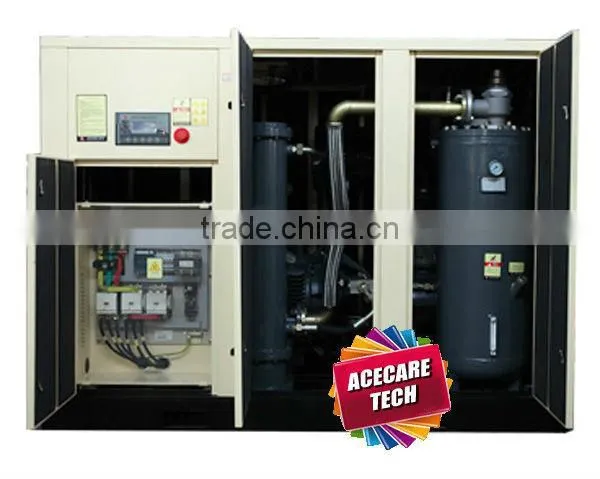

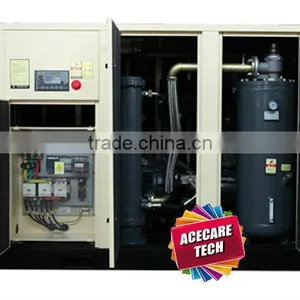

OLG-380W Water Cooling Screw Air Compressor

Name: OLG-380W Water Cooling Screw Air Compressor
Brand: Acecare
SKU: 137814481

US$ 5,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Screw

Configuration:

Stationary

Shenyang Acecare Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Screw

Configuration Stationary

Power Source AC Power

Lubrication Style Lubricated

Mute Yes

Place of Origin Liaoning, China

Brand Name Acecare

Model Number OLG-380W

Voltage 380V

Dimension(L*W*H) 3190*2000*2150mm

Weight 5200KG

OLG-380W Water Cooling Screw Air Compressor

1.noise isolation design for the whole machine

2.high-quality mainframe

3.efficient ,energy-saing and quite firm motor

NO.	project		unit	parameters
1	air displacemet / pressure		(m3/min)/ MPa	51.3/0.7-0.75
				50.2/0.8-0.85
				43/1.0-1.05
				38/1.2-1.25
2	ambient temperature		°C	-5~+45
3	cooling model			water cooling
4	exhaust air temperature		°C	≤ambient temperature +5
5	lubricant oil		L	200
6	drive model			directly
7	volume adjustment model			ON/OFF automatic adjustment
8	gas oil content		ppm	≤3
9	noise		dB(A)	77±2
10	brand of lubricant oil			ORIENT oil
11	safety valve work pressure		MPa	specified work pressure x1.1
12	motor	power	KW/HP	280/380
		speed	rpm	2980
		drive model		Y
		voltage/rage	V/Hz	380/50
		levels of protection/insulation rating		IP54,F stage
13	size(L×W×H)		mm	3190×2000×2150
14	net weight		kg	5200
15	output interpace		in	DN100/G4″
