1. Agricultural tiller with tractor
This agricultural tiller is connected with the tractor to complete the plow and harrow operation. It adopts the increased gearbox, which extends the working life of universal joint rotation axis. The machine can work steadily in any soil and geographic conditions, and has good working quality, broad adaptability, high efficiency, is a new generation ideal rotary cultivator. It was awarded as “National free-inspected products” and “Famous brand product of Henan province”.
2.Rotary agricultural tiller tractor structure features
According to the position of the axis of the rotary blade, it can be divided into horizontal axis type and vertical shaft type.
Horizontal axis agricultural tiller (horizontal) features: strong pulverizer ability, fight for the farming season to improve work efficiency, and take full advantage of the power of the tractor.
Vertical shaft agricultural tiller (vertical): the working parts of the rotary blade shaft are equipped with three screw linear cutter. For paddy hydroponics, it has strong pulverizer, up plasma effect.
3. Agricultural equipment rotary tiller working photo

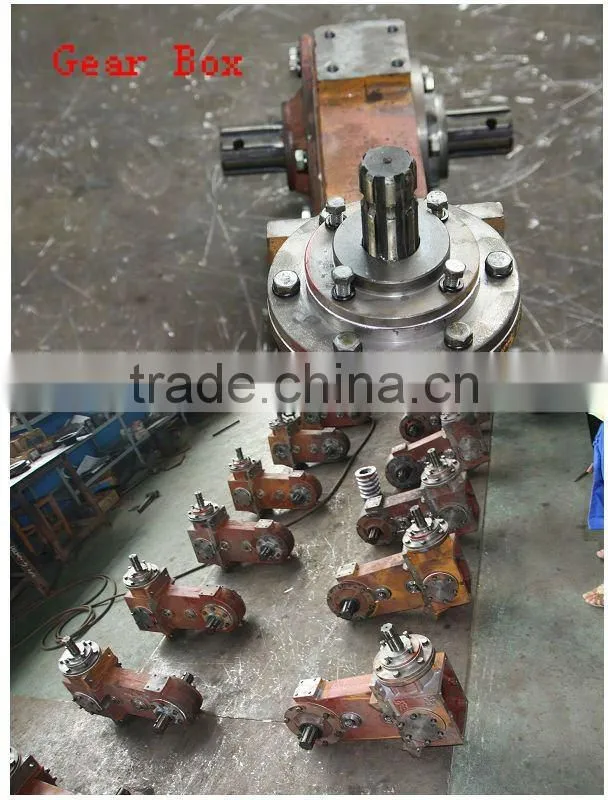

4. Tractor agricultural tiller parts and components
5. Tractor agricultural tiller technical parameters
| Items | Unit | 1GQN-200H | 1GQN-230H | 1GQN-250H | Remarks |
| Dimension | cm | 95*223*132 | 95*253*132 | 95*273*132 | L*W*H |
| Overall power | kw | 40.5~51.5 | 55.1~66.2 | 66.2~88.2 | |
| Working efficiency | hm2/h | 0.33~0.67 | 0.47~0.86 | 0.60~0.93 | |
| Working width | cm | 200 | 230 | 250 | |
| Rotary blade form | / | IT245 | IT245 | IT245 | |
| Blade quantity | pc | 58 | 62 | 66 | |
| Total weight | kg | 430 | 490 | 540 | |
| Tillage depth | mm | 80-160 | 80-160 | 120-160 | |
| Vegetation coverage | / | >= 60% | >= 60% | >= 60% | |
| Pulverizer rate | / | >60% | >60% | >60% |
6. Choosing the suitable tractor agricultural tiller
a.The choice of agricultual tiller models is mainly determined by your tractor type and local natural conditions.
b. Matching should be reasonable.
The rotavator power consumption should be lower than the output power of the tractor, rotary tiller operating width should be able to cover about the tractor wheel rut.
