Ceramic Fiber Miscellaneous Shapes Products
Product Description

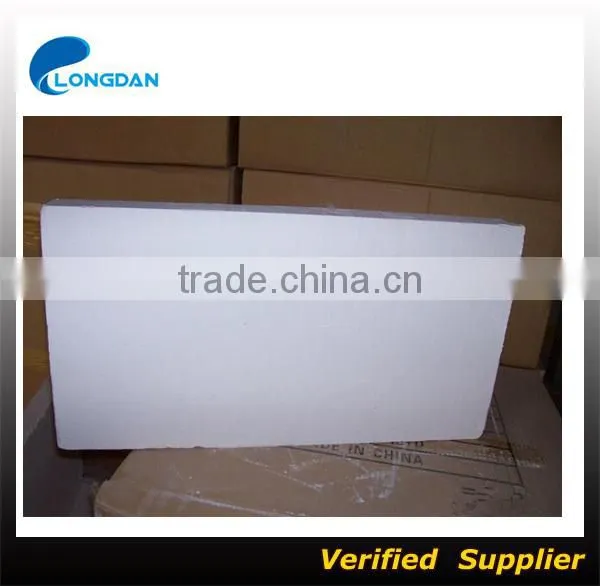

Heat insulation ceramic fiber board contains zirconium-based ceramic fiber cotton as raw material,or dried using a vacuum molding process by the dry method and refined by machining.
In addition to a variety of ceramic fiber board with the corresponding bulk ceramic fiber cotton fine performance,the product of hard texture, excellent toughness and strength, has excellent anti-erosion ability.
heating is not inflated, light weight,convenient construction, can be arbitrary shear bending, are kiln, piping and other
equipment, ideal for energy-saving insulation materials.
Product Characteristic
Heat insulation ceramic fiber board:
1.Low thermal storage &low thermal conductivity
2.Excellent pressure resistance & long service life
3.Non-crisp material,excellent tensile
4.Accurate geometrical size & excellent level Surface
5.Cut in different angles & convenience construcion
6.Excellent wind corrosion resistance
7.Continuous production,fibers distributed in equable & stable performance
8.Excellent thermal stability & thermal shock resistance
Technical Index
| Name | 1050 Ceramic Fiber Board | 1260 Ceramic Fiber Board | |
| Code | LYGX-164B | LYGX-264B | |
| Shrinkage On Heating (%) | 950x24h≤-2.5 | 1000x24h≤-2.5 | |
|
Thermal Conductivity (W/m.k) |
Hot Surface800(°c) | ≤0.116 | ---------- |
| Hot Surface1000(°c) | ---------- | ≤0.135 | |
| Compressive Strength,≥MPa | 0.5 | 0.6 | |
| Density(kg/m³) | 220 | 300 | |
| Specification(mm) | 1200×600×12.7×/25/50 | ||
| Package |
Single Package:Carton box outside Big Package:Wooden Pallets |
||
| Package Quantity |
Single Package:25mm:8pcs/ctn 50mm:4pcs/ctn Big Package:8cartons/pallet |
||
| Quality Control System | ISO9001-2000,ISO14004-1996 | ||
1.Insulation & Refractorey materials of the furnace back-lining in the industry of cement and architecture
2.Insulation material of the furnace back lining in the industry of ceramics
3.Insulation material of the furnace back linning,wall lining & liner lining in the industry of metallurgy & petrochemical
4.Insulation material in the glass furnace back-linning & wall lining
5.Insulation materials in the heat-treatment furnace back-ling
6.Insulation material of back-lining in the industry of color metal
7.Insulation material of wall lining & back lining in high-temperature and heating equipment
| Packing | carton box or other packing way offered |
| Loading | 20 feet container ,40feet container ,40HQ container |
| Sample Policy | sample offered in 1-3 days |
| Service | phone, rademanger ,email and fax are available ,welcome visit us |
