Item name:High Strength roof rockwool board
Product Description

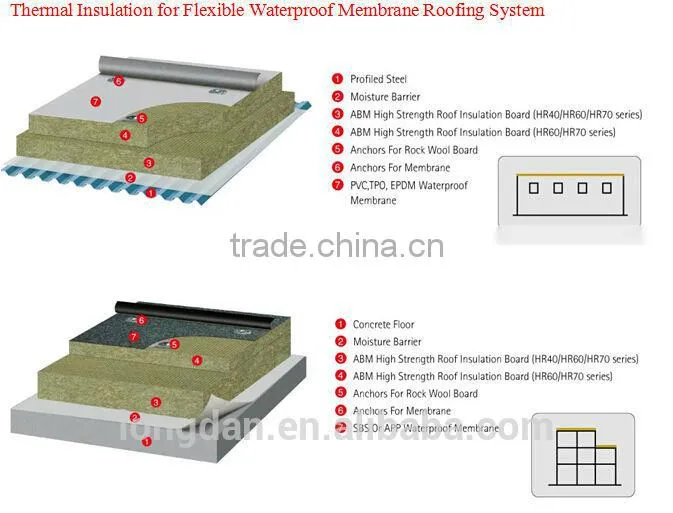

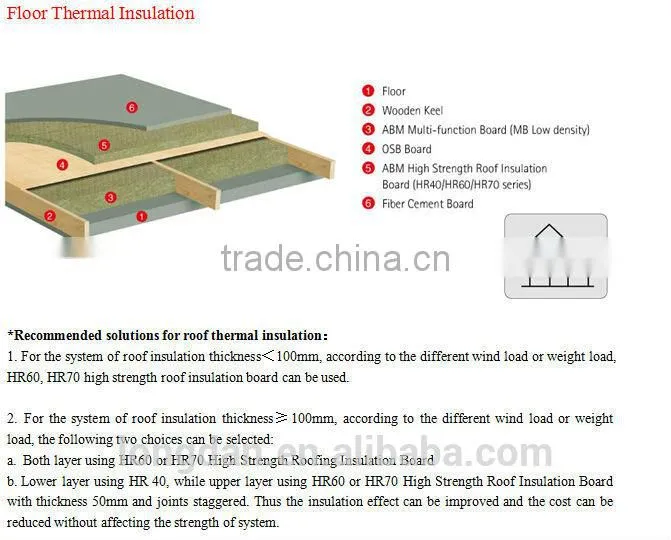

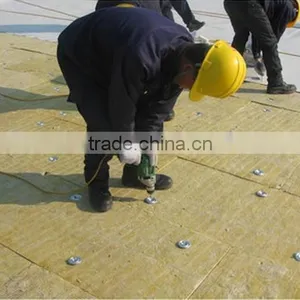

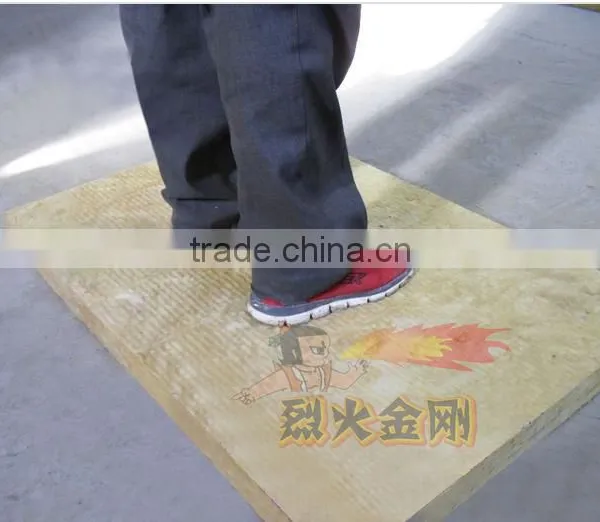

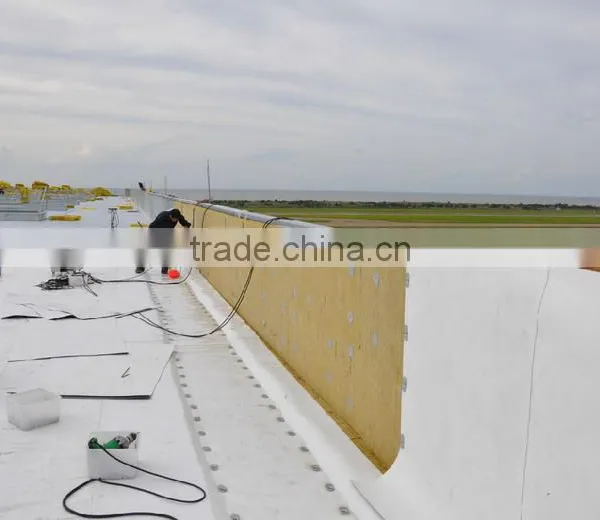

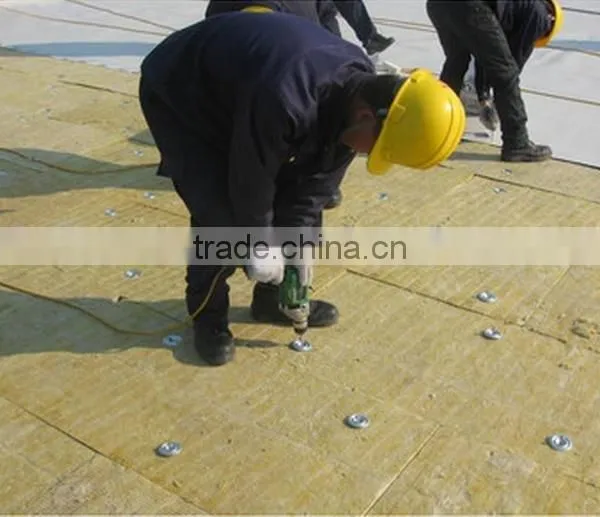

ABM® High Strength Roof Insulation Board (HR series)is designed specially fot all type of flexible waterproof roofing system .The product has functions include heat preservation,thermal insulation,fire protection and noise reduction,It has high compressive strength and point load, which makes it abe to bear the weight of personnel and equipment during the construction and maintenance,and maintain stable thermal,acousticmfire insulation capacity at the same time.The product is mainly used in step-on roofing,planter roofing and flexible waterpriif roofing system in new/expansion project or retrofitting project of existing buildings.

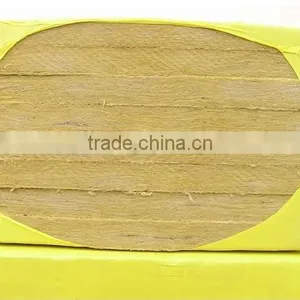

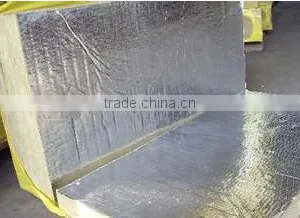

Yellow Color Thermal Insulation Rockwool Soundproofing with Single Aluminum Foil
Standard Specification
| Product Type | HR 40 | HR60 | HR70 |
| Nominal Density,kg/m³ | ≥140 | ≥150 | ≥180 |
| Size(L*w),mm | 40~100 | 40~100 | 50~80 |
| Thickness,mm | 1200*600 |
||
Other size or density may be available on request.
Main Properties and Technical Data
| Properties | HR 40 | HR 60 | HR70 | Unit | Standard |
| Compressive Strength(10% deformation) | ≥40 | ≥60 | ≥70 | kPa | GB/T 13480 EN 826 |
| Thermal Conductivity(25°C) | ≤0.039 | ≤0.039 | ≤0.039 | W/(m.k) | GB/T 10294 EN 13162 |
| Point Load(5mm compression) | ≥200 | ≥500 | ≥600 | N | EN 12430 |
| Reaction to Fire | Class A | ClassA | Class A | GB/T 8624-1997 | |
| Acidity Coeffcient | ≥1.8 | ≥1.8 | ≥1.8 | GB/T 5480 | |
| Water Repellence | ≥99 | ≥99 | ≥99 | % | GB/T 10299 |
| Water Vapor Absorption | ≤1.0 | ≤1.0 | ≤1.0 | wt % | GB/T 5480 ASTM C1104M |
| Short-term Water Absorption(partial immersion,24h) | ≤0.5 | ≤0.5 | ≤0.5 | kg/m² | GB/T 5480 EN 1609 |
| Long-term Water Absorption(partial immersion,28d) | ≤2.0 | ≤2.0 | ≤2.0 | kg/m² | GB/T 5480 EN 12087 |
| Dinebsuibak Stability | ≤1.0 | ≤1.0 | ≤1.0 | % | GB/T 8811 EN 1604 |
| Melting Temperature | ≥1000 | ≥1000 | ≥1000 | °C | --- |
| Squareness | ≤5 | ≤3 | ≤3 | mm/m | GB/T 5480 EN 824 |
Other properties meet GB/T 19686-2005 or EN 13162'S requirements.

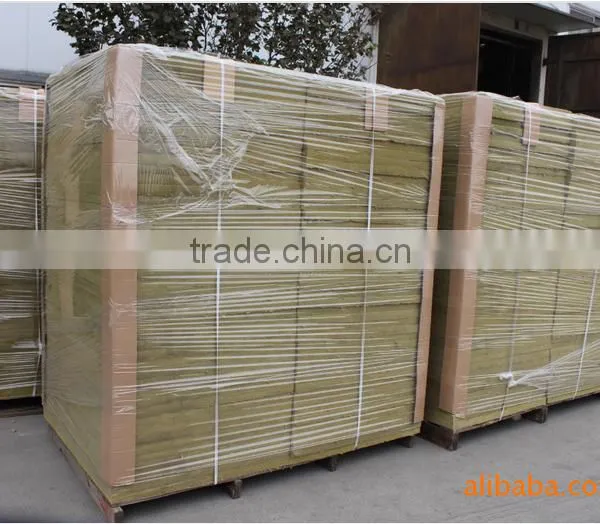

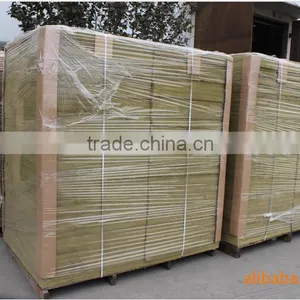

| Packing | plastic bag and other packing way offered |
| Loading | 20 feet container ,40feet container ,40HQ container |
| Sample Policy | sample offered in 1-3 days |
| Service | phone, rademanger ,email and fax are available ,welcome visit us |
