Specifications
Metal Pall Ring Packingstainless steels,carbon steels
Size: 16mm 25mm 38mm 50mm 76mm
Metal Pall Ring Packing
Metal Pall Rings is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. It is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection and so on.
Features
Thin wall
Standing up to heat
Large void ration
High capacity
Low pressure drop
High separation efficiency
Technical data
Sizes |
Bulk density |
Number |
Surface area |
Free volume |
16*16*0.3 |
360 |
201000 |
346 |
95.5 |
25*25*0.4 |
302 |
51000 |
212 |
96.2 |
25*25*0.5 |
400 |
51000 |
216 |
95 |
25*25*0.6 |
461 |
51000 |
219 |
94.2 |
38*38*0.4 |
218 |
15000 |
143 |
97.2 |
38*38*0.5 |
262 |
15180 |
145 |
96.7 |
38*38*0.6 |
328 |
15000 |
146 |
95.9 |
50*50*0.5 |
194 |
6500 |
106 |
97.5 |
50*50*0.7 |
285 |
6500 |
108 |
96.4 |
50*50*0.9 |
365 |
6500 |
109 |
95.4 |
76*76*0.8 |
205 |
1830 |
69 |
97.4 |
90*90*1.0 |
229 |
1160 |
62 |
97.1 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.
Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.

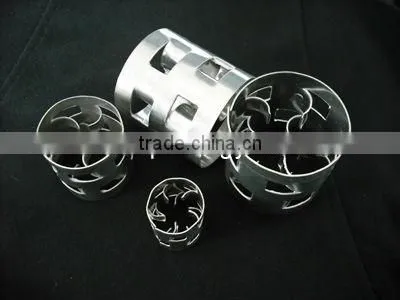

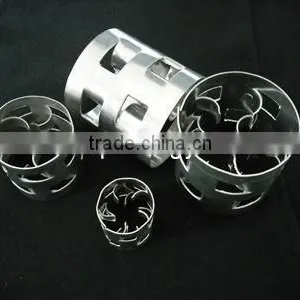

Product photo:
Chemical Packing Laboratory:
