Introduction of ring die pellet machine
ring die pellet machine,also known as a pellet press,is a type of mill or machine press used to create pellets from powdered material.Pellet mills are unlike grinding mills,in that they combine small materials into a larger,homogeneous mass,rather than break large materials into smaller pieces.
Technical parameters of ZLG series ring die pellet machine
Model |
Capacity (kg.h) |
Power (kw) |
Diameter of Pellet(mm) |
Weight (T) |
Dimension (mm) |
DY 560 |
1000-1500 |
90 |
4-12 |
6.1 |
2600*1300*2310 |
DY 720 |
1500-2500 |
160 |
4-12 |
7.3 |
2910*1300*2410 |
DY 850 |
2000-3000 |
220 |
4-12 |
15 |
3500*1700*2900 |
DY 920 |
3000-4500 |
315 |
4-12 |
18.5 |
3900*1780*3500 |
DY 1050 |
4500-6000 |
315 |
4-12 |
22 |
4200*1850*3600 |
The parts of ring die feed pellet machine
The main process of the pellet mill include the following steps: (1) Wood crusher (crush the big wood into small pieces like sawdust)
(2) Dryer (dry the raw material to proper moisture before making pellets)
(3) Pellet mill(press raw material into pellets)
(4)Cooler (cool down pellets and remove some moisture)
(5) Screener (remove dust, and broken pellets)
(6)Packing machine (pack pellets into bags of required weight)
The raw materials of ring die pellet machine
Ring die feed pellet machine is mainly used for making animal feed pellets. Corn, bean pulp, straw, grass, rice husk, alfalfa, wheat stalk,
ect. Applicable industry: aquiculture, poultry feed making plant, stock farm, poultry farm, ect.

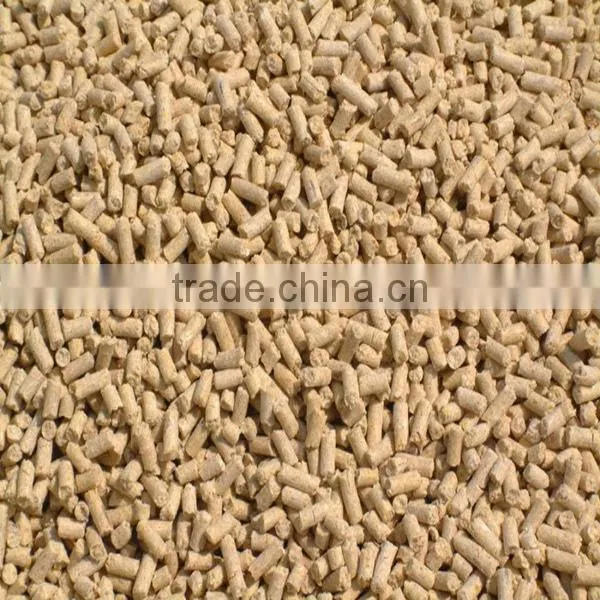

Final Product of ring die pellet machine
