CE Vertical Ring Die Feed Pellet Mill
US$ 8,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Doing Brand
Model Number:
diverse
Payment & Shipping
Payment Methods:
Port of Shipment:
LianYungang QingDao ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Pellet Mill for SaleUS$ 1,000 - 20,000MOQ: 1 Set -
Best Price Flat Die Feed Pellet Mill for SaleUS$ 1,000 - 20,000MOQ: 1 Set
-
Good Quality Animal Feed Pellet Machine for SaleUS$ 1,000 - 20,000MOQ: 1 Set
-
Good Quality Animal Feed Barley Pellet Machine for SaleUS$ 1,000 - 20,000MOQ: 1 Set
-
Good Quality Pelletizer Machine for Animal FeedsUS$ 1,000 - 20,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
Doing Brand
Model Number
diverse
China ring die feed pellet mill
Ring Die Feed Pellet Machine Introduction:
1.This series ring feed Pellet Machine adopts mature technology to make high quality animal feed pellets for chicken, cattle, horse, duck etc with large-scale production.
2.Based on the outstanding features of its high throughput, low consumption and mature technology, ring die feed pellet machine has become more and more popular and possess broad market share at home and aboard.
3.It is an ideal equipment for animal and poultry breeding in grain feed factory, livestock farm, poultry farm, individual farmers, feed processing industry, etc.
1.This series ring feed Pellet Machine adopts mature technology to make high quality animal feed pellets for chicken, cattle, horse, duck etc with large-scale production.
2.Based on the outstanding features of its high throughput, low consumption and mature technology, ring die feed pellet machine has become more and more popular and possess broad market share at home and aboard.
3.It is an ideal equipment for animal and poultry breeding in grain feed factory, livestock farm, poultry farm, individual farmers, feed processing industry, etc.

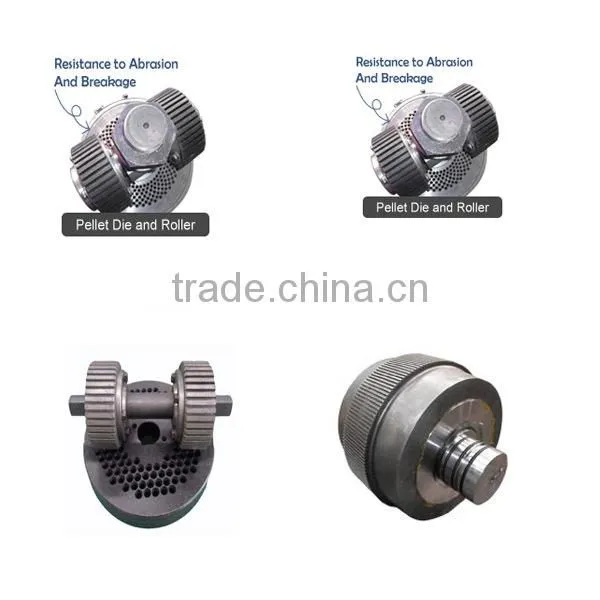

Some parts of China ring die feed pellet mill
Ring Die Feed Pellet Machine Main Technical Data:
| Model | DY320 | DY350 | DY400 | DY420 | DY508 |
| Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main motor power(kw) | 37 | 55 | 75/90 | 110 | 132/160 |
| Feeder power(kw) | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 |
| Conditioner power(kw) | 2.2 | 2.2 | 2.2 | 5.5 | 7.5 |
| ID of ring die(mm) | 320 | 350 | 400 | 420 | 508 |
| Speed of ring die | 305RPM | 336RPM | 307RPM | 287RPM | 287RPM |
| Speed of feeder | 12-120RPM | 12-120RPM | 12-120RPM | 12-120RPM | 12-120RPM |
| OD of roller shell(mm) | 140 | 165 | 190 | 206 | / |
| Noise | ≤86dB(A) | ≤86dB(A) | ≤90dB(A) | ≤90dB(A) | ≤90dB(A) |
Raw material for China ring die feed pellet mill
The raw material is under dried condition, which is compressed under about 80°C, and formed into small eraser-sized bits , the final pellet is clean ,pleasant and smooth ,and its density is more than 1.0 g/m3.
Final product from China ring die feed pellet mill
As the core process in the production of feed, batching accuracy has direct impact on the formula composition which in turn will make sure the animal can get enough nutrition from the feed. Mixer of high efficiency can make sure of balanced nutrition of the feed.
Doing Machinery is a comprehensive manufacturer of feed machinery, bio-energy machinery, organic fertilizer machinery and turn key projects. We are dedicated to service for domestic feed industry customers. DY has worked in this field for almost 15 years and wins an outstanding reputation in feed machinery. Clients from home and abroad give a high praise to our product.
