Poultry Automatic Pan Feeding System for Broiler Chicken Farm
Brand: U-Best
Automatic Poultry Feeding System For Broiler Chicken
The main function of the system is to convey feed from the hopper into each feeder pan to ensure feed eating for poultry chickens and automatically control the driving motor on/off by feed sensor to achieve the aim of automatic feeding.
What we could do for your demand of poultry feeding system(a part of poultry equipment):
A.Produce and supply first-class poultry feeding system of poultry equipment;
B.Select location of poultry house;
C.House design and construction preparation Guidance;
D.Breeding workers training;
E.Poultry equipment installation;
F.After-sales service

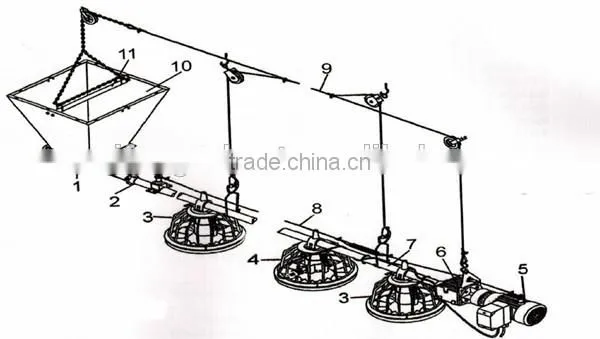

Poultry Feeding System consists of:
1.Hopper body
2.Feed pipe(with auger inside)
3.Feeder pan
4.Control pan(with feed sensor)
5.Motor
6.Connector box
7.End tube
8.Anti-perching system
9.Lifting and suspension system
10.Hopper bin
11.Beam
Performance Parameters:
|
1.Driving Motor: high-quality special driving reduction motor,China Taiwan motor and European motor for your choice Power:0.75KW/1.1KW/1.5KW; Voltage:220V,380V,others; Frequency:50HZ,60HZ; Phase:1-phase,3-phase. |
|
2.V-shaped bin with hopper: Bin Volume:115L, Hopper volume:38L Material:hot-dip galvanized sheet |
|
3.Conveying Pipe Diameter:Φ45mm; Material:hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2 Auger Helical spring auger imported from South Africa, Feeding ability:450kg/h Maximum conveying length:140m |
|
5.Feeder Pan Pan distance: 4 pans/3 meters ,3 pans/3 meters. Material:PP Diameter:360mm×360mm |
|
6.Feed Sensor Imported from Germany; time delay range 0 to 2 hours. |
7.Hanging System |
8.Anti-roost System |
Poultry Feeding System Advantages:
Feeder pan is adjustable,convenient and save feed.
Pan bottom can be disassembled on the ground working for 0-7 days old chicken,Rim curved to inside to prevent wastage.
Feed delivery speed is stable.
Chicken mortality is lower.
Poultry feeding system can save 1.6-2.3% feed.
Poultry feeding system can be adjusted,which can raise poultry in different growing period.
Poultry feeding system is a part of a complete automatic poultry equipment, the other parts are:
1.Main feed stock line of silo/manpower system
2.Automatic nipple drinking system
3.Automatic ventilation system
4.Cooling pad system
5.Environmental and power control system
6.Spraying and disinfecting system
7.Heater
If you need a complete automatic poultry equipment, please let us know following:
1. How many chickens do you plan to raise?
2. What is the size of your chicken house, including length, width and height?
3. What is the final weight you raise in farm for sale, about 1.5kgs or 2.5kgs?
4. where is your poultry farm located in, in which country?
Packaging and Shipping
Standard export package for automatic poultry farming equipment in container. Shipment in 15 days after the order confirmation.
Company Introduction:
Weifang U-Best Husbandry Equipment Co.,Ltd
We are professional manufacturer and supplier of poultry feeding systeme in China!Our equipment has passed ISO9001:2008 Quality Management System Certification!We have our own production line so we can control the quality very well! Our poultry feeding system has been
exported to more than 40 countries and have good market reputation!
We have many different project of chicken farm in Indonesia, Philippines, Columbia, Costa Rica, Paraguay,
Honduras, Sudan, Palestine, Zimbabwe, Mozambique, Qatar, Dominica, Saudi Arabia and Fiji etc.
