Paraffin wax pellet making machine Melt granulator making machine resin granulator machine Wax Granulator Making Machine
Melting material, through material distributor, drips down to the steel belt which is moving evenly. Under the belt, there are continuous sprayer and cooling device which can cool, solidify and pelletize material on belt as soon as possible. According to material feature and process requirements, outward turning, rotating, reciprocating, gate types are available for your choice. Based on material feature and use requirements, material distributing forms like incontinuous dripping, continuous strip, full-width overflowing are available, and with hemispheric, bar, flake products.
Specification:
Model |
JXSP-60 |
Machine width |
600mm |
Machine length |
12000mm |
Size of mould |
2.2mm |

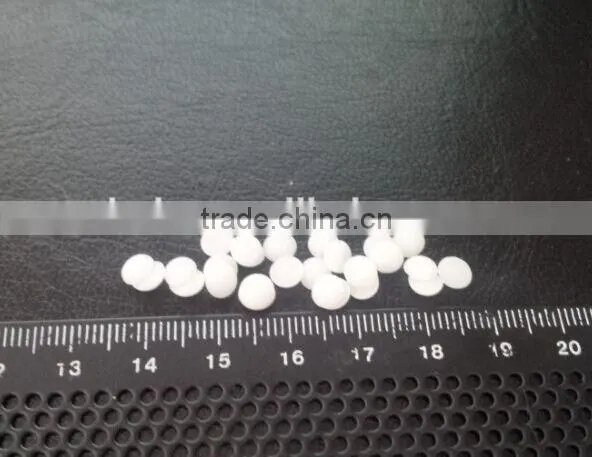

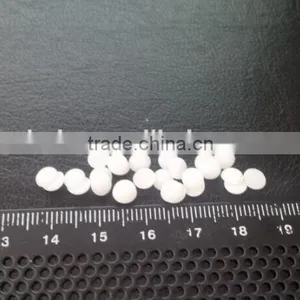

Size of products |
4-8mm |
Product’s shape |
hemispherical |
Capacity |
100-120kg/hour for paraffin |
|
200-300kg/hour for resin |
|
200-300kg for RD |
Motor |
0.7 m3/h 5kw+1.5kw |
Voltage |
380V,50HZ,3 phaze |
Water pump |
pressuer: 0.3mpa water flow: 15-20 m3/h (equipped by user) |

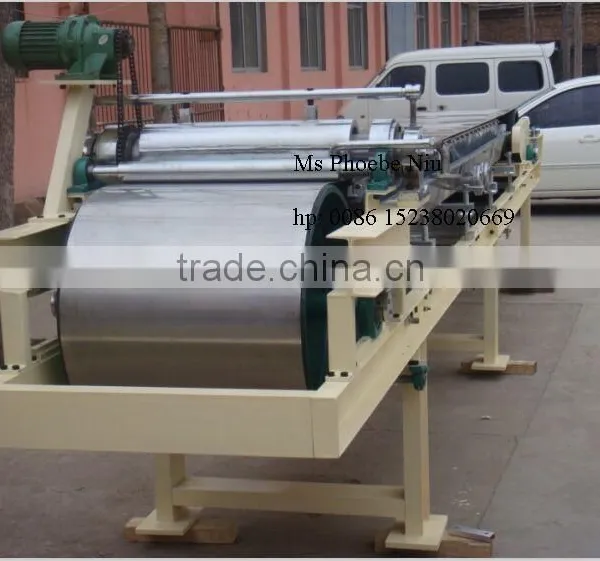

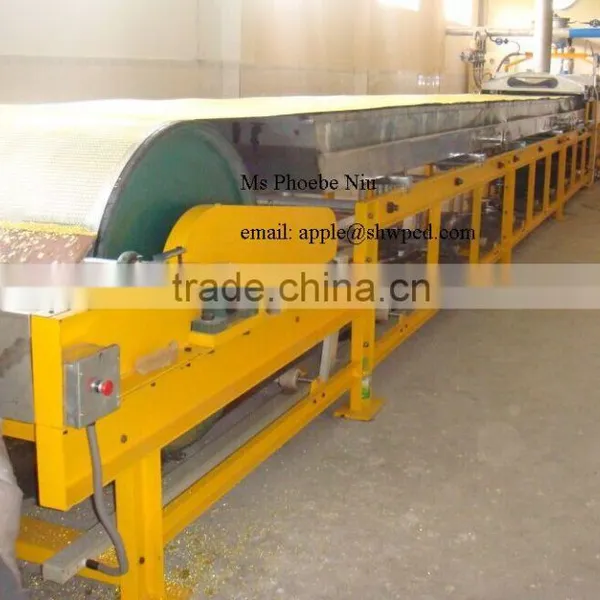

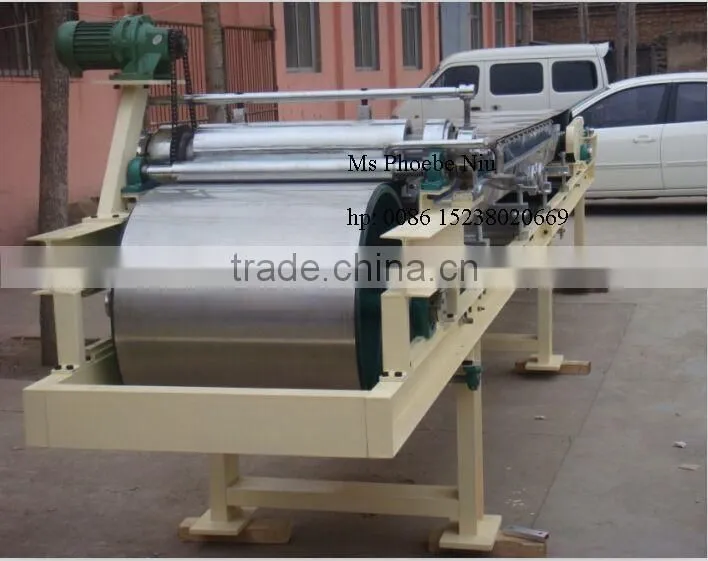

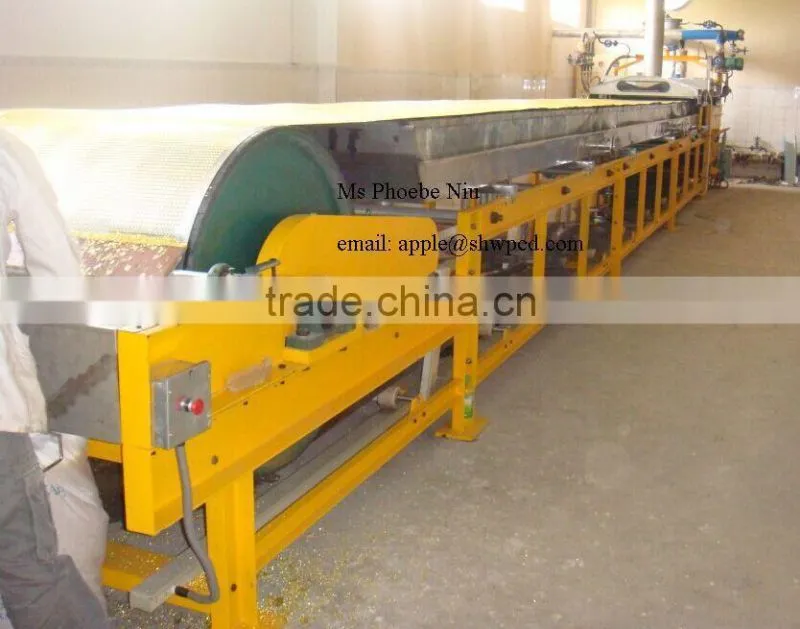

Machine photo:
