Specifications

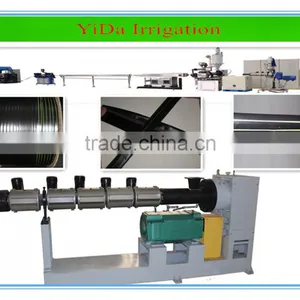

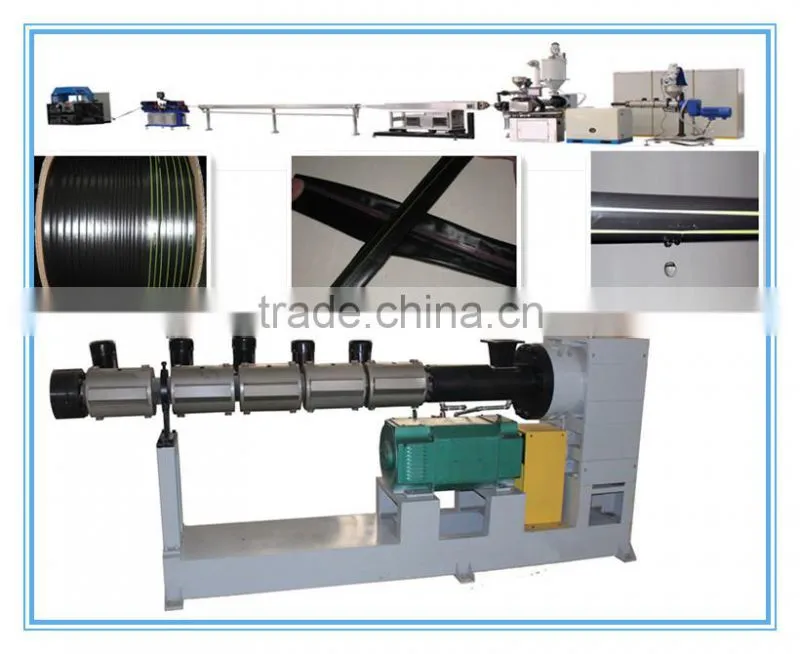

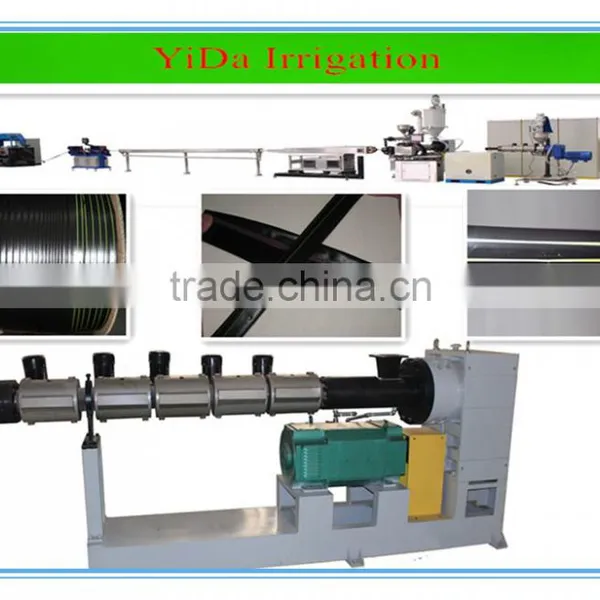

hdpe water supply pipe making machine is developed by our company,which is used to produce inner continuous drip tape .Name: hdpe water supply pipe making machine
Introduction of machine
the production line is developed by our company,which is used to produce inner continuous strip drip tape of various specifications.
the production line has a lot of advantages such as stable performance,wide range of product,change the products variety without shutting down the equipment,convenience personnel operate, low maintenance cost etc.the successful development of the production line,marking the company has reached the international advanced level in drip irrigation.
Components of machine
1.main extruder system
2.vice extruder system
3.rolled strip molding system
4.vacuum calibrating system
5.thermostatic cooling channel
6.punching machine
7.double-tractors system
8.double-station winding system
9.power system
Specification of machine
Model NO. |
TDG-II |
Dimension |
(L)30M*(W)4M*(H)2.5M |
Weight |
4.8T |
Installation power |
125KW |
Operation power |
60---70KW |
Voltage |
380V |
Diameter |
12mm,16mm |
Wall thickness |
0.15---0.6mm |
Dripper distance |
100---500mm |
Production speed |
80---150meters/minute |
Continuous strip rolling speed |
150meters/minute |
Punching speed |
750 holes/minute |
Haul-off speed |
20---200meters/minute |
Packing |
500--2500meters/coil |
Punching method |
mechanized |
Winding speed |
20---200meters/minute |
Equipment Features
1) the production line can manufacture various specifications products without stopping the machine.
2)newly developed high-efficiency extruder system, make the wall thickness well and smooth surface
3)newly developed rolled strips molding system
4)stainless thermostatic cooling system
5)the latest water removal device ,which can dry the tape surface quickly.
6)high-precision mechanical punching system.the hole is continuous and precision.
7)multiple-point tractor, which can prevent the strip from deforming under pressure
8) double-station automatic winding machine can fully automatic cutting, changing,winding and wiring.
Iron frame wit wooden wall in a 40HQ
Online Service
Our company is integrated professional ,science and technology manufacturer for water—saving drip irrigation equipment and products.The company covers an area of 30 acres, and workshop buildings cover about 30000 square meters, which is located between in Beijing and Tianjin, it is very convenient for transporting and visiting. Our company absorbed international advanced technology, experiences in sales, concentrate on the research and development of production line for inner continuous drip irrigation tape with
double strip lines, and manufacture for the drip irrigation products.
In 2011, our company successfully developed: production line for inner continuous drip tape with double
strip lines, which is an important sign that we have reached the international advanced level. now there are 8 automatic production lines for drip tape. We can produce various tapes for over 600000
meter everyday.
Our company have been taken “scientific creation as center, credible quality as guarantee” as business basis, sincerely welcome home and abroad businessman to visit, we will make ours contributions
to China and worldwide water-saving irrigations.
Company advantage
1. With about 10 years experience in export
2. We have own research and development drip irrigation pipe equipment, so our product can meet customers' demand, and prices are very competitive
3. Our high quality but low prices product have gained market and public praise from domestic and overseas clients
4. We have very good and comprehensive after-sales service
