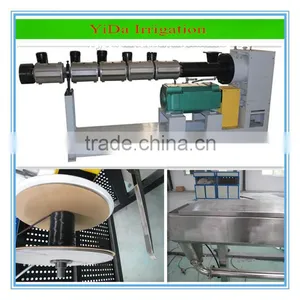

hot plastic pvc pipe production line
Components of machine
1.automatic dripper screening unit device
2.automatic emitter transmission macnine
3.extruder system
4.vacuum calibrating system
5.thermostatic cooling channel
6.punching machine
7.double-tractors system
8.double-station winding system
9.power system
Specification of machine
Model NO. |
TDG-I |
Dimension |
(L)30M*(W)4M*(H)2.5M |
Weight |
4.8T |
Installation power |
125KW |
Operation power |
60---70KW |
Voltage |
380V |
Diameter |
12mm,16mm |
Wall thickness |
0.18---0.6mm |
Dripper distance |
100---1000mm |
Production speed |
100---150meters/minute |
Continuous strip rolling speed |
150meters/minute |
Punching speed |
600holes/minute |
Haul-off speed |
20---200meters/minute |
Packing |
500--2500meters/coil |
Punching method |
mechanized |
Winding speed |
20---200meters/minute |
Equipment Features
1)friendly man-machine interface makes easy control and stable performance
2)newly developed high-efficiency extruder system, make the wall thickness well and smooth surface
3)newly developed rolled strips molding system
4)stainless thermostatic cooling system
5)the latest water removal device ,which can dry the tape surface quickly.
6)high-precision mechanical punching system.the hole is continuous and precision.
7)multiple-point tractor, which can prevent the strip from deforming under pressure
8)double-station automatic winding machine can fully automatic cutting, changing,winding and wiring.
Product show
