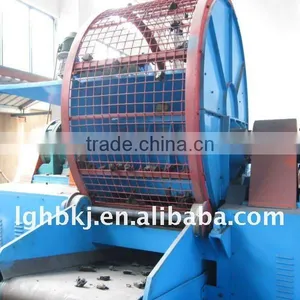

Help CenterSuper Tire Shredder Machine
Related Products
Specifications
twin shaft shredding machineno pollution to water and air
loser noise and higher torque
easy to maintainance and operation
Our double-shaft shredder enjoys the following features:
1, multi-claw blades design with double blade shaft structure, it brings the multi-angle changes during the working, strong shredding force and saving the energy.
2, the blades are made of Cr12Mov, hardening by quenching process, with long use life. The blade can be replaced separately, or maintain with welding method.
3, motor is combined with gear box to arrive the effect of low rotating speed but high torque, high efficiency.
4, gearbox adopts PRG lubricating system, it ensures the smooth running, low noise, strong torsion, and long working time.
5, control electrical elements are SIEMENS and Chinese famous brand
6, it can be used separately or as an unit in the waste plastic washing line.
7, our supply range of this series: 100~2000kg/h.
|
Model Item |
Unit |
LGDS3280 |
LGDS32100 |
LGDS32120 |
A |
(mm) |
3417 |
3880 |
4080 |
B |
(mm) |
3190 |
3275 |
3445 |
C |
(mm) |
804 |
1004 |
1204 |
D |
(mm) |
776 |
776 |
776 |
E |
(mm) |
852 |
1052 |
1252 |
H |
(mm) |
3740 |
3690 |
3700 |
Rotor Diameter |
(mm) |
φ430 |
φ430 |
φ430 |
Main Shaft Speed |
(r/min) |
15 |
15 |
15 |
Rotor-knives |
(PCS) |
20 |
25 |
25 |
Stator-knives Th. |
(mm) |
40 |
40 |
40 |
Main Motor Power |
(KW) |
15+15 |
22+22 |
22+22 |
Weight |
(KG) |
5000 |
7100 |
8700 |
