Hand Ink Proofer For Flexo Printing Ink
It is novel and unique structure, made of stainless steel material, chrome anilox roller and solventresistance rubber roller. It can put water based ink, gravure ink, aniline ink and other liquid coating on all kinds of basic materials, to get the repeatability color sample. It has the function of simulating the printing effect of printing machine, it is an essential tool for matching colors, improving ink, examining the performance of water based ink and examining the color is dark or light as wellas the necessary tool for all of the printing factories to detect the special color.
ZS proofing ink instrument is designed for flexo printing. Widely used in ink producing, carton printing, and flexo printing industries, etc.
1. Good repearability performance, can display the density of ink.
2. The pressures between two rollers can be adjustable, the chrome anilox roller control the thickness of ink film.
3. Easy using and cleaning.
4. Can save more test printing raw material and time.
5. Width: 70mm
The anilox LPI is optional, from 60 LPI to 300 LPI:
60, 80, 100, 120, 140, 150, 160, 180, 200, 220, 250, 300 LPI

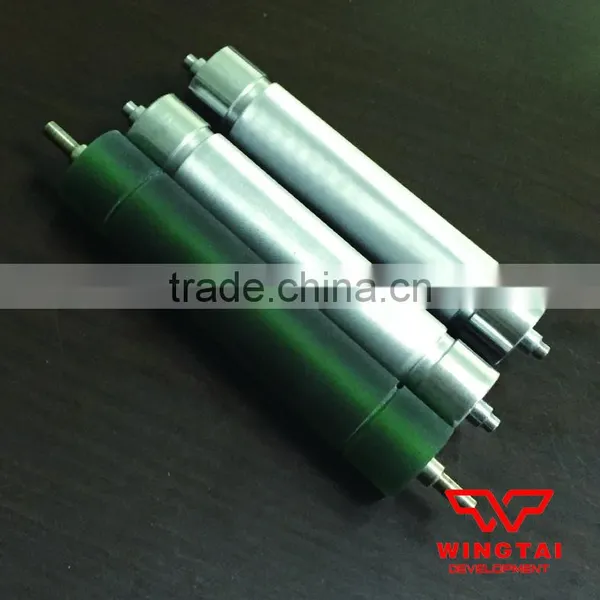

Chrome anilox outside dimension: diameter 20mm, total length 113mm, chrome roller effective length 100mm. Fixing copper screw nut 4mm diameter.
Rubber roller outside dimension: diameter 22mm, total length 126mm, rubber roller effective length 100mm. Fixing copper screw nut 4mm diameter.
