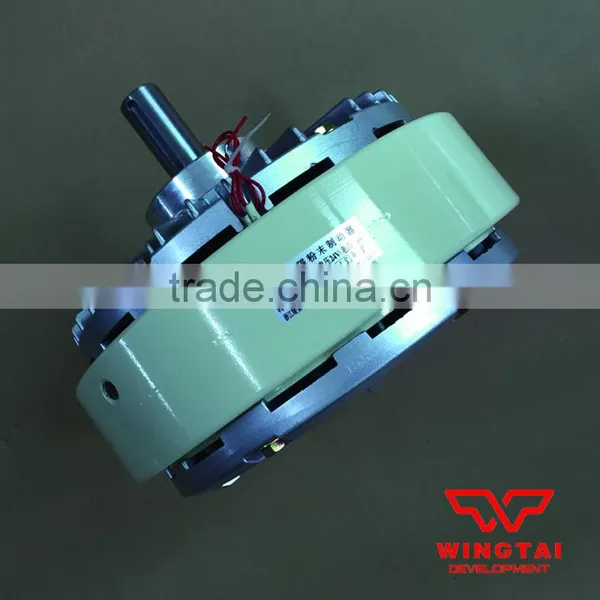

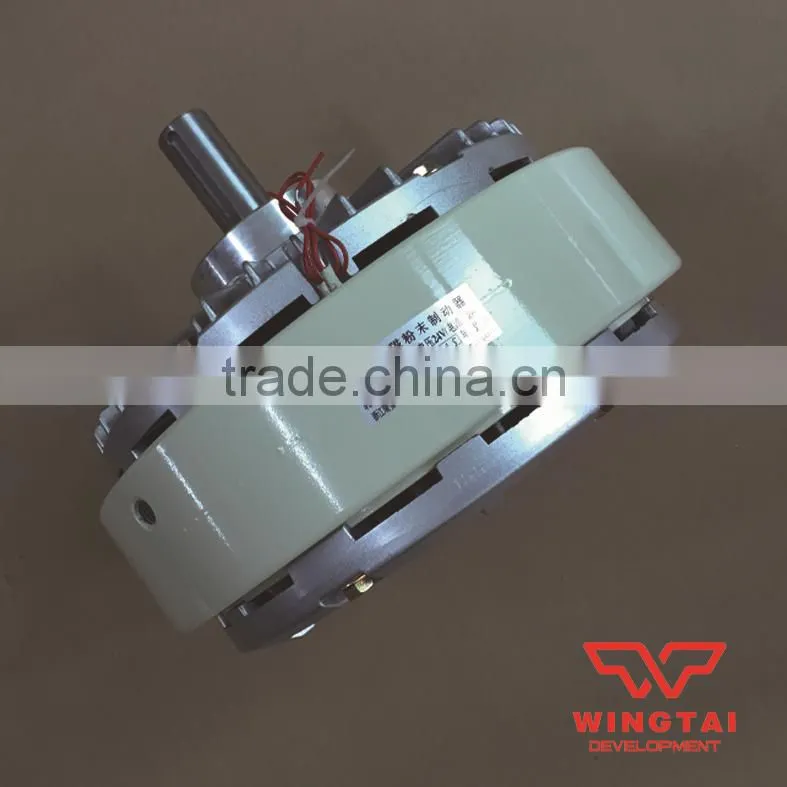

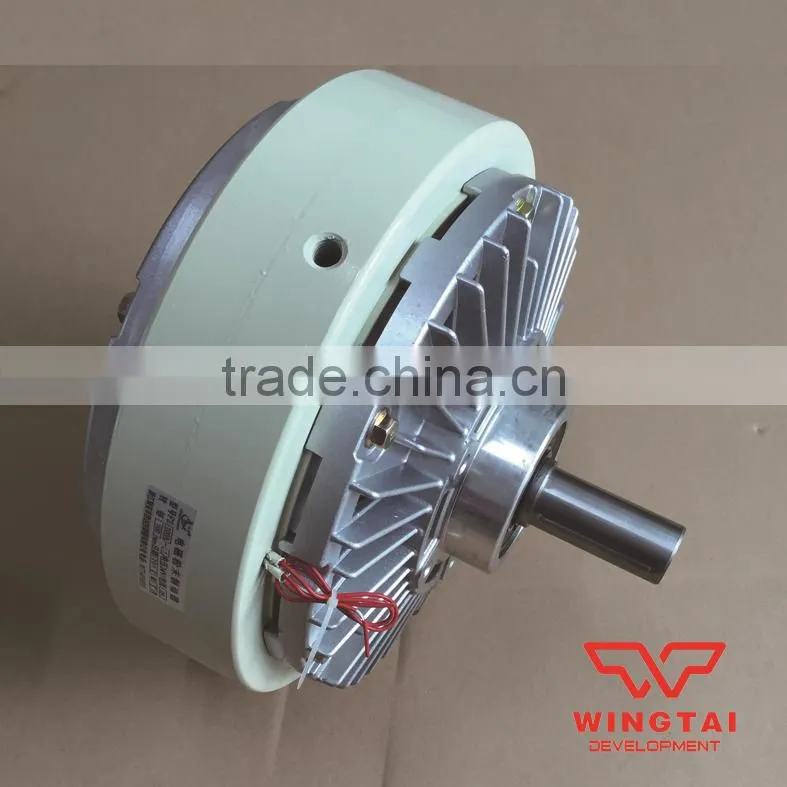

High Precision and quality Uniaxial Magnetic Powder Brakes
- Control of high-precision torque control torque is very wide, and high control precision, to convery torque and exciting current into the correct proportion, can achieve high-precision control.
- Superior durability, long life and heat-resistant, abrasion resistant, abrasion resistance, oxidation, corrosion resistance super alloy powder, long life.
- Magnetic characteristics superior stability constant torque characteristic good magnetic powder and the binding force between particles mutual stability, sliding torque is very stable, with no relation to the relative number of revolutions, can endure constant torque
- Continuous sliding operation using the cooling effect of thermal deformation and excellent in uniform cooling structure, together with the magnetic powder high heat resistance to allow coupling and braking power and power sliding, smooth sliding operation can not cause vibration
- Link sleek, non-shock link the impact when small, can not impact the smmoth start and shop. And resistance torque is extremely small, does not cause unwanted heat.
- Suitable for high frequency operation fast and agile response to special cooling structure for the use of high-frequency operation
- Lightweight, maintenance-free, long life type concise lighter, use high temperature of the coil and special grease bearings, and wear as spcial tratment for the armature prone to wear impose, extend the using life.
Specification
Model |
Main technical data |
Outside dimension |
Axle |
section |
R |
N.W. (KG) |
|||||||||||
torque |
Volt-age |
Revolv-ing speed |
Max curre-nt A |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
L4 |
6-S |
d |
t |
diameter |
depth |
||
FZ6A-1 |
6 |
24 |
1400 |
0.8 |
130 |
62 |
44 |
25 |
10 |
67 |
107 |
M5 |
12 |
4 |
M4 |
8 |
3 |
FZ12A-1 |
12 |
1 |
157 |
62 |
50 |
30 |
15 |
84 |
133 |
M5 |
16 |
5 |
M4 |
8 |
5 |
||
FZ25A-1 |
25 |
1.5 |
182 |
78 |
58 |
40 |
19 |
91 |
154 |
M6 |
20 |
6 |
M5 |
10 |
7.5 |
||
FZ50A-1 |
50 |
1.8 |
219 |
100 |
75 |
50 |
22 |
110 |
185 |
M6 |
25 |
8 |
M6 |
12 |
13 |
||
FZ100A-1 |
100 |
1000 |
2 |
290 |
120 |
90 |
65 |
25 |
143 |
238 |
M8 |
30 |
8 |
M10 |
20 |
28 |
|
FZ200A-1 |
200 |
3 |
335 |
140 |
110 |
70 |
30 |
170 |
275 |
M10 |
35 |
10 |
M10 |
20 |
47 |
||
FZ400A-1 |
400 |
4 |
398 |
200 |
130 |
99 |
35 |
199 |
338 |
M12 |
45 |
14 |
M10 |
20 |
73 |
||
Usage:
1.Buffer starting, stopping: Sleek feature uses links and buffering effect when given torque characteristics, namely the acceleration stability and peak torque shock does not occur
2.Continuous sliding, tension control
3.Torque limit Used
4.high-speed response with
5.the power absorbed by
6.positioning stopping
7.with a simulated load
Flexible packaging machinery, such as printing presses, slitter, complex machine, etc.
