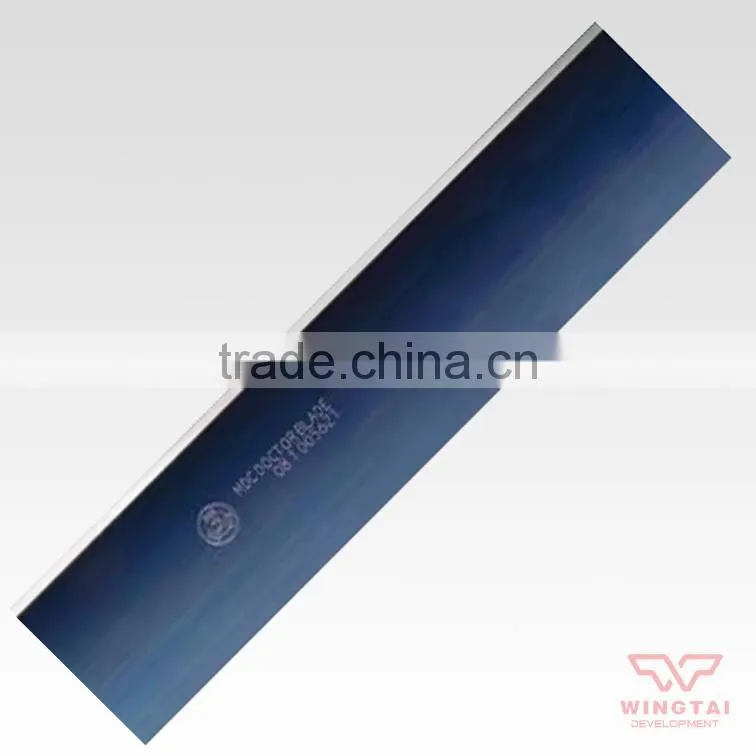

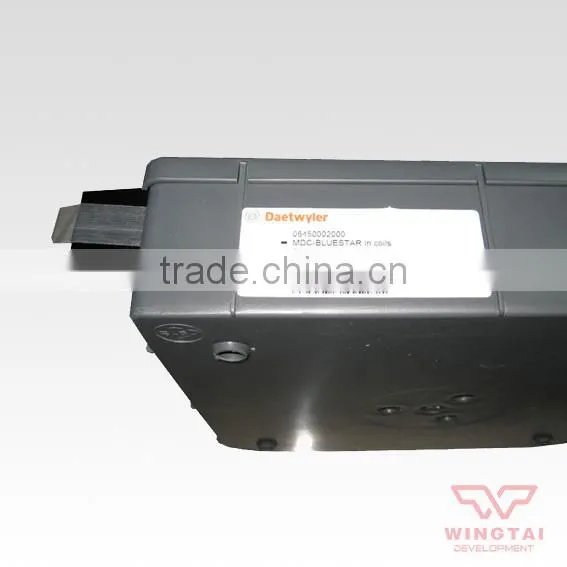

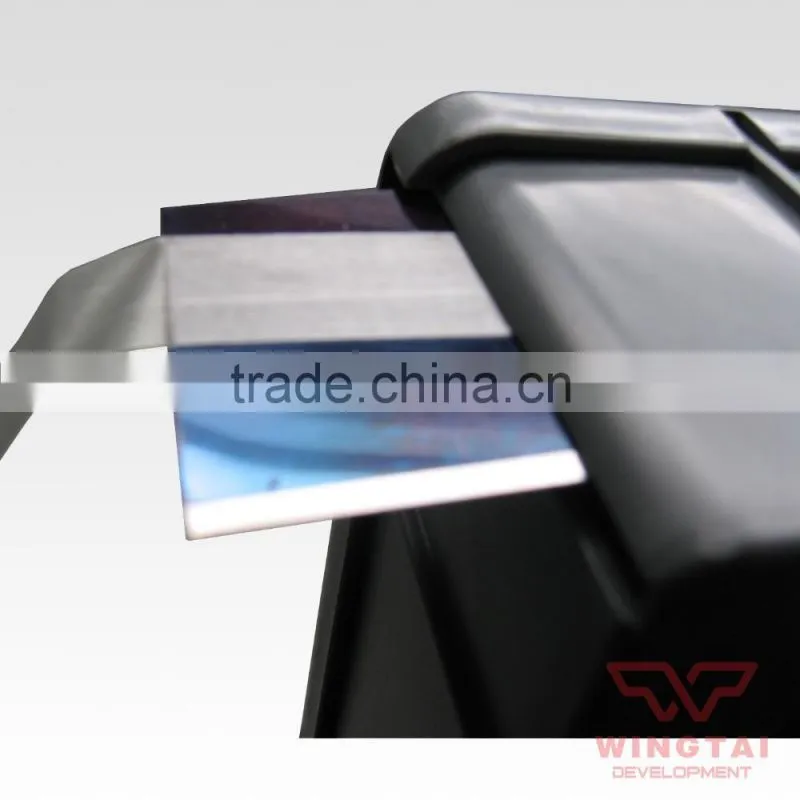

100% Original Switzerland Daetwyler MDC BLUESTAR in coils
China Printing Accessories
Shantou Wingtai Printing Consumables Wholesales
Daetwyler Swiss now has developed the new BLUESTAR doctor blade specifically created to compensate for cylinder inaccuracies which can create printability issues such as dragouts, hazing and broken doctor blades from bad cylinder ends.
The blade tip is manufactured using a specialized process designed to promote stability and reduce wear at the contact point. This thin 60-micron tip increases only slowly and proportionally to the 3° angle. This flat beveled edge increases stability and reduces tip deflection caused by high blade pressure and fast press speeds.
Specifications :
Edge 60 μm , Bevel Angle 3°
Bevel Width Blade Thickness
1.7mm 0.15mm
2.7mm 0.20mm
3.6mm 0.25mm
Main Features :
(1) Lower blade pressure and blade wear
(2) Eliminating blade breakage due to high cylinder ends
(3) Eliminating dragouts
(4) Longer blade life
(5) Sharp blade edge to eliminate hazing
(6) Less waste and reduced downtime.
Application :
MDC doctor blade is widely used in gravure packing printing, publication gravure printing, flexography,flexible UV printing, coating printing, offset coating, pressure-sensitive printing, screen printing and decorative materials printing , etc.
