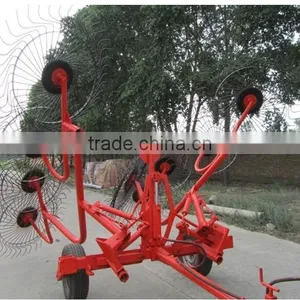

Help Center9LZ Refers to the Disc Rake
Related Products
-
Tractor 3 Point Linkage Farm Hay RakeUS$ 1,811 - 1,811MOQ: 1 Set -
Tractor 3 Point Linkage Farm HayrakeUS$ 1,811 - 1,811MOQ: 1 Set
-
Tractor Trailed Hay Rake Machine PriceUS$ 1,449 - 1,560MOQ: 1 Set
-
Agricultural Machine Manufacturers:heavy-duty Tube Disc PloughUS$ 600 - 1,000MOQ: 10 Sets
-
Heavy-duty Tube Disc PloughUS$ 700 - 800MOQ: 10 Sets
Specifications

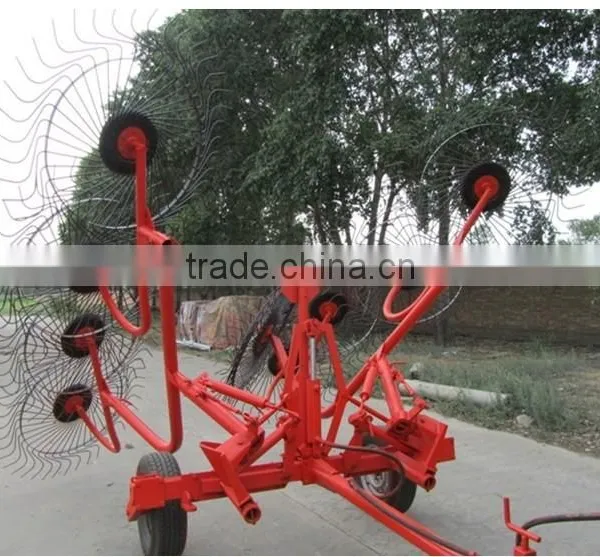

Tractor wheel hayrake 8 wheel hay rakes farm
1. famous-brand products
2.Quality guarantee
3.best quality
4. the disc rake
Product features:
Finger plate machine series, suitable for hanging in the three wheeled tractor suspension device, working parts with tine refers to disc machine on the disk, sequentially to a finger, until the formation of loose ventilation grass strip. Change refers to disc to adjust the angle of SWATH width. Tooth for tooth comb grass of spring steel, the effect is good, copying performance is strong, tooth form a radial configuration on the hub, which can eliminate the wind effect, convenient dust by. Finger pressure on the ground by a tension spring control, according to crop and ground conditions, adjust the pressure by stretching the adjustment plate. Transport can be a wheel to the rear part of the tractor. The machine has the advantages of simple structure, convenient operation, reliable operation, less failure, high efficiency, good operation quality. Simple maintenance, power good matching performance. And not only can rake, and can carry out the tedding operation (can be integrated a grass strip around to spread out). This machine and the machine supporting the use of my factory production, the cutting width is formed of three grass strip around into a homogeneous grass strip, facilitate the subsequent bundling operation.
Technical parameters:
Model |
9LTS-3 |
9LTS-4 |
9LTS-4.8 |
overall dimension (m) |
2.3×3.6×1.5 |
2.8×4.9×1.5 |
3.6×5.3×1.5 |
Total weight (kg) |
150 |
295 |
345 |
working speed (km/h) |
5 |
10 |
15 |
production rate |
1 |
1.5-3.5 |
3-5 |
KW |
15 /20 |
20/27 |
40/55 |
working width (m) |
3 |
4 |
4.8 |
number of plate |
4 |
6 |
8 |
the diameter (m) |
1.46 |
1.46 |
1.46 |
number of teeth |
40 |
40 |
40 |
Article grass width (m) |
1-1.5 |
1-1.5 |
1-1.5 |
Linkage type |
Three suspension after |
Three suspension after |
Three suspension after |
