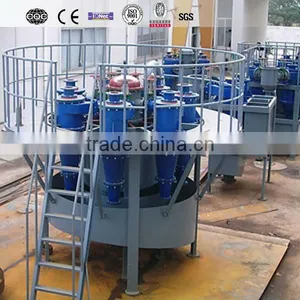

High Quality Hydrocyclone in Classifying Equipment
Features:
1.low equipment cost
2.easy mounting and dismantling
nvenient maintenance
4.small floor space required
5.low capital expenditure
6.large processing capacity
7.a large fluctuation of process.
Brief Introduction of FX hydrocyclone separator
1. Hydrocyclone is a kind of equipment used for grading the ore pulp by using centrifugal force. Lacking of motion and power unit, it needs to match with relevant slime pump. It is mainly used in ore dressing industries for grading, separating, concentrating and desliming.
2. Hydrocyclone shows the features such as low equipment cost, easy assembling and disassembling, convenient maintenance, less area covers and low cost of construction. In addition, there are some other advantages like large capacity of unit volume, treatment, fine separation size, high grading efficiency, the time and quantity of the ore pulp that staying in the cyclone is short and small. Therefore, it’s easy to operate when it stops working.
Usage of hydrocyclone :

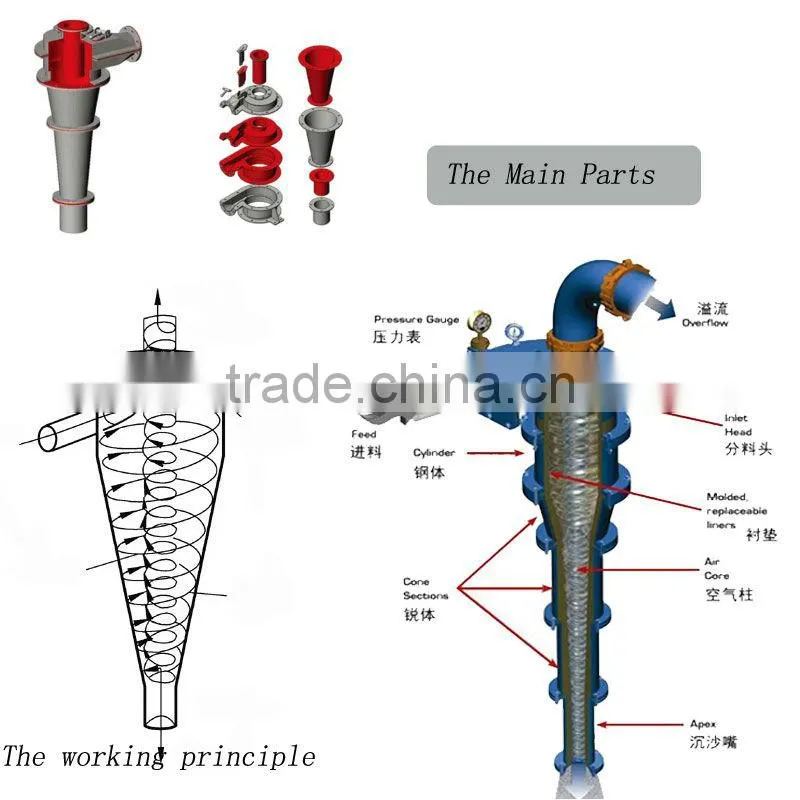

A hydrocyclone is a device that separates mixture of uneven fluids, and it is a device that achieves the separation of two or multiple phases based on the density differential of two or multiple phases with the function of centrifugal force. Due to it that the strength of the centrifugal field is higher than that of the gravitational field, the separation efficiency of the hydrocyclone is higher than that of a gravity classifying device. Therefore, spiral classifiers applied frequently in the past have been replaced by hydrocyclones.
Technical parameters
Standard |
Inner diameter (mm) |
Feeding caliber (mm) |
Overflow pipe diameter (mm) |
Sand setting caliber (mm) |
Cone angle (.) |
Maximum feeding granularity (mm) |
Feeding pressure (Mpa) |
Processing capacity (m3/h) |
Separation size (μm) |
Unit weight kg |
|
FX-660 |
660 |
187,167 |
180,200, |
80,110,150 |
20 |
16 |
0.03-0.4 |
250-360 |
74-220 |
950 |
|
FX-500 |
500 |
130,120 |
130,140,160, |
35,45,50,65, |
25 |
10 |
0.03-0.4 |
140-220 |
74-200 |
416 |
|
20 |
140-220 |
74-200 |
490 |
|
|||||||
10 |
74-150 |
556 |
|
||||||||
FX-350 |
350 |
80 |
80,90,105, |
30,35,40,45, |
25 |
6 |
0.03-0.4 |
60-105 |
50-150 |
135 |
|
20 |
0.03-0.4 |
50-150 |
155 |
|
|||||||
15 |
0.03-0.4 |
50-120 |
230 |
|
|||||||
FX-300 |
300 |
64,75 |
65,80, |
20,25,30, |
20 |
5 |
0.03-0.4 |
45-90 |
50-150 |
88 |
|
15 |
0.03-0.4 |
40-100 |
169 |
|
|||||||
FX-250 |
250 |
55,74,80 |
60,75,80, |
16,18,20,25, |
20 |
3 |
0.05-0.4 |
40-65 |
40-100 |
63 |
|
15 |
40-100 |
120 |
|
||||||||
10 |
30-100 |
123 |
|
||||||||
FX-200 |
200 |
48 |
40,50, |
16,20,24, |
20 |
2 |
0.05-0.4 |
25-40 |
40-100 |
36 |
|
15 |
30-100 |
64 |
|
||||||||
FX-150 |
150 |
36 |
30,35, |
8,10,12,14, |
20 |
1.5 |
0.05-0.4 |
11-20 |
30-74 |
22 |
|
15 |
30-74 |
20 |
|
||||||||
8 |
20-74 |
60 |
|
||||||||
FX-125 |
125 |
26 |
25,30, |
8,10,12, |
17 |
1 |
0.05-0.4 |
8-15 |
20-100 |
10 |
|
8 |
20-74 |
12 |
|
||||||||
FX-100 |
100 |
23 |
20,25, |
8,10,12, |
20 |
1 |
0.05-0.4 |
5-12 |
20-100 |
8 |
|
15 |
10-100 |
5 |
|
||||||||
8 |
10-74 |
6 |
|
||||||||
FX-75 |
75 |
13 |
15,17,20 |
6,7,8, |
15 |
0.6 |
0.1-0.5 |
2-5 |
20-74 |
4 |
|
7 |
0.1-0.5 |
5-40 |
7 |
|
|||||||
FX-50 |
50 |
9 |
11,13, |
3,6,8, |
15 |
0.3 |
0.1-0.5 |
1.5-3 |
10-74 |
2 |
|
6 |
5-30 |
2.5 |
|
||||||||
FX-25 |
25 |
5 |
5,6, |
2,3,4,5 |
5 |
0.2 |
0.1-0.5 |
0.3-0.1 |
3-10 |
0.8 |
|
3 |
0.3-0.1 |
2-10 |
1.4 |
|
|||||||
FX-10 |
10 |
2 |
2,3,4 |
12 |
4 |
0.1 |
0.1-0.1 |
0.05-0.1 |
1-5 |
|
|
What do we do:
Our Certificate:
Customers' Notes for Selection
1.The non-standard hydrocyclone could be carried out according to the user’s requirements.
2.Normally, if there is no special requirement, the material of hydrocyclone is gray casting.
3. Optional polyurethane, steel shell lining polyurethane, abrasive rubber, KM composite material, silicon carbide, high alumina ceramic, high chromium alloy and other materials. Please note it in your order.
What Services we have :
Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing th e most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
....
